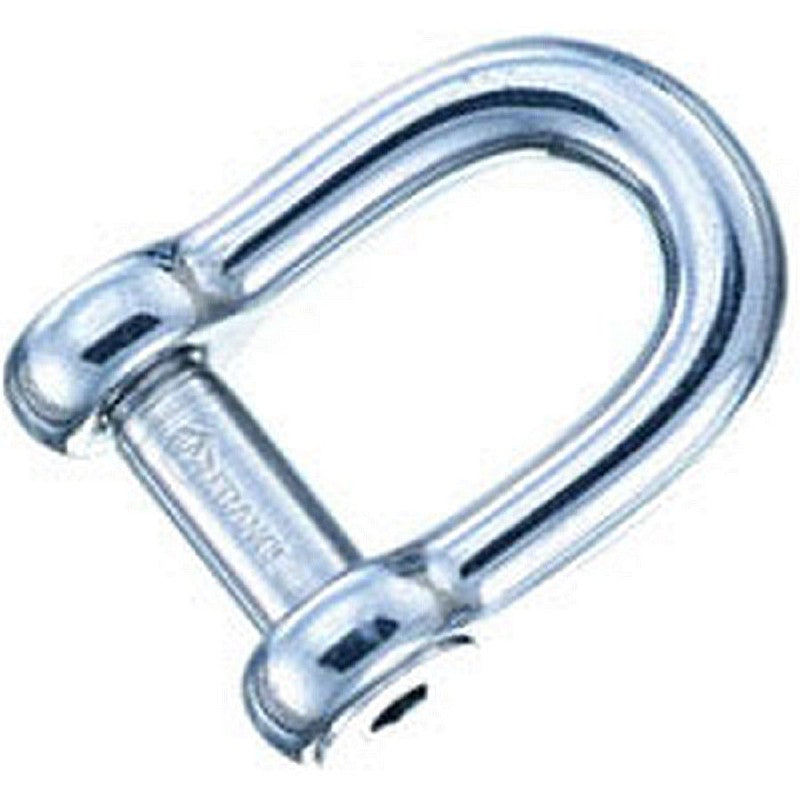

Wichard Forged CE Stainless Steel Allen Pin D Shackle - 8mm

Forged CE stainless steel Allen pin D shackle. The head of the pin does not stick out from the shackle's body, thus eliminating any risk of snagging. Hot dropped forged from a single piece of stainless steel, adding strength and consistency of manufacture for total security and reliability. The technical characteristics of every Shackle is closely controlled and tested before, during and after the manufacturing process. Manufactured from AISI 316 stainless offering excellent corrosion resistance, especially in marine environments. CE marked in accordance with the Machines Directive 2006/42, these Wichard products can be used as lifting accessories. Each product displays the following information: Working Load Limit WLL = 5:1 safety factor of the break load,CE marking,Product origin,Manufacturer’s logo. Material and conformity certificates available on request. Part Pin Dia. mm A mm Bmm WorkKg BLKg WLLKg.5:1 WD ~1304 8 26 16 960 2700 540 Load definitions: Working Load WL = Static load at which the product will still function without excessive friction or wear or permanent deformation of components.Breaking Load BL = Static load at which a major failure of one or more structural components or complete destruction of the product.Working Load Limit WLL = 5:1 safety factor of the breaking load, used for industrial applications.
