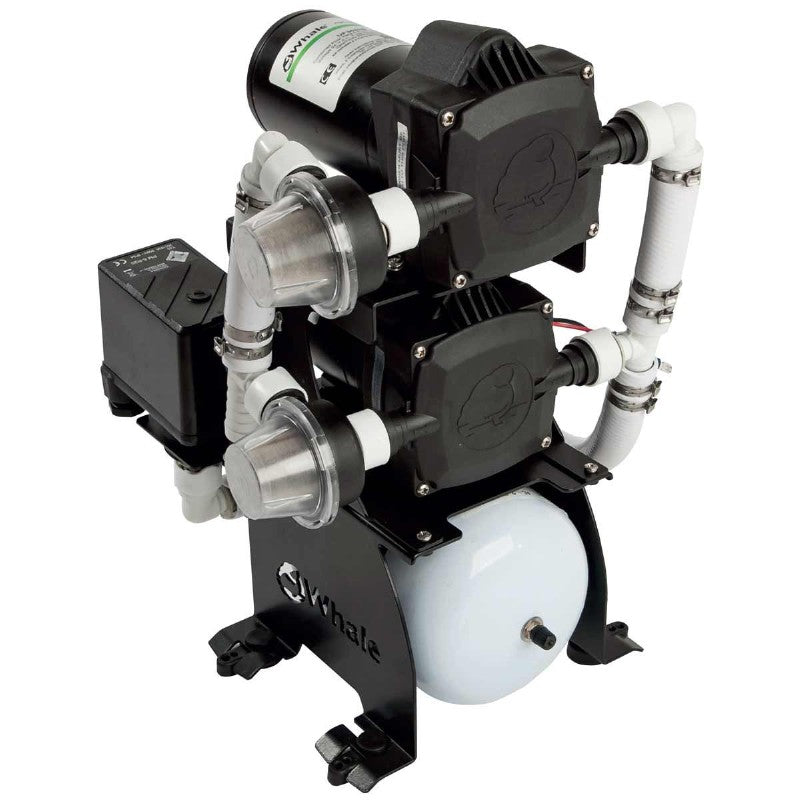

Whale UF3625B Double Stack Freshwater Pump Kit 24V / 32 LPM / 45 PSI
Whale high capacity freshwater pump kit UF3625B efficiently delivers smooth
water flow in boats with up to 8 outlets, on 24V DC systems.
Installation of your drinking water and shower system is quick and easy with a
pre~assembled kit, including: 2 integrated high performance pumps, 2 pressure
switches, 2 inlet strainers, a 2 litre accumulator tank, mounting bracket and plumbing connections.
The Whale double stack freshwater kit provides efficient pump control, uses system pressure
to control pump activation and prevent pump cycling. In addition, when only a low flow rate
is required a single pump activates and when a high flow rate is necessary both pumps will activate.
Robust, high industrial grade pressure switches are located externally on the assembly and
ignition protected, with no requirement for relays.
Whale UF3625B features a unique mounting bracket to ensure a compact footprint and
vibration reducing feet for great noise reduction.
The drinking water pump kit is suitable to be fitted to new or pre ~existing systems.
Capacity Description Accumulator Tank: 2 Litres
Cut In Pressure Pump ~1: 2 bar 30 psi; Pump ~2: 1.4 bar 20 psi
Cut Out Pressure Description Pump ~1: 45 PSI / 3 Bar; Pump ~2: 30 PSI / 2 Bar
Flow Rate Description 32 Litres Per Minute
Material Contact with Liquid: Glass Filled Polypropylene, Santoprene, Nitrile, Butyl, Stainless Steel and Brass
Supplied With Pre ~assembled Frame, 2x Freshwater Pressure Pumps, 2x Whale Strainers, 2L Accumulator Tank, 2x External Pressure Switches and Pre~assembled Plumbing
Hose Tail Size 19mm / 3/4"
Connections Description Up To 8 Outlets
Maximum Suction Lift 3 Metres
Pressure Rating Factory Pre ~Charge: 2.2 bar 32 psi
Brand Whale
Model UF3625B
Voltage Description 24V DC
Fuse Recommended: 8A
Approvals EMC 2014/30/EU, CE Mark, 2013/53/EU Recreational Craft Directive, ISO 10133:2012 Extra ~low voltage DC Installation, EN55014 ~1:2006 EMC Emissions, EN55014~2:1997+A2:2008 EMC Immunity, EN28846 :1993 Ignition Protection, ABYC~H23 Installation of Potable Water
Warranty 2 Years
