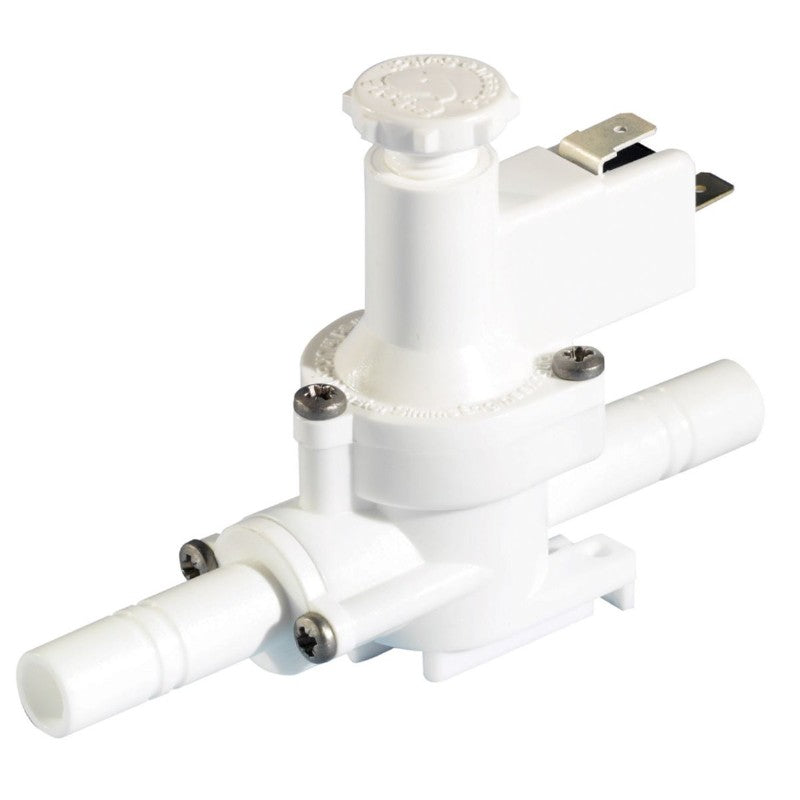

Whale Marine Inline Pressure Switch WU7207 Motorhome Caravan Boat RV

Switches the pump on / off by detecting the change in pressure in the water system. Recommended for use with Whale Submersible and In Line pumps.
Adjustable cut in/cut out pressure.
Fits in line.
Can be used in conjunction with Whale Elegance, Elite and TB faucets.
One switch operates multi outlet system.
Prevents pump cycling on and off.
Enables water system to be converted to an efficient pressure system.
Weight: 64g
Hose bore: 13mm
Current rating: 10 Amps, 12V and 24V systems
Materials: Acetal, nitrile rubber, stainless steel, plated spring steel, phosphor bronze

Model Specifications
Model Pressure Switch
Product Code WU7207
Weight 0.063 kg 0.14 lbs
Hose Connections Suitable for Whale Quick Connect 12 mm and 10 mm 3/8 inch Flexible Hose
Current Rating 10 amp: 12 V d.c. systems
5 amp: 24 V d.c. systems
Maximum Pressure 2 bar 30 psi
Materials Body: Acetal, Seals and Valves: Nitrile, EPDM
Spring: Phosphor Bronze, Fasteners: Stainless Steel
