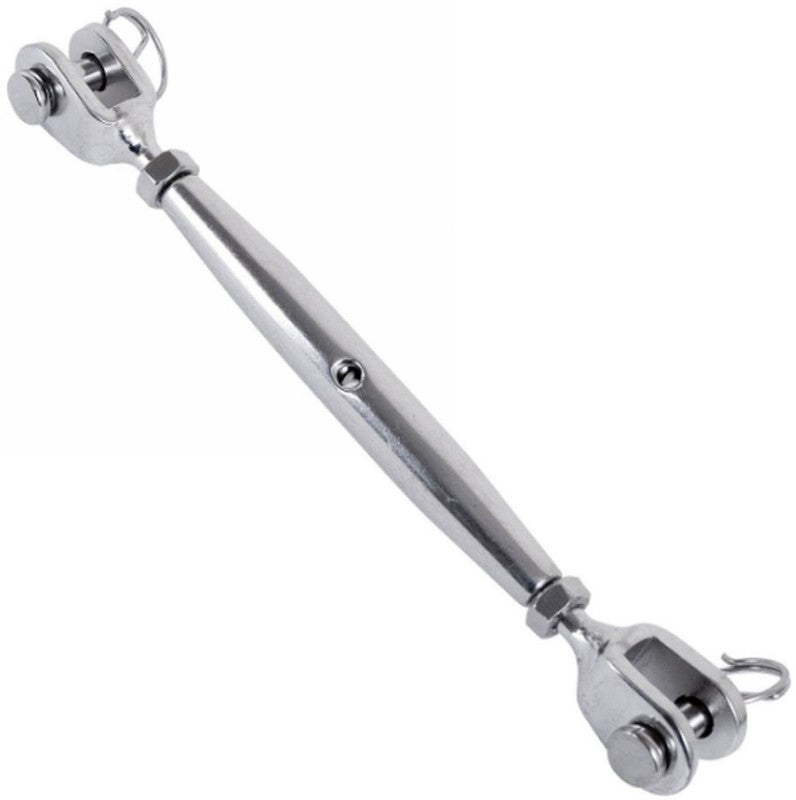

Waveline Stainless Steel Fork and Fork Rigging Screw M8

Stainless steel AISI 316 ~ Closed body Fork + Fork.
Available in 4 sizes:
Specifications mm
M6 ~ Closed: 143mm bearing point to bearing point, Jaws: 7.5, B/L kg:1500, Pin dia: 6
M8 ~ Closed: 190mm bearing point to bearing point, Jaws: 11, Open: 280mm B/L kg: 3000, Pin dia: 8
M10 ~ Closed: 220mm bearing point to bearing point, Jaws: 13, Open: 340mm B/L kg: 4300, Pin dia: 9
M12 ~ Closed: 240mm bearing point to bearing point, Jaws: 14, B/L kg: 6500, Pin dia: 12
