Waveline Outboard Engine Bracket Stainless Steel with Plastic Pad 50Kg

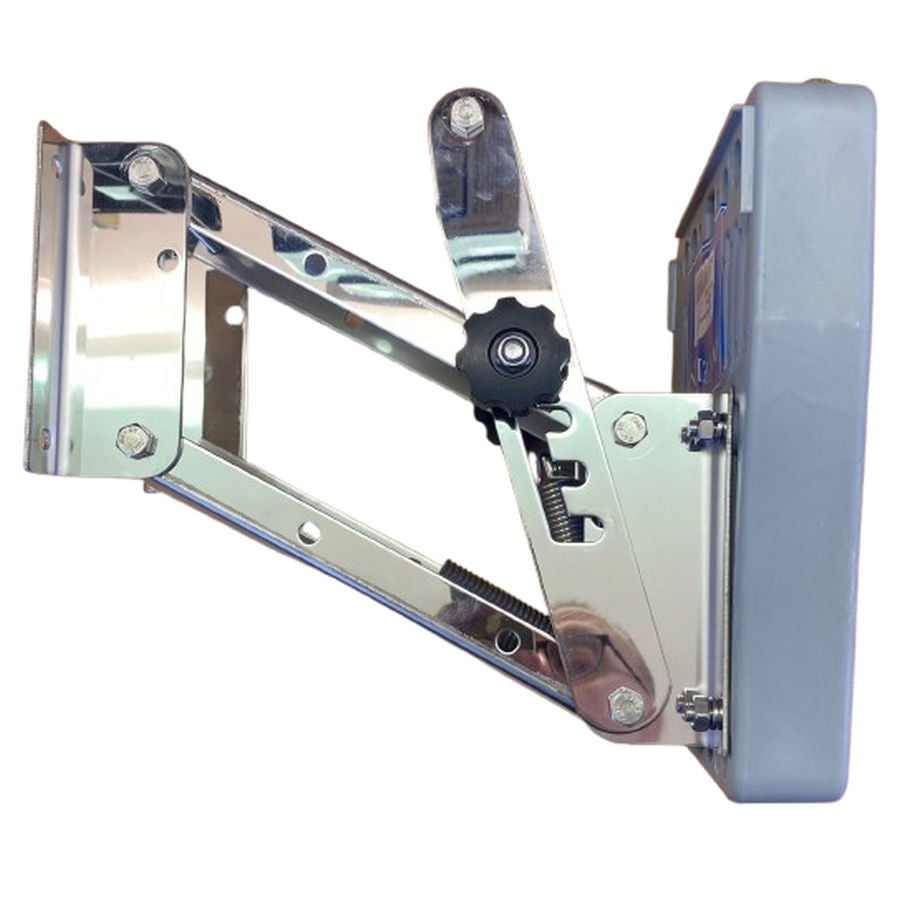

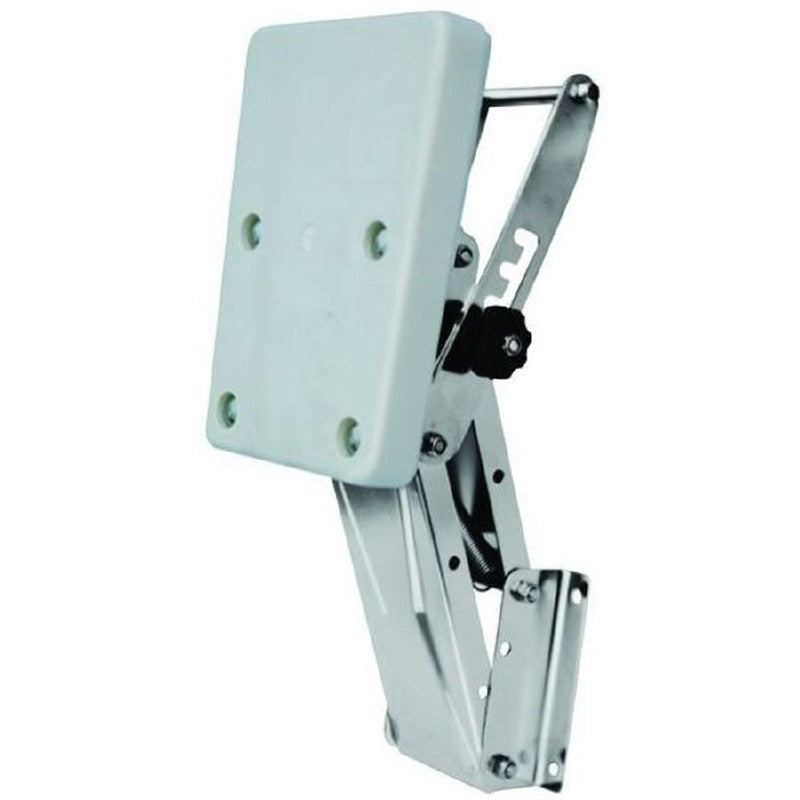

Stainless Steel Outboard Motor Lifting Bracket with plastic Pad
An excellent value 316 stainless steel body motor bracket with plastic pad; Designed for motors up to 50Kg Max weight
Simple installation with just 4 bolts not included.

Weight of engine must not be exceed of 50kgs

This bracket mounts on a vertical transom and allows a small outboard motor to be lowered into the water for propulsion.

Height of pad 260mm
Width top of pad 190mm
Thickness is 36mm
Bracket fixing Pad Size: 190MM L x 270MM W, at top of pad
Hole Centres: 120mm wide
Hole Centres Length: 110mm
4 Holes for fixing ~ bolts not supplied

When bracket fully extended, it projects 31cm from fixing plate to outer edge of pad.
