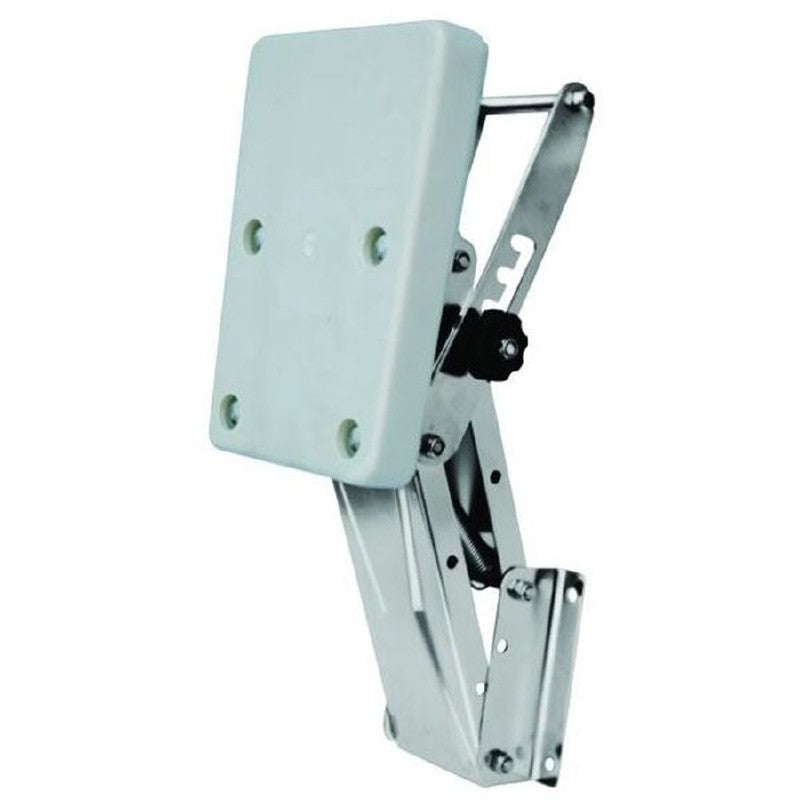

Waveline Outboard Engine Bracket Stainless Steel with Plastic Pad 30Kg

Waveline Outboard Engine Bracket Stainless Steel with Plastic Pad

For engines up to 30Kg

Spring loaded and adjustable with 5 vertical positions.
Pad Height: 265mm approx
Pad Width: 220mm tapering to 160mm

Stainless transom mount 140mm x 110mm fixed with 4x M8 fixing bolts ~ not included

140mm x 110mm stainless steel bearing surface on the transom.
Fixing hole centres
Horizontal 85mm approx
Vertical 110mm approx 110mm

Distance from top of pad to botton of transom plate: 420mm
Travel when in lowest position: 270mm
