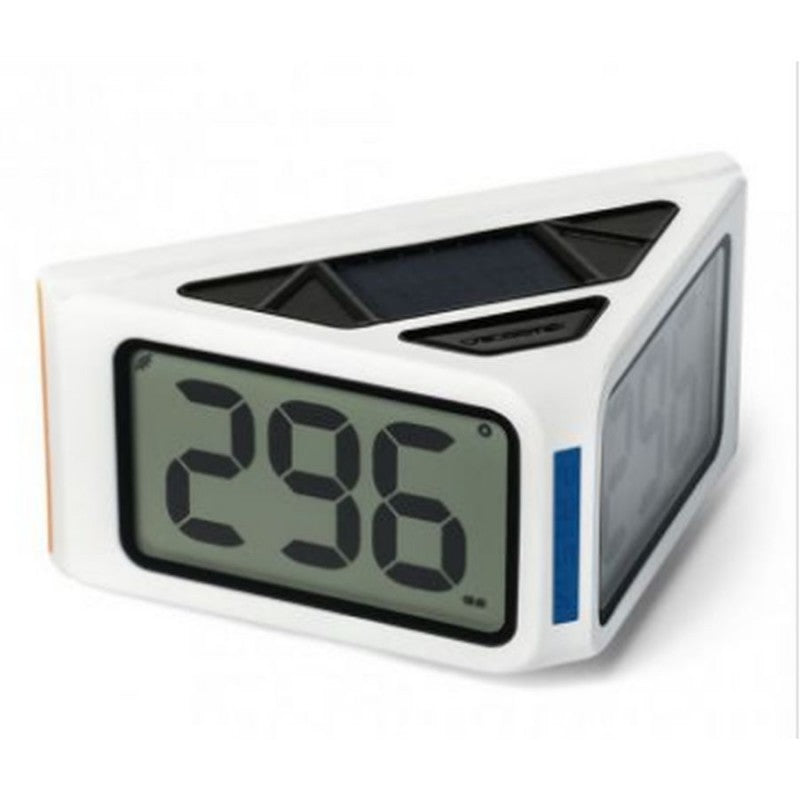

Velocitek Prism Digital Racing Compass
The Prism is a stripped down racing compass.
Class legal anywhere an electronic compass is legal, the Prism provides superior accuracy, and a massive display all in an ultralight, compact package.
LIGHTWEIGHT
At a mere 137 g 4.8 oz it is the world's lightest racing compass.
MASSIVE DIGITS
The Prism's sunlight readable, high contrast LCD screen features 29.8mm 1.1 inch tall digits in a font that's optimised for readability. This means that if your boat's under 40ft long you’ ll be able to mount the Prism on your mast and read it easily from anywhere in the cockpit, even if you don't have perfect vision.
ULTRA~WIDE VIEWING ANGLE
With 250 degrees of visibility the Prism's LCD's can be easily read from the helm to the trapeze wire.
FLEXIBLE and SECURE MOUNTING
The Prism mounts to your boat via the slide ~in cradle. The Prism Cradle can be mounted to a wide array of brackets, directly to a mast using the centreline holes and the Mast Bracket Hardware Kit, or directly to a bulkhead. We even included recesses in the cradle in case you need to lash your compass in place.
Features
3~AXIS SOLID STATE COMPASS
The Prism uses a high precision 3~axis solid state magnetometer designed for aerospace applications to provide superior accuracy and responsiveness.
SOLAR POWERED
The Prism is battery powered with solar charging.
WATERPROOF
The Prism is designed to withstand continuous immersion at 3m 9 ft. Every single unit that comes off the assembly line is pressure~tested before it ships.
What's Included:
Velocitek Prism
Mounting cradle
Quick Start Guide
EVA storage case

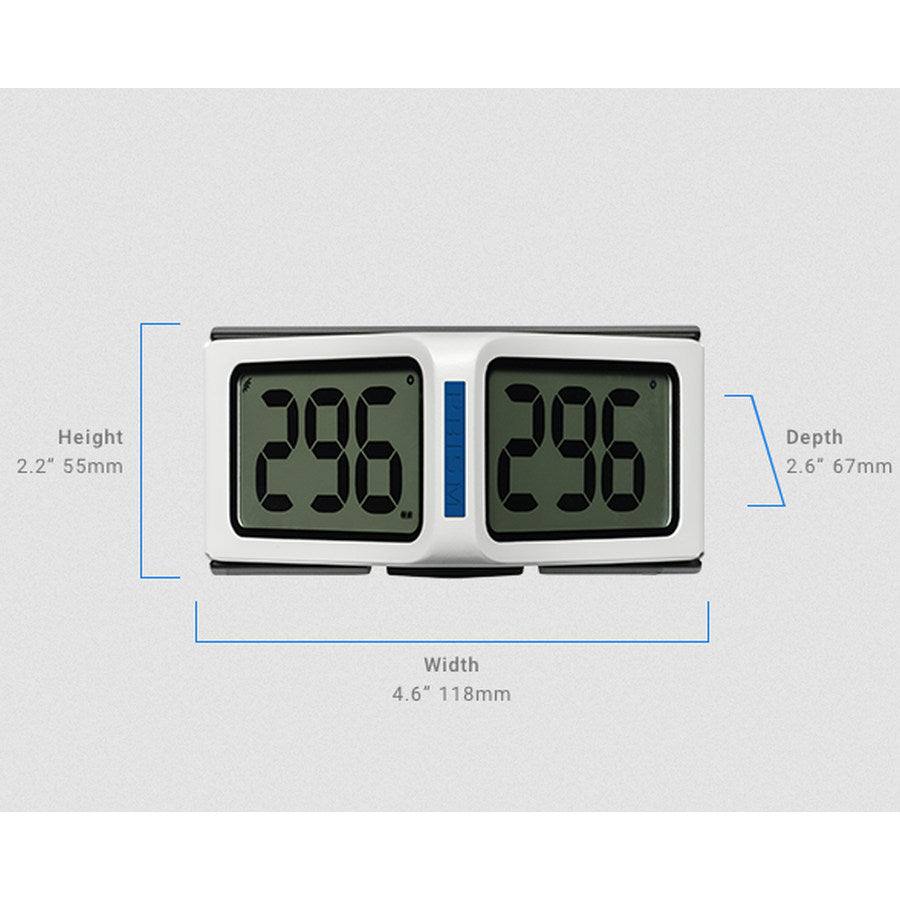

Weight 4.8oz 137 g
Height 2.2 inch 55mm
Width 4.6 inch 118mm
Depth 2.6 inch 67mm
Suitability
CLASS LEGAL
The Prism uses only magnetic input as its heading reference, has no memory, no user inputs, and performs no arithmetic functions. It's legal in all classes that allow electronic compasses.
Heading Repeatability: + 0.5 degrees
Viewing Angles:250 degrees of visibility the Prism's LCD's can be easily read from the helm to the trapeze wire
Display Update Rate: 4Hz four times a second
Water Resistance: Complete immersion for 30 min. at 3m 10ft IPX8
Display: 29.8mm 1.1 inches digit height 250 degrees viewing cone
Battery: 600mA
Warranty: Two years
Class legal anywhere an electronic compass is legal, the Prism provides superior accuracy, and a massive display all in an ultralight, compact package.
LIGHTWEIGHT
At a mere 137 g 4.8 oz it is the world's lightest racing compass.
MASSIVE DIGITS
The Prism's sunlight readable, high contrast LCD screen features 29.8mm 1.1 inch tall digits in a font that's optimised for readability. This means that if your boat's under 40ft long you’ ll be able to mount the Prism on your mast and read it easily from anywhere in the cockpit, even if you don't have perfect vision.
ULTRA~WIDE VIEWING ANGLE
With 250 degrees of visibility the Prism's LCD's can be easily read from the helm to the trapeze wire.
FLEXIBLE and SECURE MOUNTING
The Prism mounts to your boat via the slide ~in cradle. The Prism Cradle can be mounted to a wide array of brackets, directly to a mast using the centreline holes and the Mast Bracket Hardware Kit, or directly to a bulkhead. We even included recesses in the cradle in case you need to lash your compass in place.
Features
3~AXIS SOLID STATE COMPASS
The Prism uses a high precision 3~axis solid state magnetometer designed for aerospace applications to provide superior accuracy and responsiveness.
SOLAR POWERED
The Prism is battery powered with solar charging.
WATERPROOF
The Prism is designed to withstand continuous immersion at 3m 9 ft. Every single unit that comes off the assembly line is pressure~tested before it ships.
What's Included:
Velocitek Prism
Mounting cradle
Quick Start Guide
EVA storage case
Weight 4.8oz 137 g
Height 2.2 inch 55mm
Width 4.6 inch 118mm
Depth 2.6 inch 67mm
Suitability
CLASS LEGAL
The Prism uses only magnetic input as its heading reference, has no memory, no user inputs, and performs no arithmetic functions. It's legal in all classes that allow electronic compasses.
Heading Repeatability: + 0.5 degrees
Viewing Angles:250 degrees of visibility the Prism's LCD's can be easily read from the helm to the trapeze wire
Display Update Rate: 4Hz four times a second
Water Resistance: Complete immersion for 30 min. at 3m 10ft IPX8
Display: 29.8mm 1.1 inches digit height 250 degrees viewing cone
Battery: 600mA
Warranty: Two years
