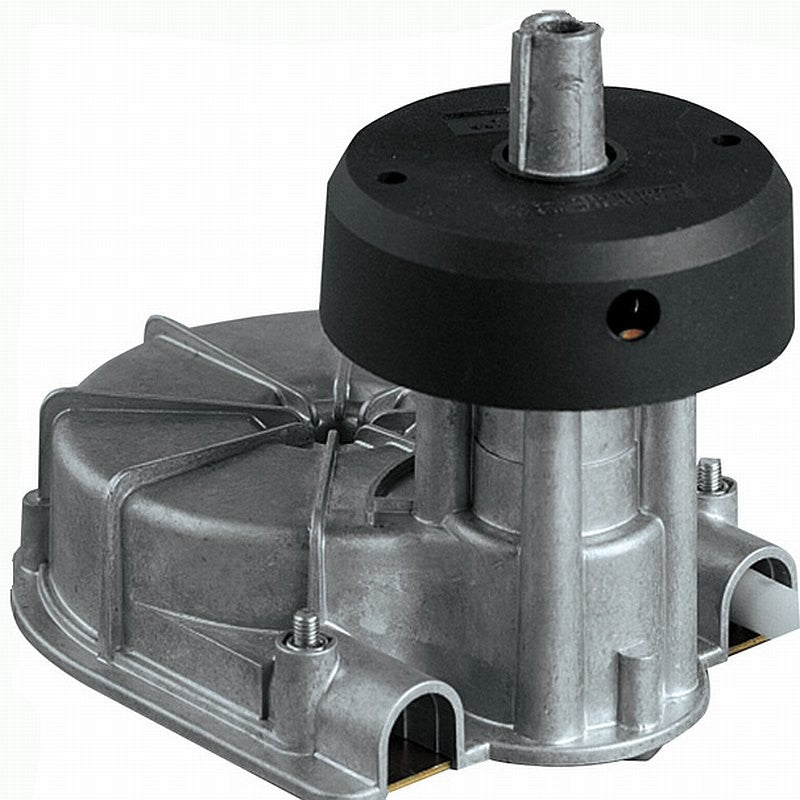

Ultraflex T85 Rotary Steering Helm Black
Features & Technical Specifications
All stainless steel cable output ends.
Corrosion resistant materials.
Particularly suitable where clearance is limited.
Lock-to-lock steering wheel turns: approximately 3
Stroke 228mm (9").
Maximum allowable steering wheel diameter: 406mm (16").
Minimum steering cable bend radius: 200mm (7.9")
Minimal feedback.
Compact for mounting.
T85 steering system should not be used on boats equipped with engines that
exceed the maximum horsepower rating of the boat.
Exceeds EN28848 and ABYC P17 safety standards.
| Material | Corrosion resistant material and the cable output ends are all stainless steel |
| Supplied With | Bezel |
| Suitable For | 6123** SC-16 or M66 Cable |
| Replaces | Alternative to the Morse D290 helm which has been discontinued from our range. |
| Steering Wheel Turns | 3 Lock to Lock |
| Stroke | 228mm (9") |
| Taper | 3/4" |
| Brand | Ultraflex |
| Application | Maximum boat length: 9 Meters (Outboard) 10.5 Meters (Inboard/Sterndrive) |
| Model | T85 |
| Angle | Bezel: 90 Degrees |
Ultraflex T85 Rotary Steering Helm Black
Our price£99.95
RRP£124.22
