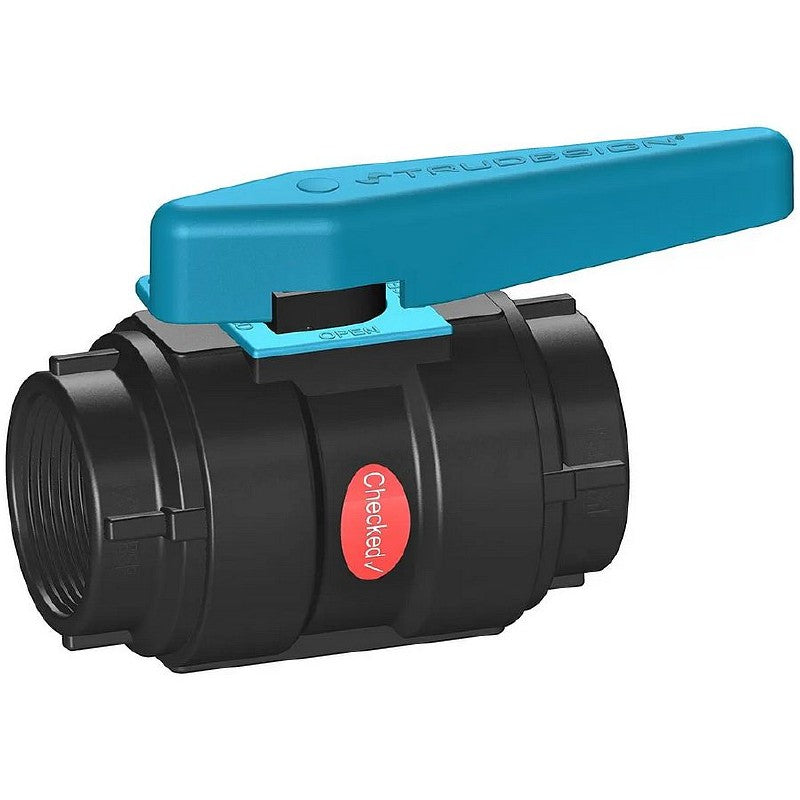

TruDesign Composite Manual Ball Valve 1 1/4 Inch 90240

Ball Valves ~ Seacocks
TruDesign Ball Valves control thru ~hull inlet and outlet requirements, above and below the water line. They are
moulded in a lightweight glassreinforced Nylon composite material to provide maximum strength.
The ball and seal ring are moulded in a PTFE filled polymer for lubricated, smooth continuous ease of operation.
This material resists marine growth, such as barnacles, preventing them from seizing up the valve.
Features:
Lightweight, corrosion resistant and safe from electrolysis
Individually leak and pressure tested during manufacture
Burst ~rated to 750 PSI 5,170 kPa
Can be locked to comply with toilet waste outlet standards
Parallel BSP threads
Spanners available for hard ~to ~getto installations
OPEN/CLOSED positions marked for easy identification
Frost ~friendly and won’t split like metallic ball valves can when frozen
Removable handles to assist installation ~ fastened with a 316 Stainless Steel screw
Available in position ~monitored version
