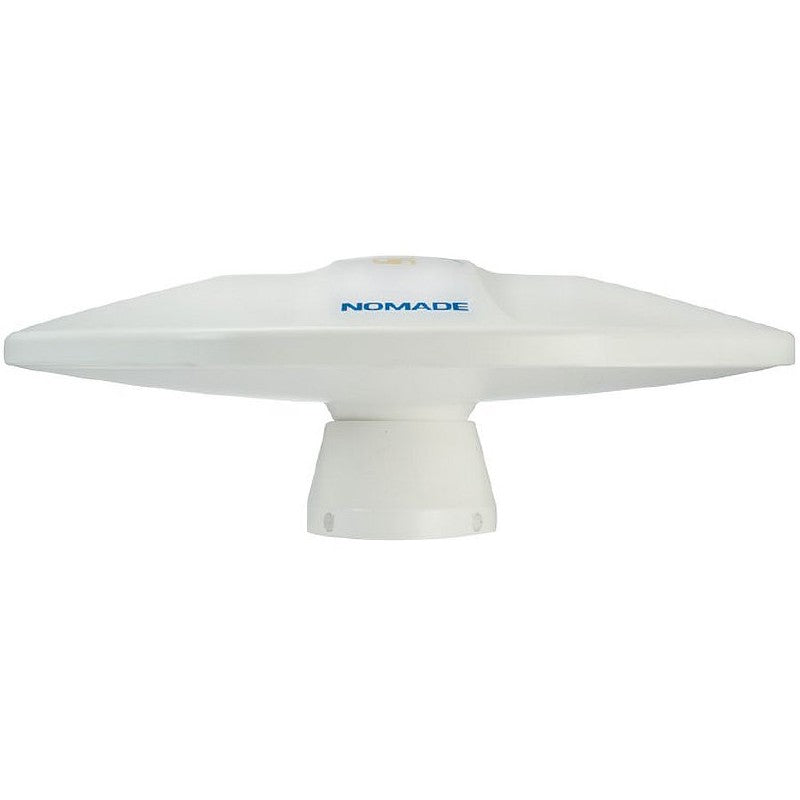

Supergain Nomade Digital TV Antenna 12v

The omnidirectional SUPERGAIN NOMADE DVB ~T antenna is suitable for boats and vehicles of all kinds, thanks to its compact design and low weight.
An integrated amplifier provides a gain of 24.5 dB. The adjustable antenna base can be screwed or glued and therefore can also be used as a cable
duct under deck or in a vehicle's interior. For uneven surfaces, an inclination compensation of +/ ~ 15° is possible.
The amplifier is located in the antenna's housing and is supplied by a 12 ~volt supply voltage via a 5 m coax cable.
The compact dimensions and flat design of the NOMADE make the antenna very streamlined, while also allowing it to be used as an indoor antenna.
Suitable for receiving terrestrially broadcast DVB ~T1 / 2, TNT and HDTV signals.
Scope of delivery: Antenna with adjustable base and 5 m coax cable, V9114PI feed ~through switch including a 250mA fuse, 1.5m TV connection cable and mounting screws.

Antenna
Dimensions: Antenna with base: Ø 245 mm x 80 mm height
Weight: 200 g 7 oz
Material: Acrylester ~styrene ~acrylonitrile ASA

Electrical properties
Receiving angle: Omnidirectional, 360°
Polarization: Horizontal
Frequency range 170/890 MHz
Average noise: 24.5 dB
Noise factor: 1.7 dB
Impedance: 75 Ohm
Operating voltage: 12 V power supply
Current consumption: Approx. 25 mA

Antenna connection cable
Coax cable 3C ~2V, 75 Ohm, white, 5 mm Ø, length 5 m
Ready for connection with F connector
Max. Ø F connector: 13 mm

TV connection cable
Coax cable 3C ~2V, 75 Ohm, white, 5 mm Ø, length 1.5 m
Ready for connection with F ~ and TV ~ IEC ~male connectors
Max. plug ~Ø: F connector 13 mm / IEC connector 15 mm

Inlet switch
Dimensions L x W x H: approx. 70 x 45 x 17 mm
F socket ANTENNA IN
F socket TV OUT
12 V DC ~ two individual wires, length approx. 25 cm RED = POS12 V including fuse, BLACK = NEG
Grounding clamp on housing max. cable cross section: 10 mm²
Fuse: 250 mA, 5 x 20 mm
Mounting option: a 4 mm hole

Delivery contents
Antenna with foot and 5 m coax cable
Inlet switch
TV connection cable: 1.5 m
4x countersunk head screws: 3.5 x 16 mm
4x countersunk head screws: 2.9 x 9.5 mm

Mounting instructions
The antenna base can be glued and / or screwed in place.
The 5 m coax cable runs through the antenna base.
If required, the TV connection cable can be extended by standard TV antenna cables IEC / IEC connector.
If required, the 5 m coaxial cable can be extended. Low ~loss coax cables, F connectors and plugs can be found under accessories.

Electrical connection
First connect the 5 m long antenna cable with the inlet switch, ANTENNA IN socket.
Next, connect the 1.5 m long TV connection cable to the inlet switch, TV OUT jack.
Connect the inlet switch to a 12 volt power source after connecting the coax cables.
The inlet switch has a housing terminal. This can be connected to the vehicle's body.
Be sure to follow the assembly sequence and avoid reverse polarity!
Failure to observe this can result in short circuiting, and in the worst case, total failure of the inlet switch.
Do not loosen / twist the screw connection of the DC voltage input!
The cables could break off of the circuit board, which can lead to irreparable damage.
Do not remove the plugs from the coaxial cables!
Failure to observe the above points will result in the loss of your warranty.
