Supergain Black Swan VHF Marine Antenna with Wind Indicator
VHF MARINE ANTENNA 3 DB 850MM LONG INDICATOR WITH THE WIND, MASTHEAD BRACKET AND COAXIAL CABLE RG58C / U OF 20M
Supergain is a new range of antennas made in Italy developed for all types of boats, both motor and sail, and mobile vehicle such as campers, trucks and buses.
Founded in 2012, Supergain want to meet the needs of those who require satellite TV and VHF marine, and others in the future, high performance and low prices.
Supergain antennas are characterized by a new design, Italian technology and innovative materials that allow you to bring to market new products with the best quality / price ratio.

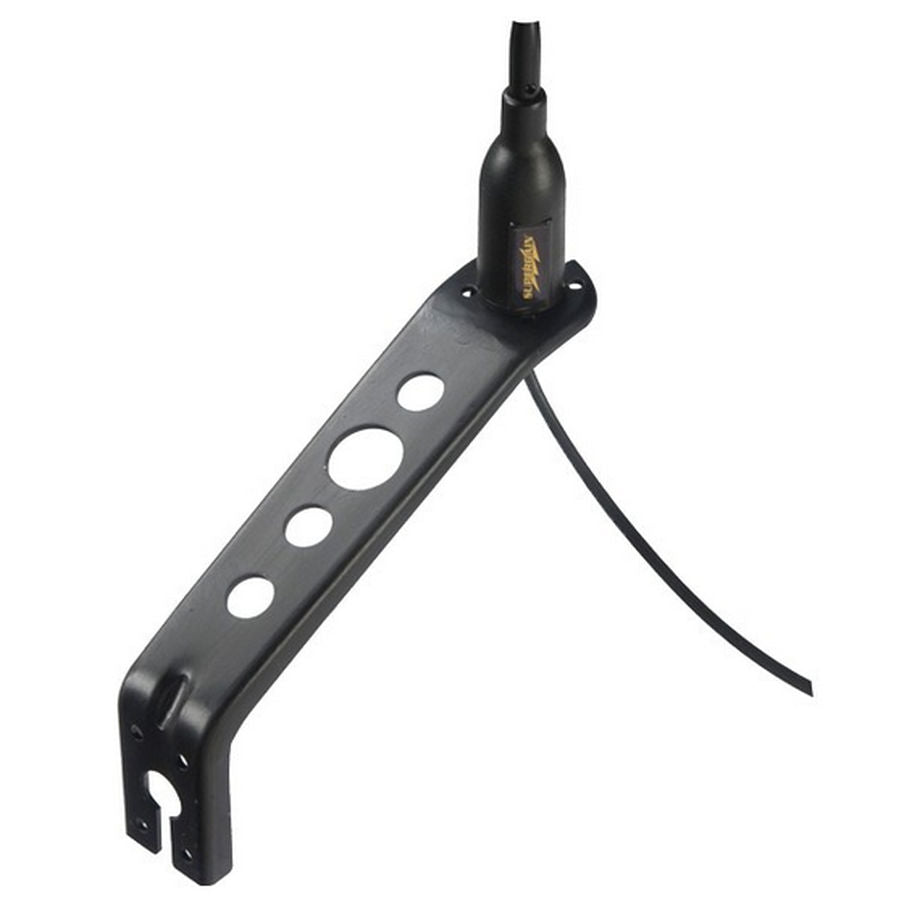

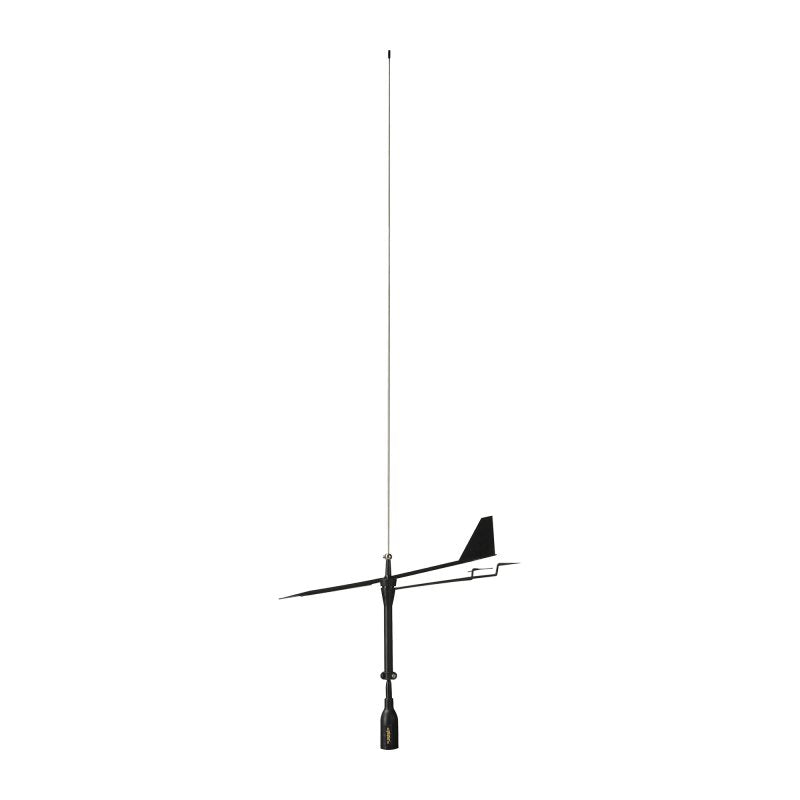

black swan is a marine VHF antenna with a gain of 3dB and has a wind indicator, specifically designed to be installed on the shafts of sailboats with the aim to combine the communication and information. Long only 850 mm / 33 in, it is very easy to install away from other devices thanks to the offset bracket supplied.
using the stylus black stainless steel flexible and integrated coaxial cable 20m RG58C / U, is the choice better to have a good performance VHF with, moreover, the wind gauge integrated in the upper part of the upright.
SPECIFICATIONS
FREQUENCY RANGE
156/162 MHz
AVERAGE GAIN 3 dB
IMPEDANCE 50 ohms
POLARIZATION Vertical
SWR 1.4 at 156.8 MHz
MAX INPUT POWER
50 W
DC GROUND Reads 10K ohms
ANTENNA LENGTH 850 mm 33 in
ANTENNA WEIGHT 345g 12.2oz
TERMINATION Cable
Please note: Supergain antennae do not include a PL259 Connector, see related products below to add to your order.
