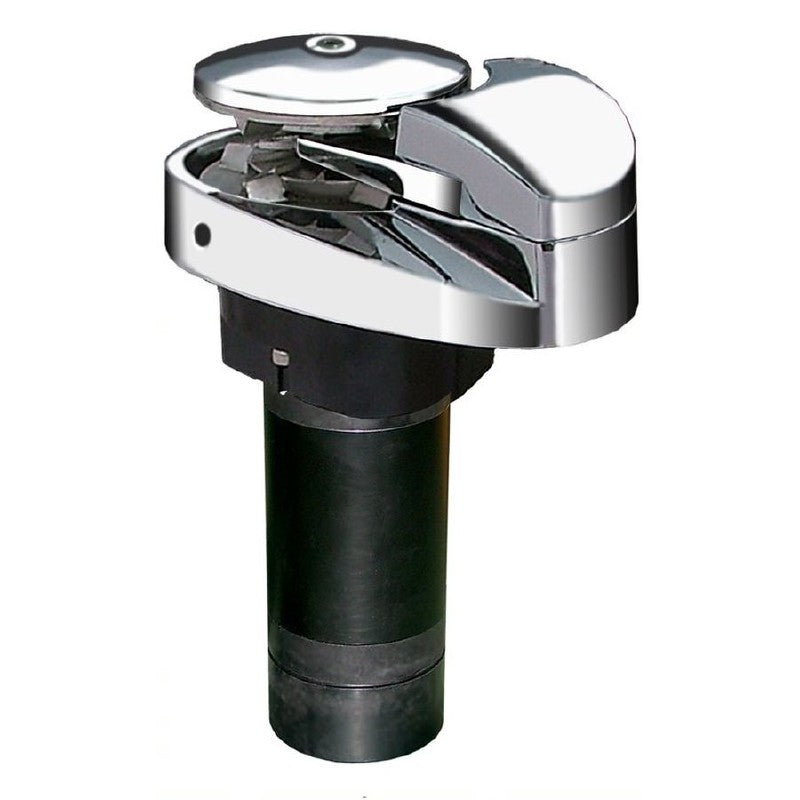

South Pacific VA600 Vertical Windlass Kit 700W 8mm
Vertical Windlass Kits with Aluminium Base ~ VA Series
The VA Series of one piece vertical windlasses come in two models with a combination of gypsy. The 1000W, VA1000 with an 8mm gypsy and the
700W, VA600 with either a 6mm or 8mm gypsy.
The VA series are made of marinegrade aluminium alloy with a powder coated finish to ensure corrosion resistance.
The metal gearbox, heavy duty DC motor and base have been designed in one providing a robust unit and enabling easier installation. The one
piece vertical unit also eliminates the need for additional gears.
Windlass Kit
1.Windlass VA Series
2. Direct Control Switch SW ~200 no solenoid required
3. Circuit Breaker CB ~001 ~30
4. Fixing Bolts
5. Manual and Template
Features:
• Stainless steel gypsy takes both rope and chain
• Efficient spur gears, low current draw, high output power
• A torque limiter to deliver smoother operation and greater reliability.
• Efficient heavy duty DC motor produces less heat
• Manual retrieval capable with a handle bar included
• Compact one ~piece unit for easy installation
Specifications
Power:700W
Operating Voltage : 12V DC only
Max. Working Load : 300kg
Typical Working Load : 55kg
Retrieval Speed : 20m/min
Pay ~Out Speed : 25m/min
Current Draw Typical : 22 A
Gear Type : spur gear
Weight : 6.5kg / 7kg
Dimension above deck: 195mm x
130mm x 140mm
Gypsy 8mm chain which suits rope of 12mm ~14mm
Suit Deck Thickness : 3mm ~60mm
Download fixing template here:
https://seamarknunn.com/downloads/south ~pacific/VAseries%20template.pdf
The VA Series of one piece vertical windlasses come in two models with a combination of gypsy. The 1000W, VA1000 with an 8mm gypsy and the
700W, VA600 with either a 6mm or 8mm gypsy.
The VA series are made of marinegrade aluminium alloy with a powder coated finish to ensure corrosion resistance.
The metal gearbox, heavy duty DC motor and base have been designed in one providing a robust unit and enabling easier installation. The one
piece vertical unit also eliminates the need for additional gears.
Windlass Kit
1.Windlass VA Series
2. Direct Control Switch SW ~200 no solenoid required
3. Circuit Breaker CB ~001 ~30
4. Fixing Bolts
5. Manual and Template
Features:
• Stainless steel gypsy takes both rope and chain
• Efficient spur gears, low current draw, high output power
• A torque limiter to deliver smoother operation and greater reliability.
• Efficient heavy duty DC motor produces less heat
• Manual retrieval capable with a handle bar included
• Compact one ~piece unit for easy installation
Specifications
Power:700W
Operating Voltage : 12V DC only
Max. Working Load : 300kg
Typical Working Load : 55kg
Retrieval Speed : 20m/min
Pay ~Out Speed : 25m/min
Current Draw Typical : 22 A
Gear Type : spur gear
Weight : 6.5kg / 7kg
Dimension above deck: 195mm x
130mm x 140mm
Gypsy 8mm chain which suits rope of 12mm ~14mm
Suit Deck Thickness : 3mm ~60mm
Download fixing template here:
https://seamarknunn.com/downloads/south ~pacific/VAseries%20template.pdf
South Pacific VA600 Vertical Windlass Kit 700W 8mm
Our price£470.44
RRP£563.40
