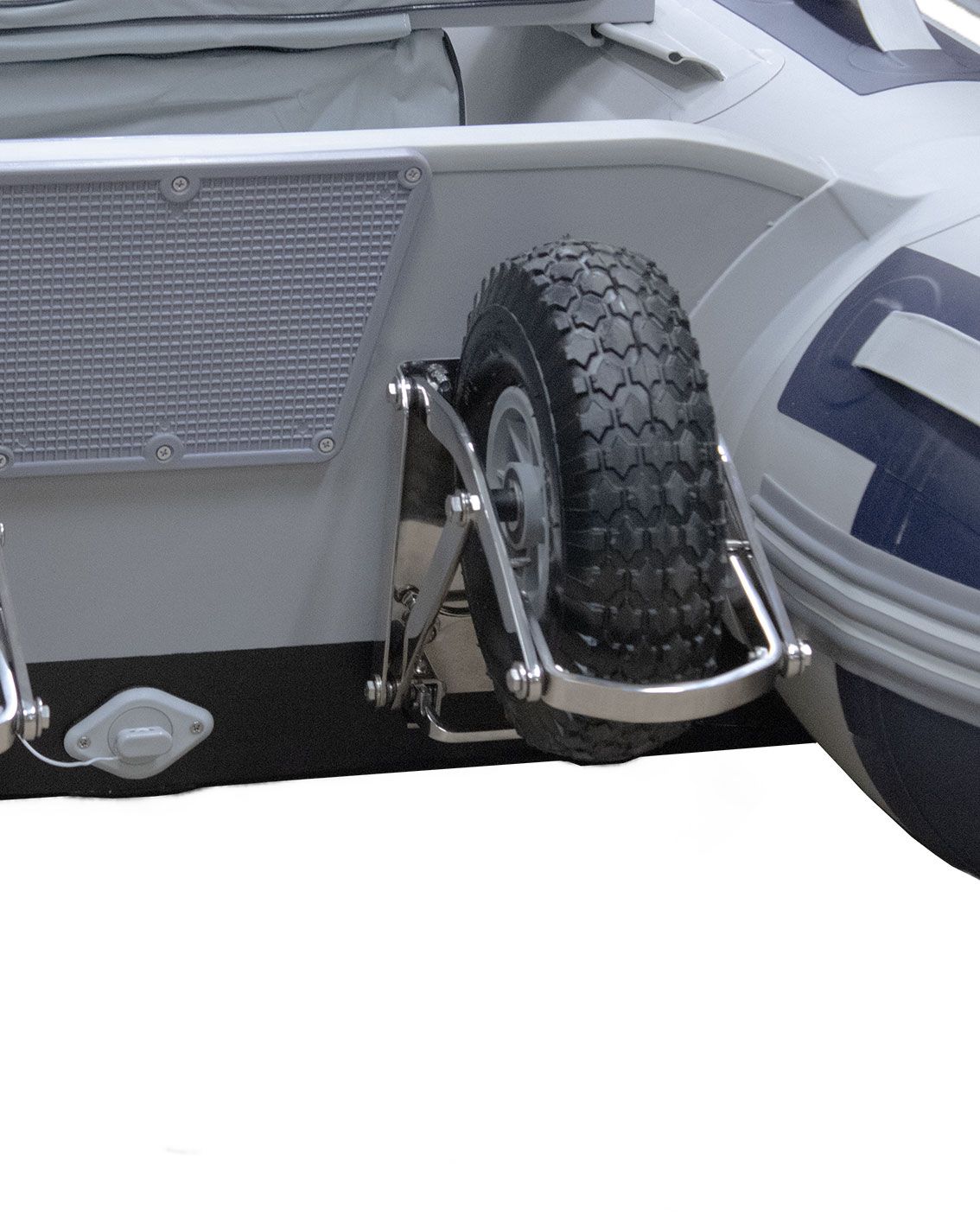

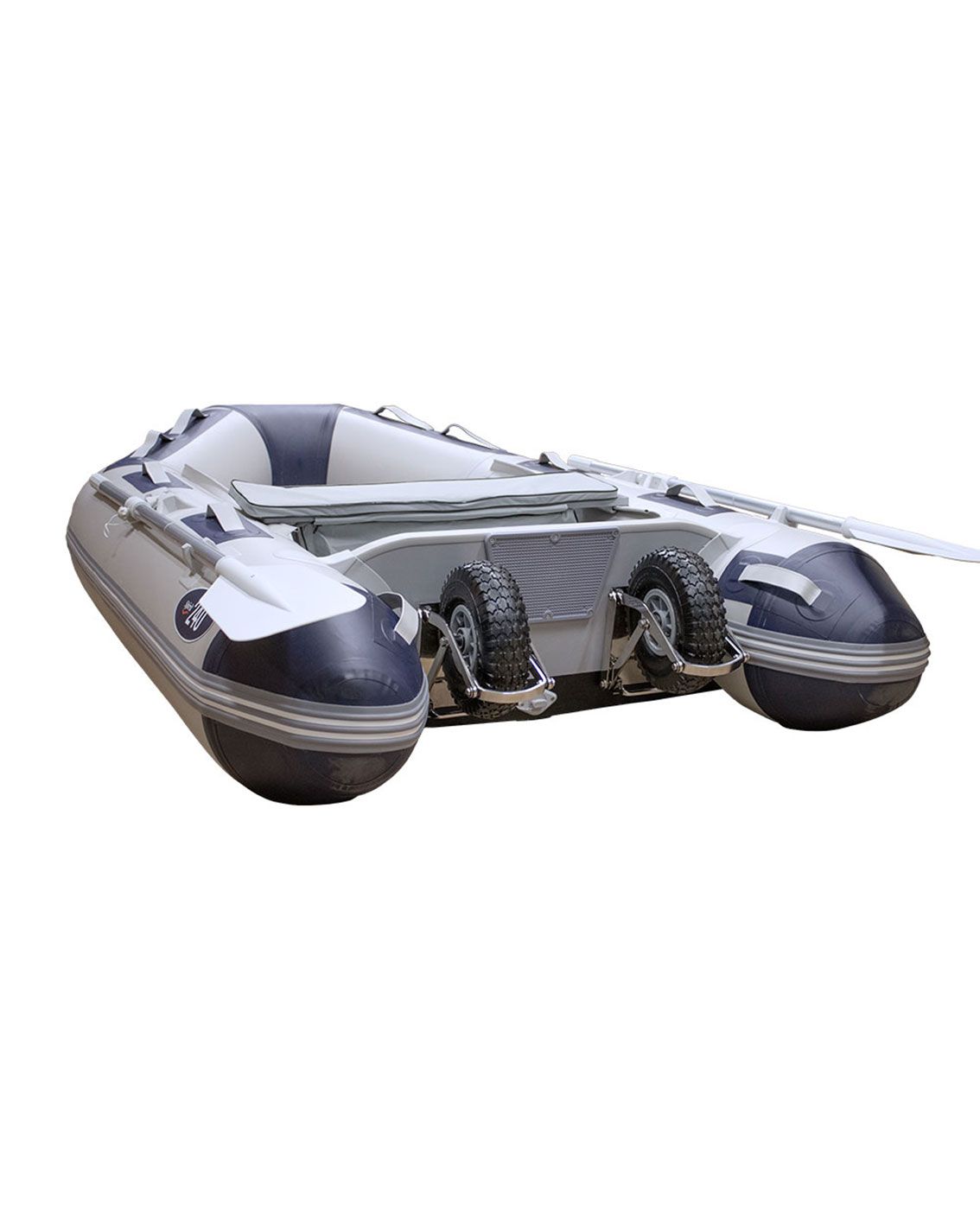

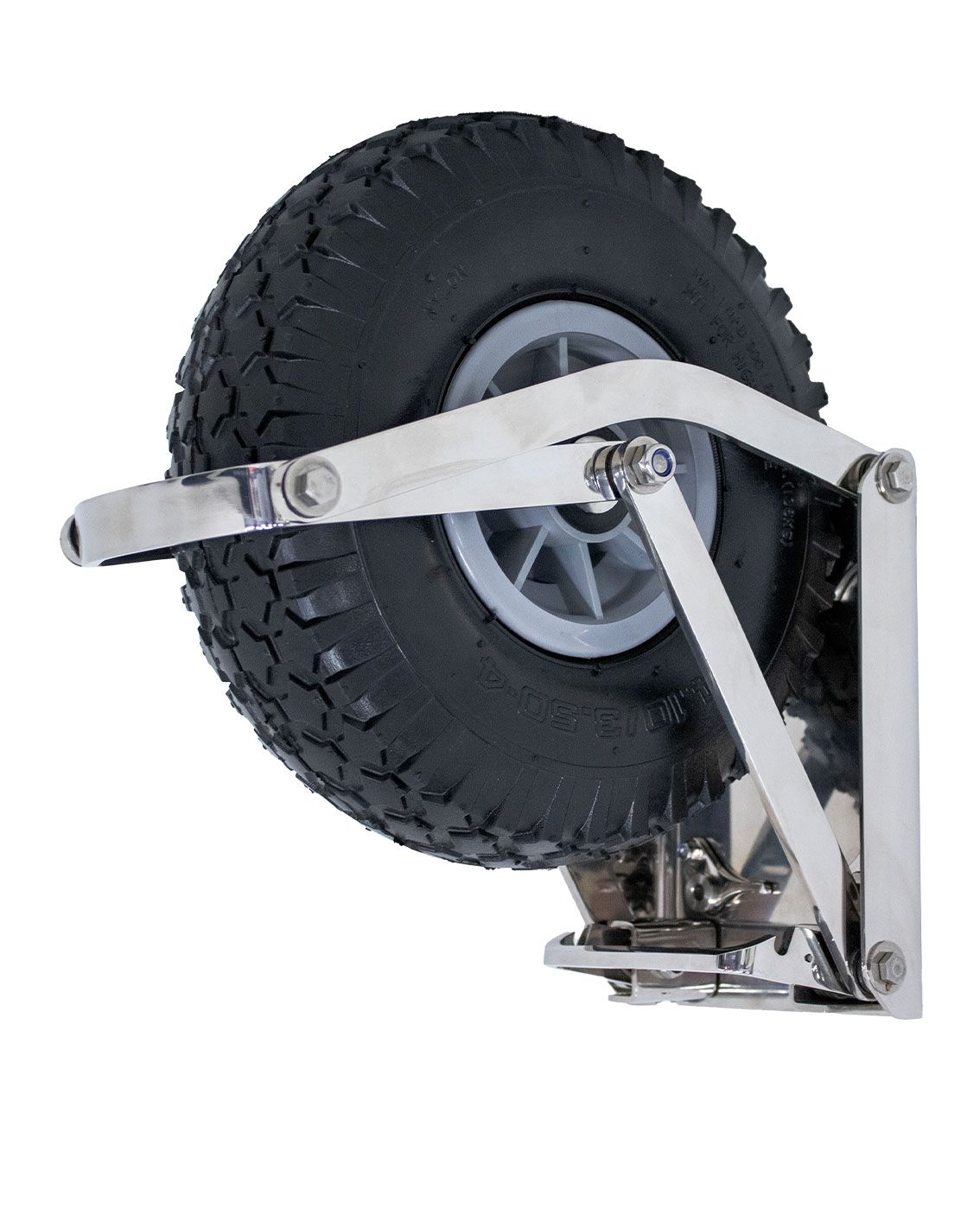

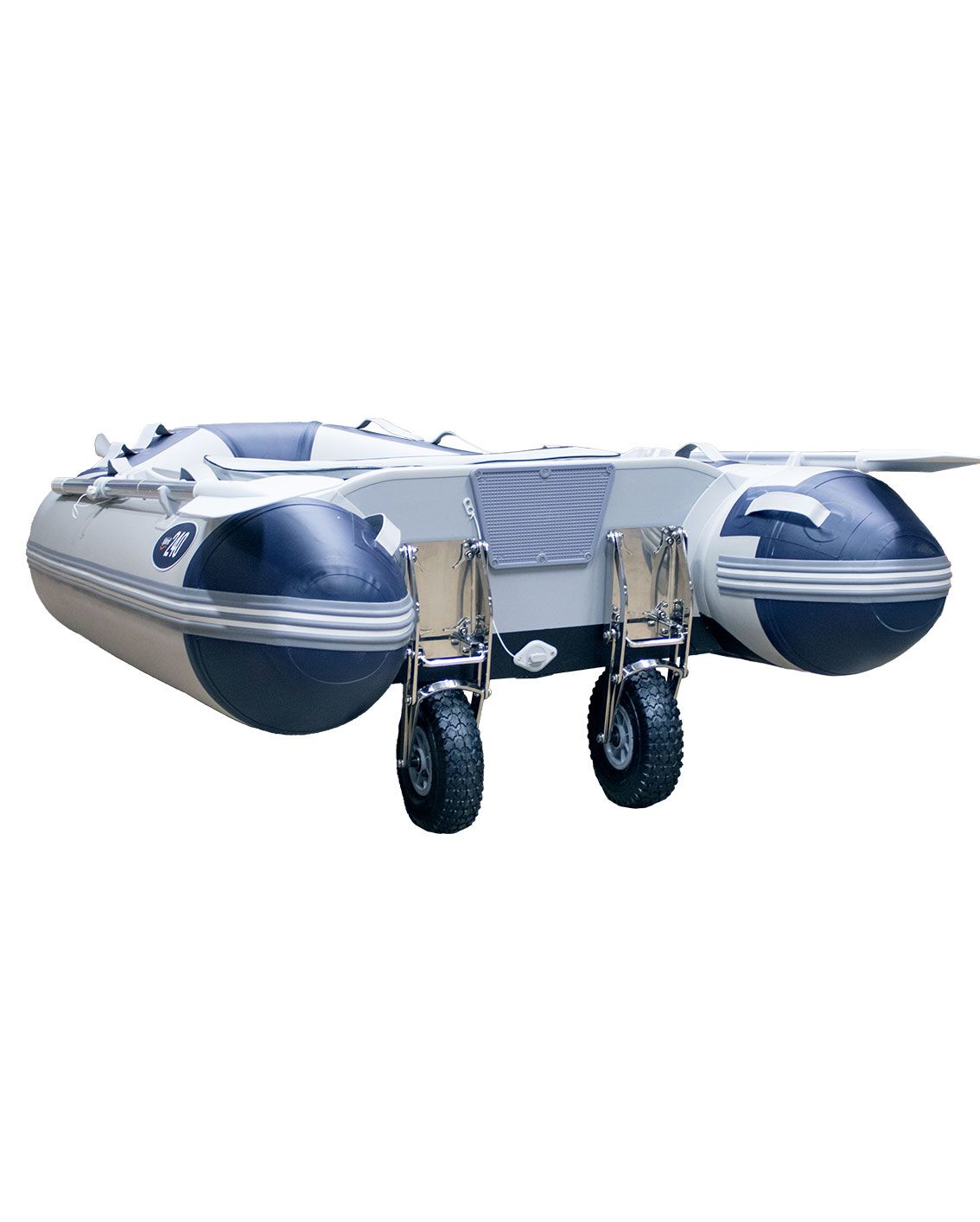

Seago Compact Heavy Duty Dinghy Wheels
Transporting your tender with an outboard across bumpy terrain just got simpler. The new highly polished stainless steel compact dinghy wheels with pneumatic tyres are designed for just that. The dinghy wheels have a working load of 120kg and a clearance of 30cm from the mounting plate. These shiny new wheels are the perfect partner to the tender owner, they look great as well.
Key Features:
Low Profile and do not interfere with your outboard motor.
Wheels can be quickly removed from the boat entirely.
Very quick and easy to raise/lower.

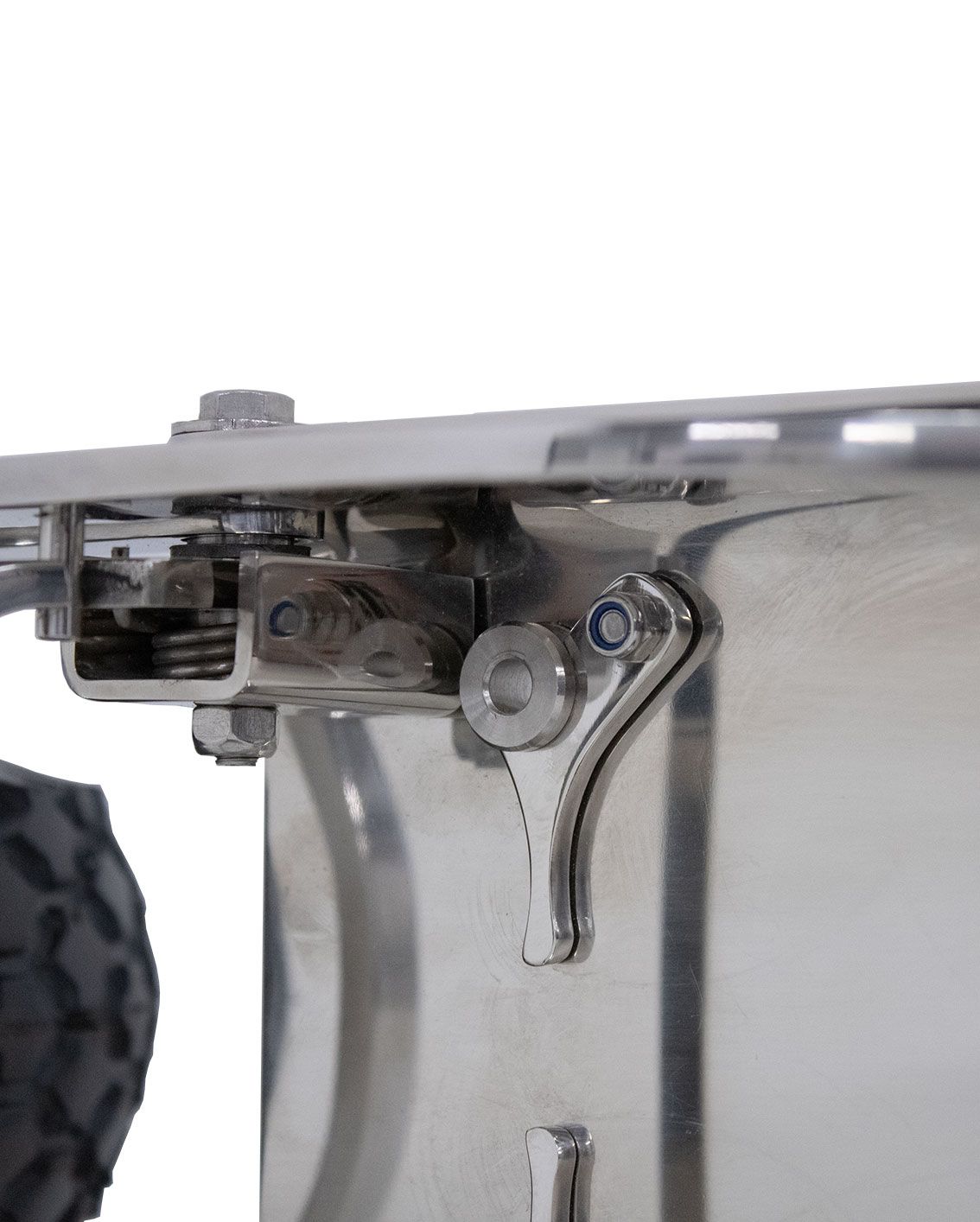

Wheel automatically locks in place in both up and down positions.
Durable aluminium frame with pneumatic wheels.
Technical Specification:
Recommended working load 120kg for a pair of wheels (Max load 200kg)
When extended, wheels reach 30 cm below bottom of fixing plate
When retracted, wheels remain 11 cm above fixing plate.
Dimensions of Bracket to fit on transom plate : 14 cm x 20 cm.
Transom Plate holes: 6.5 mm holes, 10 cm x 13 cm centre.
Tyre pressure: Not more than 25 psi
Replacement wheel Size: 4.10/3.50-4
What's in the Box?
2 x Launching Wheels
8 x Stainless Steel Transom Studs for Quick Release
6mm fixing bolts
Stainless nyloc nuts
Stainless steel washers.
WARNING - Not for towing with a vehicle or for use on the public highway
