Scanstrut ATMOS 12V Integrated Air Station - Built in Waterproof Air Pump for Boats
ATMOS with brushless technology is a next gen air pump to provide fast, effortless inflation for SUPs,
Tenders or towables. Compact and shallow the unit fits into almost any panel on board: locate into seating,
consoles or by the swim platform.
Dimensions: 198 x 297 x 87mm 7.8inch x 11.69inch x 3.44inch
Input Voltage: 12V
IPX6 Waterproof front and back
Inflates and deflates SUPS, Towables and more
Max pressure: 20PSI / 1.37 Bar
Marine grade two stage pump
LCD display
Soft Touch Buttons
Supplied with 2.5 8ft hose, 6 different connectors and Includes sun cover
Compact and shallow, Easy Install into any panel
Certified and tested ~ Features Ignition Protection ~ ISO 8846 and SAE J1171
ATMOS, by Scanstrut, will revolutionize any family’s boating experience. This beautifully designed, in ~built
air station is here to maximize quality time on the water. At the push of a button, ATMOS is ready to inflate
paddleboards, towables and more: simply set the target pressure and let ATMOS do all the hard work.
Utilizing Scanstrut’s outdoor technology DNA, this is waterproof on ~board air that’s engineered to thrive in the
harsh marine environment.
Featuring next ~gen air pump technology to provide fast, effortless inflation and deflation for all on ~water toys.
Compact and shallow, ATMOS fits into almost any panel on board such as seating, consoles, or near the swim platform.
Now have ready ~to ~go air, right where it’s needed, for even more family fun on the water.
The Design

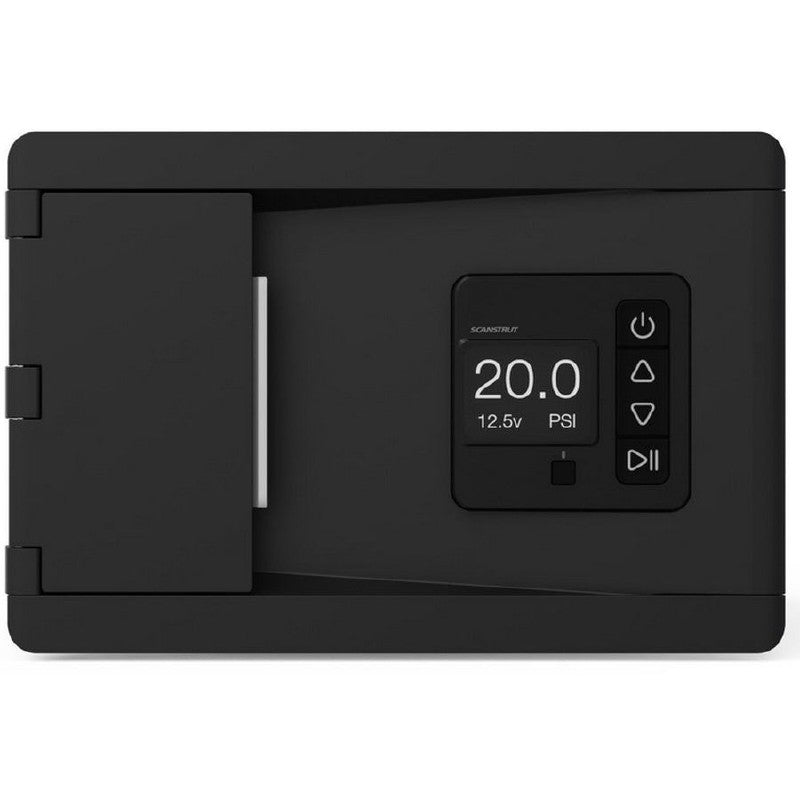

The front ~ Take control with Soft Touch TPE buttons and cutting ~edge LCD display. Specially crafted for the
challenging marine environment, the buttons feature a non ~slip texture that provides a tactile surface, even
with wet hands and the bright, wide viewing angle display gives a great view from any place on the boat, even
on the brightest days. The display also features a helpful Live Voltage readout, to easily keep track of the
boat's battery health.
The back ~ Easily integrate ATMOS into any boat with its compact and shallow design. The versatile airstation
can be installed in a variety of locations, including seating, consoles, or by the swim platform, making it
convenient and accessible wherever it's needed. Easily installed into any panel using 10 self ~tapping screws,
with a foam gasket included to ensure a secure and waterproof fit.
The side ~ The minimum cavity depth required is 110mm/4.33inch, and it can be installed at an angle ranging
from +10º to ~30º from vertical. The power cable length is 500mm 20” with a wire gauge of 2.0mm2 14 AWG, please
note that there are no end ~user serviceable parts.
Innovative Two ~Stage Pump
ATMOS with Brushless Technology ~ Unleash the power, efficiency, and reliability of an innovative two ~stage pump
system designed to meet the rugged demands of the marine environment. The first stage features a highly efficient
fan motor, followed by a robust piston pump, both designed specifically for the rugged demands of the marine environment.
ATMOS, combines both pumps into one waterproof, easy ~to ~use onboard air station, automatically switching at 1.1PSI from
the HVLP to the HPLV pump.
Stage 1: High ~volume, low ~pressure HVLP ~ Designed to move large volumes of air with minimal pressure. They are typically
used for inflating larger inflatable objects like kayaks, large tubes and bathing platforms as they can quickly inflate
the object to the desired pressure.
Stage 2: High ~pressure, low ~volume HPLV ~ Designed to generate a high level of pressure with a low volume of air.
Perfect for inflating smaller toys like SUPs, inflatable kayaks, and tubes that require a higher level of pressure for
optimum performance.
Technical
Input voltage: 12V Battery system 10 ~14V
Max current draw: 12A 140W
Standby current draw: 0.2W Max
Max volume of airflow 0 ~1 PSI: 350 LPM/12.3 CFM
Max volume of airflow 1 ~20 PSI: 70 LPM/2.5 CFM
Ambient operating temp: ~20º to +50 ºC
Two Stage Pump: Stage 1 = 0 ~ 1 PSI, Stage 2 = 1.1 ~ 20 PSI
In The Box
Sun cover ~ Supplied with a heavy duty sun cover, it can help to protect it from the long term damaging effects of the sun,
salt and other elements.
2.5M 8ft hose ~ When inflating a paddleboard on a boat, the most stable location for the pump is usually on the deck or another
flat surface. However, this location may not be close enough to the paddleboard to allow for easy inflation if the hose is too short.
A longer hose can help to bridge this distance.
6x Hose attachments ~ Supplied with 6 different adapters including; Boston Valve, C7 Valve, H3/HR Valve, Pinch Valves, and 805 Valve.
Everything needed to inflate and deflate a range of toys with ease, no matter what type of valve they have.>!!
