Rule Bilge Pump 3-Way Lit Rocker Switch 12v

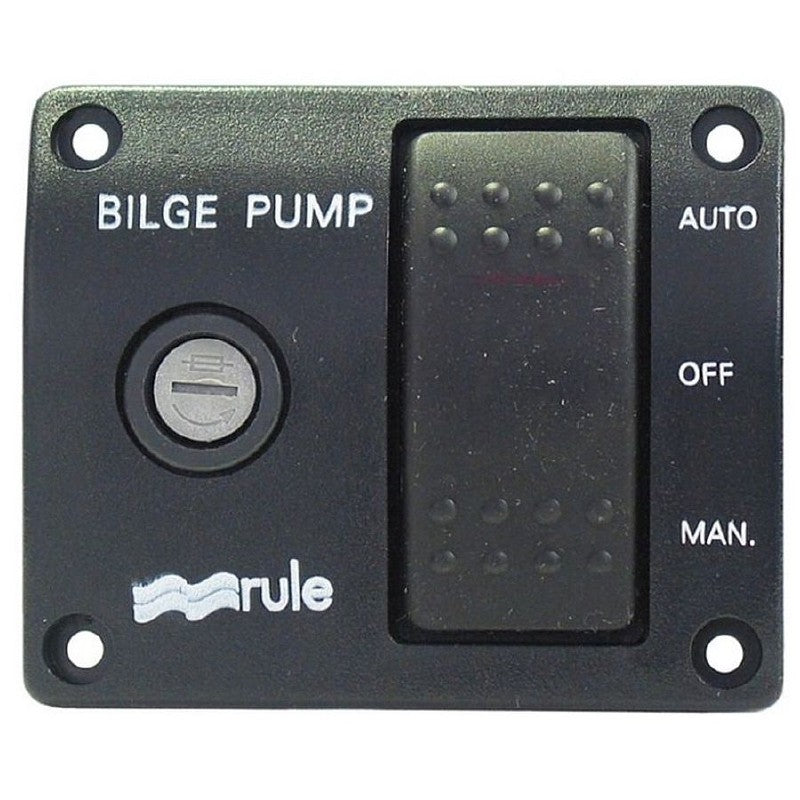

Compact and sturdy bilge pump switch panel in black plastic, with integrated fuse holder for 6.3 x 32 mm microfuses and heavy ~duty rocker switch/pushbutton for bilge pump control with switch options AUTO ~ OFF ~ MAN.

AUTO = automatic pump control via the bilge switch,
OFF = Bilge pump completely switched off,
MAN = manual start ~up of the bilge pump.

The options AUTO and OFF are switching options.
After releasing the rocker switch, the selected switch position is maintained.
The option MAN corresponds to a tactile contact.
After releasing the switch rocker, the switch automatically changes to the OFF position.
As soon as the bilge pump is in operation, the red indicator LED integrated in the switch lights up.

Delivery includes: 1x switch panel, 3x 6.3mm flat plug, 4x self ~tapping screws black 3.4x15 mm, 1x manual.

Note
Please note that an additional microfuse 6.3x32 mm not included in the delivery matching the bilge pump's current consumption is required.

Technical data:

Operating voltage: 12 volts also available for 24 V on request
Integrated fuse holder for 6.3 x 32 mm miniature fuses
Control panel works in the PLUS positive line of the bilge pump
Rocker switch / button* with operating modes AUTO ~ OFF ~MAN.
Red control LED, integrated in the switch
Dimensions H x W: 60 x 73 mm / 2 ~3 / 8 inchx 2 ~7 / 8

The control panel works in the PLUS line of the bilge pump.
Contact assignment of the switch there are stamped numbers on the back:
1 = MAN
2 = PLUS 12 V from the fuse holder
3 = AUTO
7 = MINUS control LED
