Roca Marine Windscreen Wiper Kit 12V

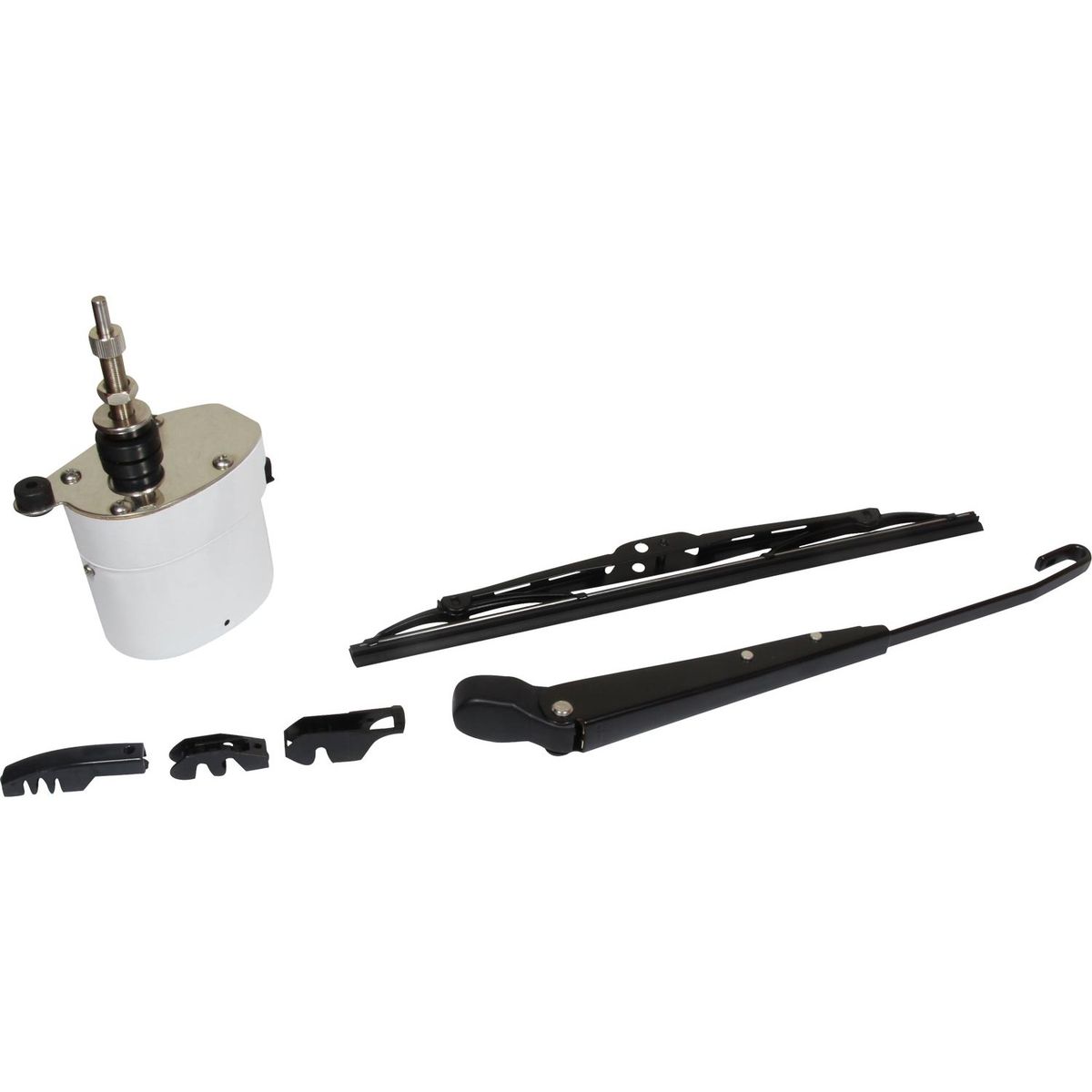

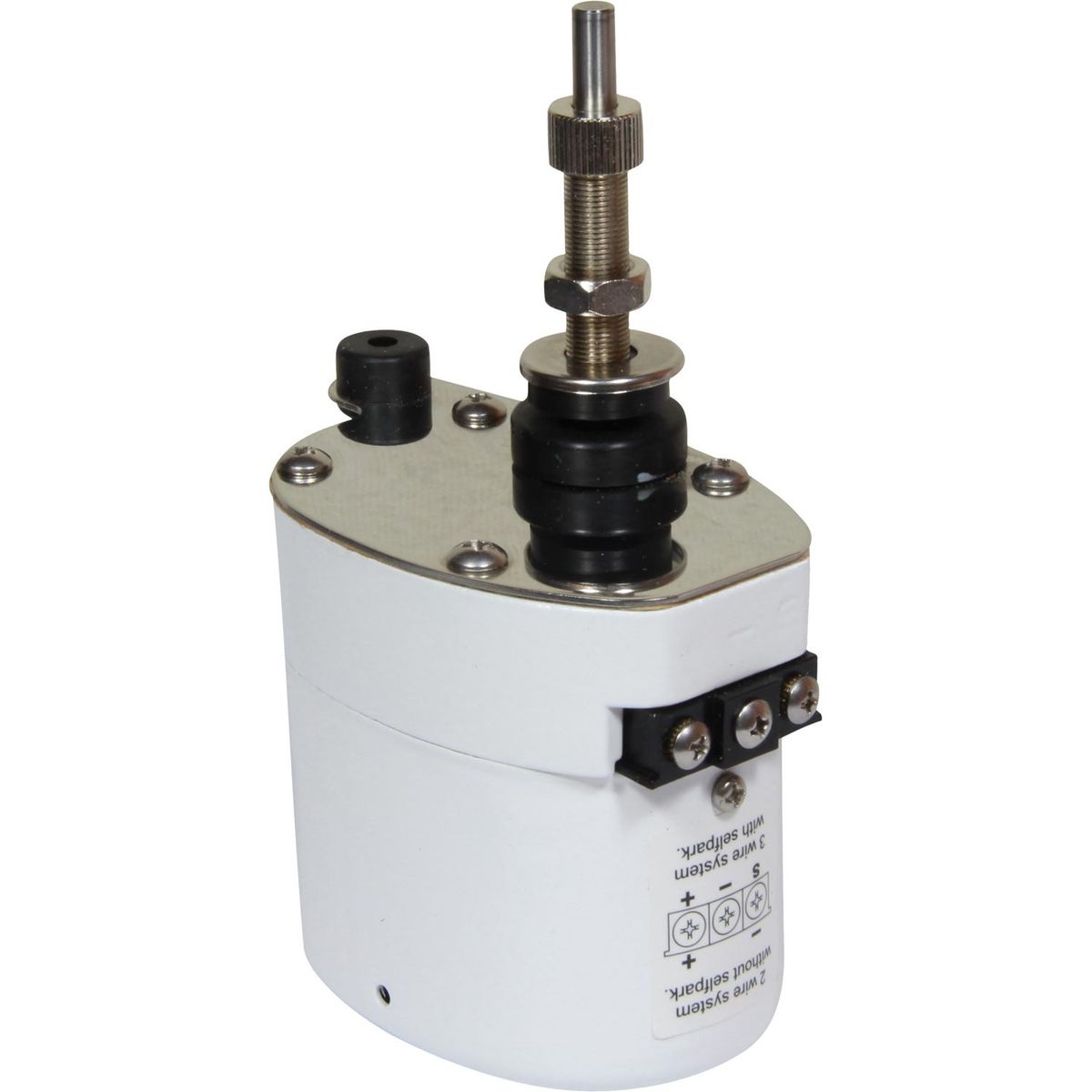

Roca W05 windshield wiper motor, supplied with adjustable wiper arm and wiper blade. The W05 is a compact wiper motor which is suitable for small to medium sized boats. It features a strong motor housed in a white powder lacquered aluminium cover, with a stainless steel 304 shaft and mounting plate.
This Roca wiper motor has an adjustable sweep angle of 90° or 110° and has left or right self-parking options (standard setting is 90° left). The W05 produces 5Nm of torque and is recommended for wiper arms and blades up to 355mm long.

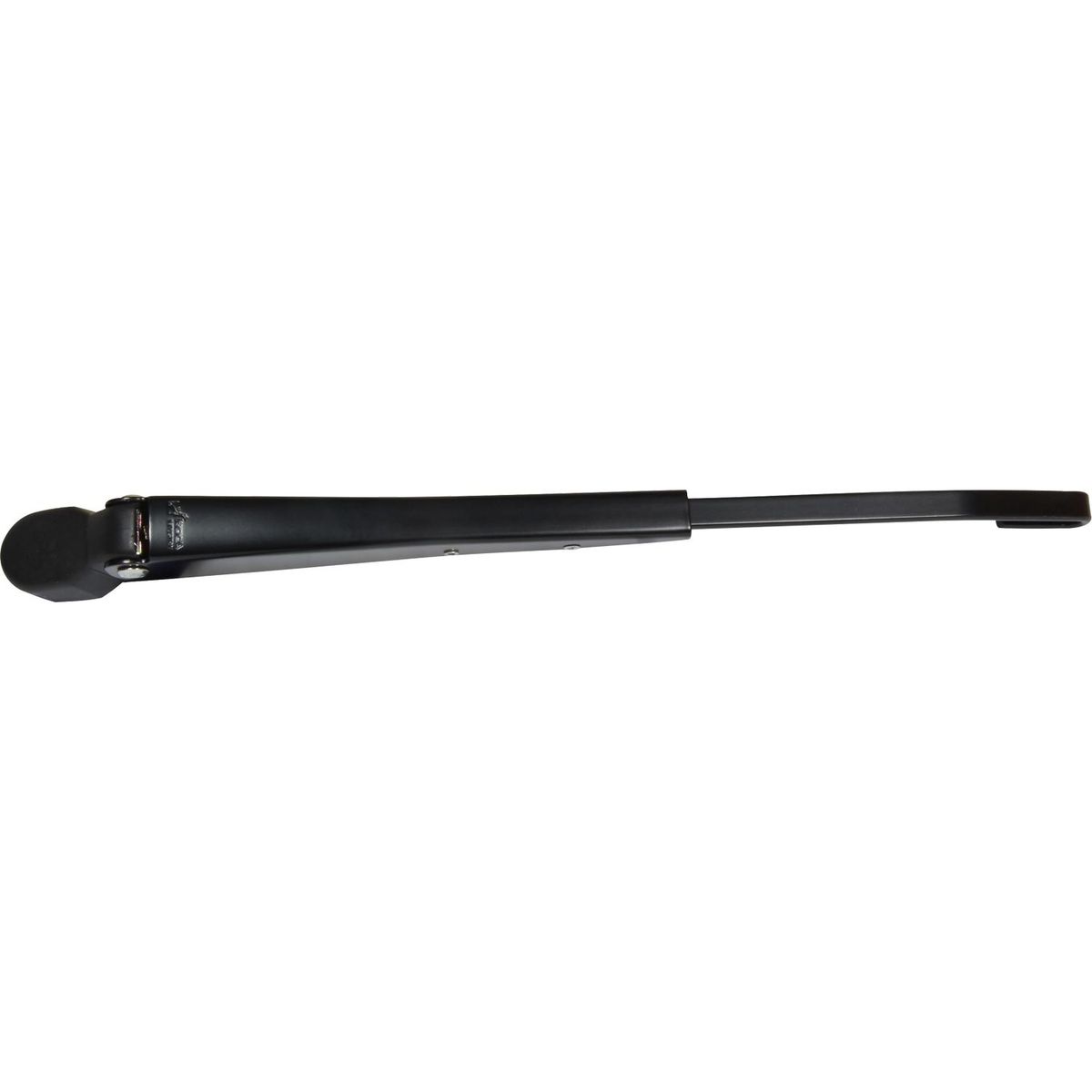

A black stainless steel standard wiper arm is supplied which is adjustable in length between 280mm and 355mm. This arm features a J-hook end connection which fits the supplied wiper blade. The blade features a zinc plated steel backer with a natural rubber profile and is 280mm in length.
| Material | Aluminium Cover, Stainless Steel 304 Shaft & Mounting Plate, Stainless Steel Wiper Arm, Zinc Plated Steel Blade Backer & Rubber Blade Profile |
| Primary Construction | Aluminium |
| Maximum Bulkhead Thickness | 21mm to 50mm |
| Replaces | Wiper Motor 717012 |
| Brand | Roca |
| Series | Roca W05 Wiper Motors |
| Voltage Description | 12V DC |
| Fuse | 3A |
| Width | Motor: 58mm (2.2") |
| Depth | Motor: 82mm (3.2") |
| Length | Motor: 82mm (3.2"), Arm: 280mm to 355mm (Adjustable), Blade: 280mm, Spindle: 58.5mm (2.3"), Maximum Arm: 355mm (14"), Maximum Blade: 355mm (14") |
| Diameter Description | Spindle Shaft Connection: 6mm |
| Thickness | Bulkhead: 25mm (1") Maximum |
| Angle | 90 Degrees to 110 Degrees (Adjustable) |
