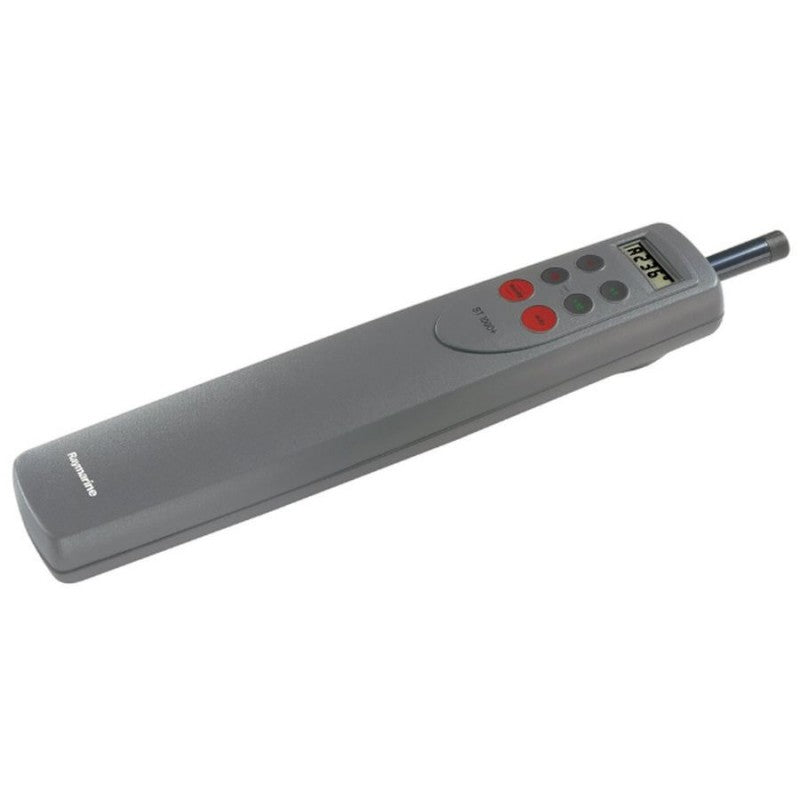

Raymarine ST1000 Plus Tillerpilot A12004 Autopilot

The ST1000+ tiller pilot is a self-contained, removable autopilot system for tiller-steered boats. Inside the durable housing is a powerful electric linear drive, precision fluxgate compass, and an easy-to-use control panel. A quick mounting and connect/disconnect system allows you to transition from hand-steering to autopilot control easily. Built-in SeaTalk networking allows the tiller pilot to communicate with the rest of your networked instruments, wind instrument, and chartplotter.

For up to 3000KG Displacement Yachts
Note - The tiller drive is designed only for coastal cruising using tiller steered sail boats. It is not intended for offshore passage making.

Features:
Backlit LCD display screen reading Pilot status or with suitable input Bearing and Distance to Waypoint and Cross Track Error.
Built in Fluxgate compass with automatic linearisation.
Full user calibration.
Autotrim.
Auto Seastate,
Windtrim.
Autotack.
Optional hand remote control

Specification:
Thrust: 57kg.
Hardover Time: 8.0 secs
Power: 12v 0.72w average stand ~by or 10w average 25 percent duty.
