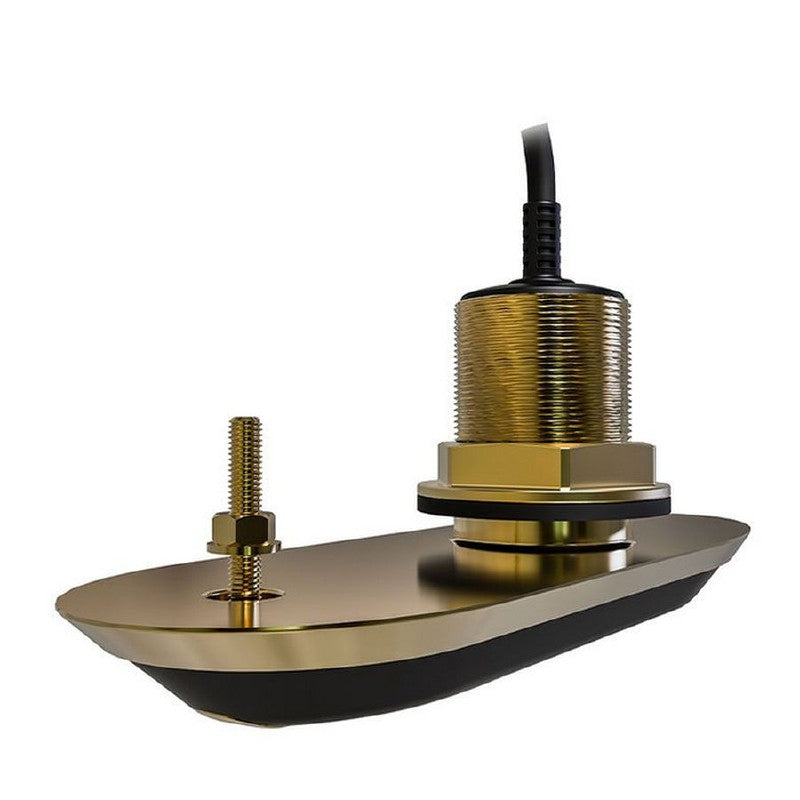

Raymarine RV-200 RealVision 3D Bronze Transducer - 0 to 5 Degree
Raymarine’s RV 200 Bronze All In One Through Hull Transducer is designed for inboard and
outboard powerboats. The RV 200 lets you easily identify structures and locate fish with the life like
clarity of RealVision 3D™ sonar. The RV 200 is a 4 channel, Wide Spectrum CHIRP transducer with DownVision™,
SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside.
0° Element angle for Hull deadrises between 0° to 5°
Installation: Thru Hull
Material: Bronze
Max. Depth ft: 3D: 300 I DownVision: 600 I Port: 300 I Starboard: 300 I Conical: 900
Frequency KHz: RealVision I High CHIRP
Beam Width L/H: 3D: 180° I Down: 60° I Conical: 25°
Records: Depth and Temperature
Approved Hull Material: Fiberglass, Wood
Cable Length Ft: 26
Supported Deadrise: 0 5°
Raymarine’s RV 200 Bronze All In One Through Hull Transducer is designed for inboard and outboard powerboats.
The RV 200 lets you easily identify structures and locate fish with the life like clarity of RealVision 3D™ sonar.
The RV 200 is a 4 channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish
targeting and RealVision 3D™ sonar inside. The transducer has a built in attitude and heading reference system AHRS
that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal clear imagery
in waves, swells, and while maneuvering. The RV 200 also has a built in fast response water temperature sensor for
quick, accurate readings.
The RV 200 features a rugged cast bronze through hull body suitable for fiberglass or wooden hulls. The RealVision
3D™ transducer elements are arranged with a 0° offset for boats with flat bottoms. The low profile design slips
effortlessly through the water without causing drag or cavitation. The near flush RV 200 works great on trailered boats
too, and with no fairing block to cut, installation is a breeze.
In The Box
RV 200 Bronze All In One Through Hull Transducer with 8 meter 26 foot cable
Anti rotation bolt kit
Installation instructions
outboard powerboats. The RV 200 lets you easily identify structures and locate fish with the life like
clarity of RealVision 3D™ sonar. The RV 200 is a 4 channel, Wide Spectrum CHIRP transducer with DownVision™,
SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside.
0° Element angle for Hull deadrises between 0° to 5°
Installation: Thru Hull
Material: Bronze
Max. Depth ft: 3D: 300 I DownVision: 600 I Port: 300 I Starboard: 300 I Conical: 900
Frequency KHz: RealVision I High CHIRP
Beam Width L/H: 3D: 180° I Down: 60° I Conical: 25°
Records: Depth and Temperature
Approved Hull Material: Fiberglass, Wood
Cable Length Ft: 26
Supported Deadrise: 0 5°
Raymarine’s RV 200 Bronze All In One Through Hull Transducer is designed for inboard and outboard powerboats.
The RV 200 lets you easily identify structures and locate fish with the life like clarity of RealVision 3D™ sonar.
The RV 200 is a 4 channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish
targeting and RealVision 3D™ sonar inside. The transducer has a built in attitude and heading reference system AHRS
that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal clear imagery
in waves, swells, and while maneuvering. The RV 200 also has a built in fast response water temperature sensor for
quick, accurate readings.
The RV 200 features a rugged cast bronze through hull body suitable for fiberglass or wooden hulls. The RealVision
3D™ transducer elements are arranged with a 0° offset for boats with flat bottoms. The low profile design slips
effortlessly through the water without causing drag or cavitation. The near flush RV 200 works great on trailered boats
too, and with no fairing block to cut, installation is a breeze.
In The Box
RV 200 Bronze All In One Through Hull Transducer with 8 meter 26 foot cable
Anti rotation bolt kit
Installation instructions
