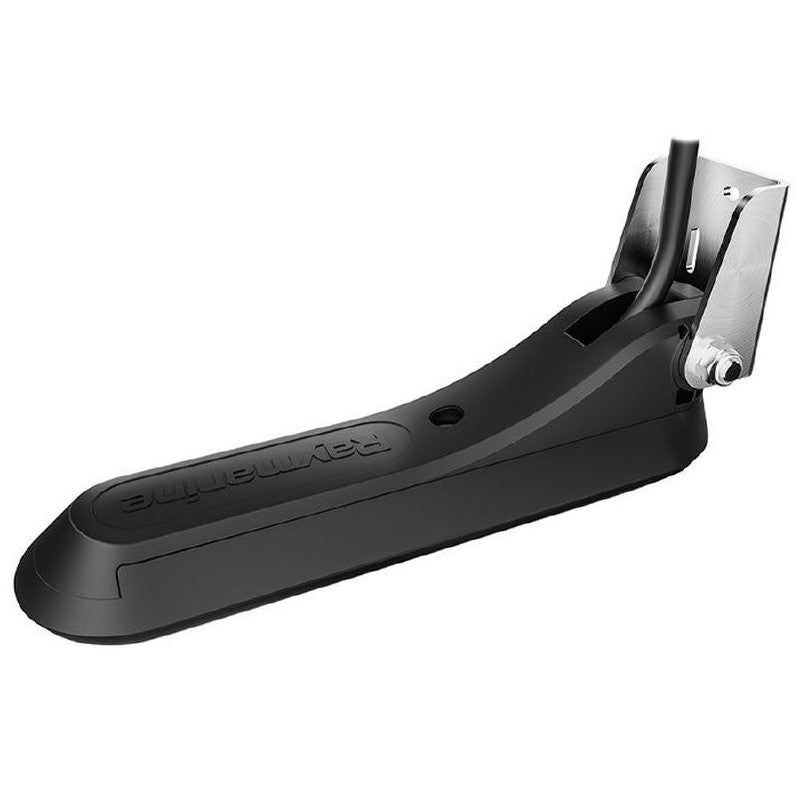

Raymarine RV-100 RealVision 3D Transom Mount Transducer - A80464
Raymarine’s RV ~100 All ~In ~One Transom Mount Transducer lets you easily identify structures and locate fish with the life ~like
clarity of RealVision 3D sonar. The RV ~100 is a 4 ~channel, Wide Spectrum CHIRP transducer with DownVision, SideVision, high frequency CHIRP fish targeting and RealVision 3D sonar inside.
Installation: Transom Mount
Material: Plastic
Max. Depth ft: 3D: 300 DownVision: 600 Port: 300 Starboard: 300 Conical: 900
Frequency KHz: RealVision High CHIRP
Beam Width L/H: 3D: 180 degrees Down: 60 degrees Conical: 25 degrees
Records: Depth and Temperature
Approved Hull Material: Fiberglass, Wood, Metal
Cable Length Ft: 26
Supported Transom Angles: 0 ~90 degrees
Raymarine’s RV ~100 All ~In ~One Transom Mount Transducer lets you easily identify structures and locate fish with the life ~like clarity of RealVision 3D sonar. The RV ~100 is a 4 ~channel, Wide Spectrum CHIRP transducer with DownVision, SideVision, high frequency CHIRP fish targeting and RealVision 3D sonar inside. The transducer has a built ~in attitude and heading reference system AHRS that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal ~clear imagery in waves, swells and while maneuvering. The RV ~100 also has a built ~in fast response water temperature sensor for quick, accurate
readings.
The RV ~100 is designed for easy transom mounting on outboard ~powered motor boats. It features a rugged, marine ~grade stainless steel mounting bracket with integrated kick ~up to prevent damage in the event of a strike with floating debris, rocks, or stumps.
The RV ~100 can also be removed from the transom bracket and attached to the stainless Jack ~Plate mounting bracket sold separately which is ideal for bass boats, flats boats and skiffs. The RV ~100 can also be mounted onto stepped hull vessels using the optional stainless steel step ~mounting bracket sold separately
In The Box
RV ~100 All ~In ~One Transom Mount Transducer with 8 ~meter 26 ~foot cable
Transom bracket
Mounting hardware
Installation instructions
clarity of RealVision 3D sonar. The RV ~100 is a 4 ~channel, Wide Spectrum CHIRP transducer with DownVision, SideVision, high frequency CHIRP fish targeting and RealVision 3D sonar inside.
Installation: Transom Mount
Material: Plastic
Max. Depth ft: 3D: 300 DownVision: 600 Port: 300 Starboard: 300 Conical: 900
Frequency KHz: RealVision High CHIRP
Beam Width L/H: 3D: 180 degrees Down: 60 degrees Conical: 25 degrees
Records: Depth and Temperature
Approved Hull Material: Fiberglass, Wood, Metal
Cable Length Ft: 26
Supported Transom Angles: 0 ~90 degrees
Raymarine’s RV ~100 All ~In ~One Transom Mount Transducer lets you easily identify structures and locate fish with the life ~like clarity of RealVision 3D sonar. The RV ~100 is a 4 ~channel, Wide Spectrum CHIRP transducer with DownVision, SideVision, high frequency CHIRP fish targeting and RealVision 3D sonar inside. The transducer has a built ~in attitude and heading reference system AHRS that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal ~clear imagery in waves, swells and while maneuvering. The RV ~100 also has a built ~in fast response water temperature sensor for quick, accurate
readings.
The RV ~100 is designed for easy transom mounting on outboard ~powered motor boats. It features a rugged, marine ~grade stainless steel mounting bracket with integrated kick ~up to prevent damage in the event of a strike with floating debris, rocks, or stumps.
The RV ~100 can also be removed from the transom bracket and attached to the stainless Jack ~Plate mounting bracket sold separately which is ideal for bass boats, flats boats and skiffs. The RV ~100 can also be mounted onto stepped hull vessels using the optional stainless steel step ~mounting bracket sold separately
In The Box
RV ~100 All ~In ~One Transom Mount Transducer with 8 ~meter 26 ~foot cable
Transom bracket
Mounting hardware
Installation instructions
Raymarine RV-100 RealVision 3D Transom Mount Transducer - A80464
Our price£433.13
RRP£495.00
