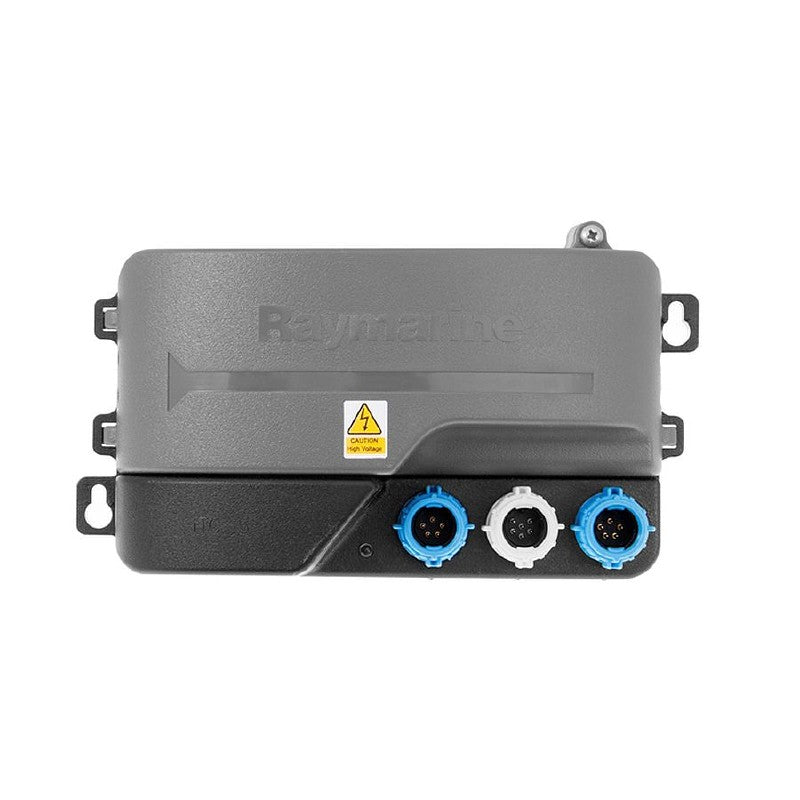

Raymarine iTC-5 Instrument Transducer Converter E70010

Easily convert Transducer signals to SeaTalkNG The Raymarine iTC ~5 converts analogue transducer signals used in i70, ST70+ and ST70 instrument systems to SeaTalkNG. Transducers for Speed/Temperature, Depth, Wind, Rudder Angle and Fluxgate Compass can be connected to the one iTC ~5 unit, eliminating the need for multiple ST70 pods. Extended STng systems can support multiple iTC ~5 units. SeaTalkNG connections at the base of the unit simply connect the iTC ~5 unit into the SeaTalkNG backbone. Please note the ST40/i40/i50/i60 and ST60+ displays cannot calibrate the iTC ~5. Only the i70 has full transducer calibration. The ST70/ST70+ can calibrate the Depth, Wind and Speed/Temp transducers not Rudder or Compass. If you don't have an ST70/ST70+ or i70 in your system, then the ST40/i40/i50/i60/ST60+ displays must be interfaced directly to the relevant analogue transducers. iTC ~5 ~ What's in the box? The iTC ~5 is available with the features, options, and accessories described below.
Refer to the packing list enclosed with your iTC ~5 shipment to determine the actual contents of your package. iTC ~5
Quick Start Guide
Documentation Pack ~ Manual Number: 87138
Fixing screws x 2 ~ No.6 x 3/4 Pan Head Pozidriv, Stainless Steel
Spur cable 400mm SeaTalkng spur cable ~ A06038
