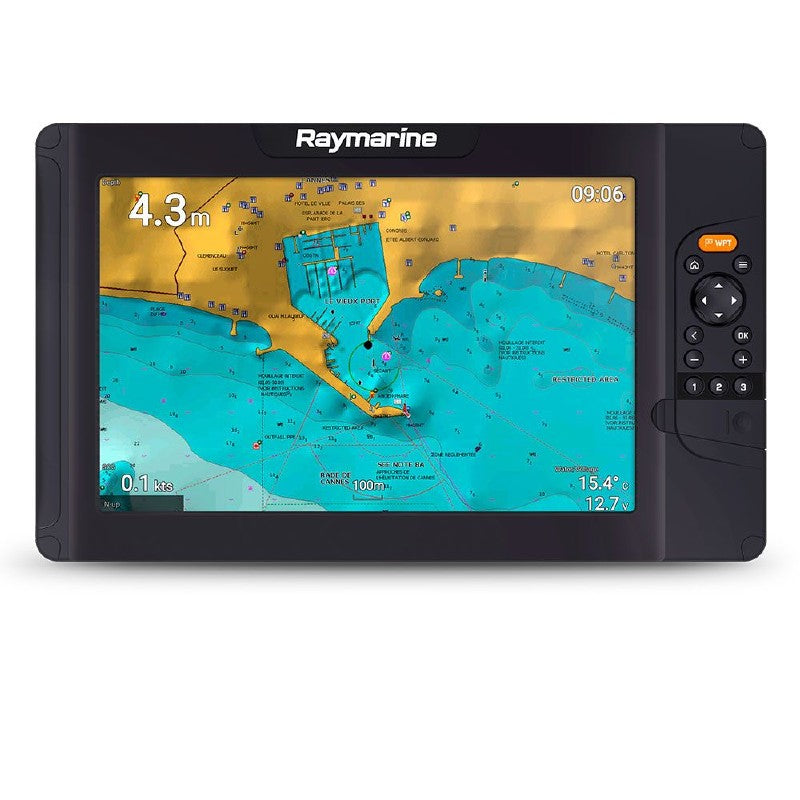

Raymarine Element 12S - Display Only
The Element S series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and affordable performance, Element S will quickly become your trusted cruising companion. A quad ~core processor offers responsive performance and Element’s all ~weather, sunlight viewable displays deliver chart and navigation data in beautiful color.
Display Size: 12.0inch Optically Bonded LCD
Display Resolution: 1280 x 800 WVGA
Display Type: Non ~Touch
Brightness: 1,500 nits
Viewing Angle: Top 89 degrees / Bottom 89 degrees / Left 89 degrees / Right 89 degrees
Overall Dimensions W x H x D mm:357 x 215 x 62mm, 14.1 x 8.5 x 2.4 inches
Product Weight lbs: 6.5
Water Ingress Protection: IPx7
Operating Temperature Range: ~25 degreesC to + 55 degreesC ~13 degreesF to 131 degreesF
Storage temperature range: ~30 degreesC to +70 degreesC ~22 degreesF to 158 degreesF
Voltage: 12V DC 8V to 16V DC
Power Consumption max 12V DC: 25 Watts
The Element series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and aff ordable performance, Element will quickly become your trusted cruising companion. A quad ~core processor offers responsive performance and Element’s all ~weather, sunlight viewable displays deliver chart and navigation data in beautiful color.
Sonar is Standard
Element S comes with a Single channel High CHIRP Sonar with 9 pin connector.
Quad ~core performance
The fast quad ~core processor allows instantaneous chart re ~draw and continuous 3D rendering while running a simple, easy ~to ~learn user interface.
Lighthouse Sport OS
Raymarines Lighthouse Sport operating system is designed for boaters who value simplicity and ease of operation, featuring uncomplicated menus.
Intuitive keypad controls
Helping captains get under way fast and stay on course. Dedicated keypad controls keep the screen free of fingerprints. Additionally, three user ~programmable quick keys provide instant access to favored pages, and an oversized waypoint button allows quick and easy marking of areas of interest.
Live menus
Change settings or customize charts while seeing the navigation display change in real time.
Display Size: 12.0inch Optically Bonded LCD
Display Resolution: 1280 x 800 WVGA
Display Type: Non ~Touch
Brightness: 1,500 nits
Viewing Angle: Top 89 degrees / Bottom 89 degrees / Left 89 degrees / Right 89 degrees
Overall Dimensions W x H x D mm:357 x 215 x 62mm, 14.1 x 8.5 x 2.4 inches
Product Weight lbs: 6.5
Water Ingress Protection: IPx7
Operating Temperature Range: ~25 degreesC to + 55 degreesC ~13 degreesF to 131 degreesF
Storage temperature range: ~30 degreesC to +70 degreesC ~22 degreesF to 158 degreesF
Voltage: 12V DC 8V to 16V DC
Power Consumption max 12V DC: 25 Watts
The Element series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and aff ordable performance, Element will quickly become your trusted cruising companion. A quad ~core processor offers responsive performance and Element’s all ~weather, sunlight viewable displays deliver chart and navigation data in beautiful color.
Sonar is Standard
Element S comes with a Single channel High CHIRP Sonar with 9 pin connector.
Quad ~core performance
The fast quad ~core processor allows instantaneous chart re ~draw and continuous 3D rendering while running a simple, easy ~to ~learn user interface.
Lighthouse Sport OS
Raymarines Lighthouse Sport operating system is designed for boaters who value simplicity and ease of operation, featuring uncomplicated menus.
Intuitive keypad controls
Helping captains get under way fast and stay on course. Dedicated keypad controls keep the screen free of fingerprints. Additionally, three user ~programmable quick keys provide instant access to favored pages, and an oversized waypoint button allows quick and easy marking of areas of interest.
Live menus
Change settings or customize charts while seeing the navigation display change in real time.
Raymarine Element 12S - Display Only
Our price£961.80
RRP£1,145.00
