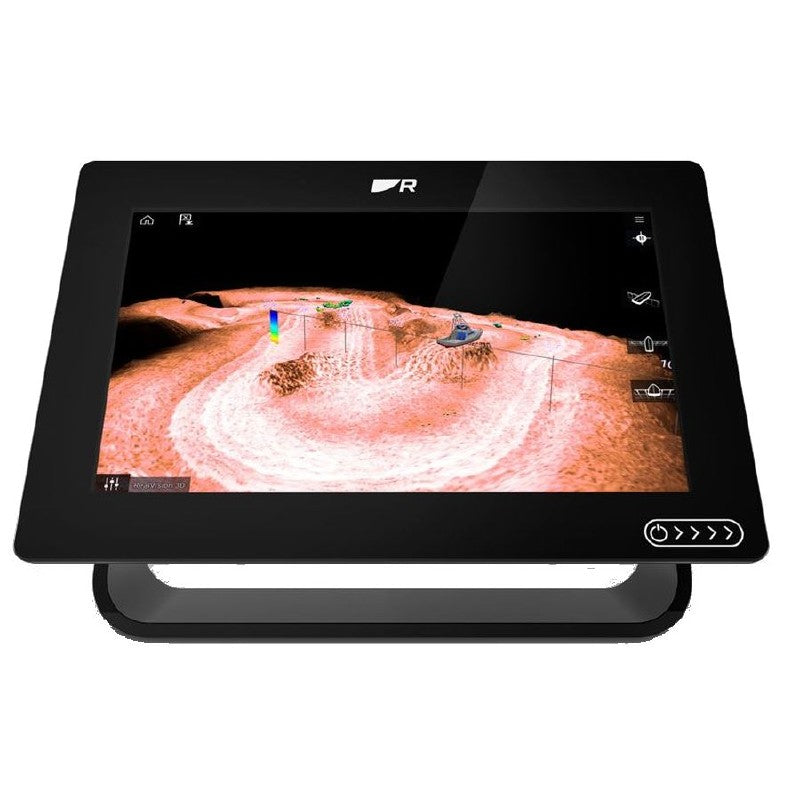

Raymarine Axiom+ 9RV - Display Only - E70637
The performance ~tuned Axiom+ is a new generation of award ~winning Raymarine multifunction displays. Optimised for speed
with quad ~core performance, 16gb of internal storage, new higher resolution IPS displays deliver 25 percent more brightness
and new day/night color palettes offer enhanced visibility in any lighting condition.
AXIOM+ 9RV ~ Display Only Chartplotter with Real Vision 3D Sonar
Display Size: 9.0 inch High Density IPS
Display Resolution: 1280 x 720 WXGA
Display Type: Multitouch with HydroTough rugged hydrophobic coating
Brightness: 1,500 nits
Viewing Angle: 85 degrees Top, Bottom, Left, Right
Dimensions W x H x D:244 x 158 x 77mm, 9.65 x 6.22 x 3.0in
Weight: 5 lbs
Mounting Options: Surface, Flush, Trunnion, Front installation bracket available
Waterproof Rating: IPX7
Operating Temperature Range: ~25 degreesC to +55 degreesC ~13 degreesF to +131 degreesF
Storage Temperature Range: ~30 degreesC to +70 degreesC ~22 degreesF to +158 degreesF
Voltage: 12V DC 8V to 16V DC
Power Consumption: 11.98 Watts
Axiom+ A New Generation of High ~Performance Multifunction Navigation Displays
The performance ~tuned Axiom+ is a new generation of award ~winning Raymarine multifunction displays. Optimised for speed, Axiom+ is
equipped with a powerful quad ~core processor for industry ~leading responsiveness and speed, giving you the power to seamlessly redraw
charts, navigate with augmented reality, and experience RealVision 3D sonar.
New, higher resolution IPS displays deliver 25 percent more brightness and new day/night colour palettes offer enhanced visibility in
any lighting condition. Axiom+ features the renowned LightHouse 3 OS, the most powerful and easy ~to ~use Raymarine MFD operating system to date.
Performance Tuned ~ Designed for speed, performance, and future expansion.
Fast and Fluid ~ Fluid and fast chart redraw of LightHouse, Navionics, and C ~MAP electronic charts.
Quad ~Core Power ~ Powerful quad ~core processor, plus increased onboard storage for personal data and apps.
Lightghouse 3 OS ~ Smart and intuitive LightHouse 3 OS makes navigating easy.
Augmented Reality ~ Clearcruise Augmented Reality ~capable for smarter navigation decisions.
Hydrotough Display ~ Nano ~coated, impact ~resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls.
Brighter ~ 9 inch all ~weather displays are up to 25 percent brighter up to 1,800 nits.
Sharper ~ IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.
Chartplotter
Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue
Latitude, and more.
Real Vision 3D Sonar
Real Vision model includes built ~in RealVision 3D Sonar technology. RealVision 3D transducers combine CHIRP DownVision, CHIRP SideVision,
High Frequency CHIRP, and RealVision 3D into a single transducer housing. Additionally, Raymarine’s gyro ~stabilized sonar technology compensates
for boat movement, delivering life ~like 3D sonar imagery.
Transducer not included
with quad ~core performance, 16gb of internal storage, new higher resolution IPS displays deliver 25 percent more brightness
and new day/night color palettes offer enhanced visibility in any lighting condition.
AXIOM+ 9RV ~ Display Only Chartplotter with Real Vision 3D Sonar
Display Size: 9.0 inch High Density IPS
Display Resolution: 1280 x 720 WXGA
Display Type: Multitouch with HydroTough rugged hydrophobic coating
Brightness: 1,500 nits
Viewing Angle: 85 degrees Top, Bottom, Left, Right
Dimensions W x H x D:244 x 158 x 77mm, 9.65 x 6.22 x 3.0in
Weight: 5 lbs
Mounting Options: Surface, Flush, Trunnion, Front installation bracket available
Waterproof Rating: IPX7
Operating Temperature Range: ~25 degreesC to +55 degreesC ~13 degreesF to +131 degreesF
Storage Temperature Range: ~30 degreesC to +70 degreesC ~22 degreesF to +158 degreesF
Voltage: 12V DC 8V to 16V DC
Power Consumption: 11.98 Watts
Axiom+ A New Generation of High ~Performance Multifunction Navigation Displays
The performance ~tuned Axiom+ is a new generation of award ~winning Raymarine multifunction displays. Optimised for speed, Axiom+ is
equipped with a powerful quad ~core processor for industry ~leading responsiveness and speed, giving you the power to seamlessly redraw
charts, navigate with augmented reality, and experience RealVision 3D sonar.
New, higher resolution IPS displays deliver 25 percent more brightness and new day/night colour palettes offer enhanced visibility in
any lighting condition. Axiom+ features the renowned LightHouse 3 OS, the most powerful and easy ~to ~use Raymarine MFD operating system to date.
Performance Tuned ~ Designed for speed, performance, and future expansion.
Fast and Fluid ~ Fluid and fast chart redraw of LightHouse, Navionics, and C ~MAP electronic charts.
Quad ~Core Power ~ Powerful quad ~core processor, plus increased onboard storage for personal data and apps.
Lightghouse 3 OS ~ Smart and intuitive LightHouse 3 OS makes navigating easy.
Augmented Reality ~ Clearcruise Augmented Reality ~capable for smarter navigation decisions.
Hydrotough Display ~ Nano ~coated, impact ~resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls.
Brighter ~ 9 inch all ~weather displays are up to 25 percent brighter up to 1,800 nits.
Sharper ~ IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.
Chartplotter
Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue
Latitude, and more.
Real Vision 3D Sonar
Real Vision model includes built ~in RealVision 3D Sonar technology. RealVision 3D transducers combine CHIRP DownVision, CHIRP SideVision,
High Frequency CHIRP, and RealVision 3D into a single transducer housing. Additionally, Raymarine’s gyro ~stabilized sonar technology compensates
for boat movement, delivering life ~like 3D sonar imagery.
Transducer not included
Raymarine Axiom+ 9RV - Display Only - E70637
Our price£1,379.95
RRP£1,645.01
