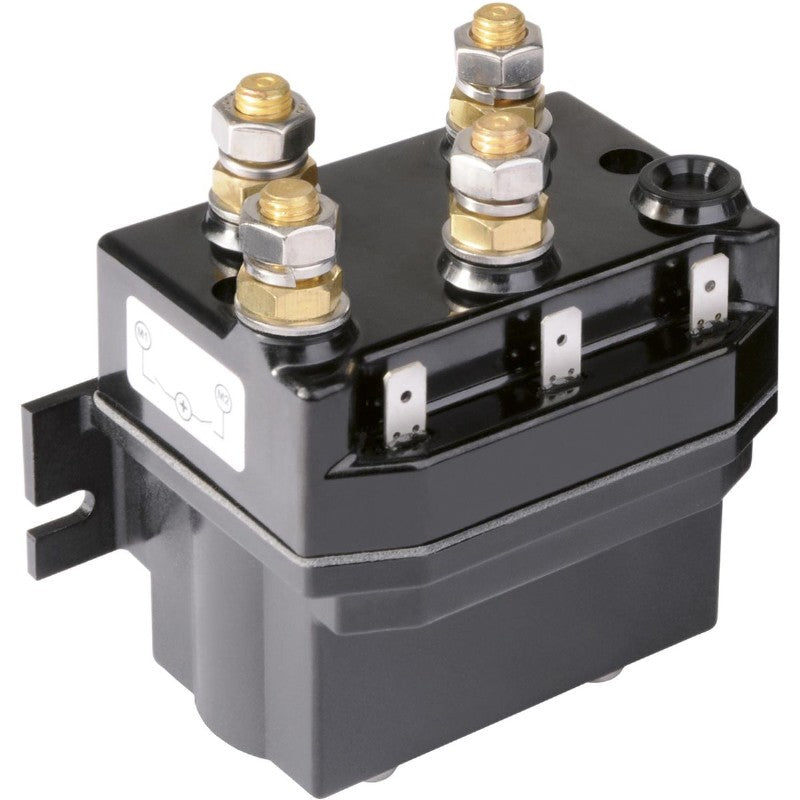

Quick T6415-12 Reversing Contactor 12V / IP66
The Quick T6415-12 reversing contactor is engineered for 12V windlass and capstan electric motors, delivering reliable directional control for marine applications. Its external connection design ensures straightforward installation without complex wiring requirements. Built with IP66 protection (terminals excluded), this unit withstands harsh marine environments while maintaining operational integrity. Ideal for boat owners seeking dependable motor control with minimal installation hassle.
| IP Rating | IP66 |
| Brand | Quick |
| Voltage Description | 12V DC |
| Wattage | 2500W |
| Amps Description | Interruption Capacity: 800A at 48V DC, Working Intermittent Current (50% of work cycle): 150A |
| Fuse | Recommended: 2.5A Fast |
| Height Description | Excluding Terminals: 83.5mm (3-9/32"), Terminals: 23.1mm (29/32"), Bracket: 29mm (1-9/64") |
| Width | 100.3mm (3-61/64"), Excluding Mounting Bracket 82.5mm (3-1/4") |
| Depth | 66.5mm (2-5/8"), Excluding Mounting Bracket: 61.3mm (2-13/32") |
| Weight | 980g (2.16 lb) |
| Dimensions | Distance Between Mounting Hole Centres: 86mm (3-3/8") |
Quick T6415-12 Reversing Contactor 12V / IP66
Our price£109.95
RRP£160.96
