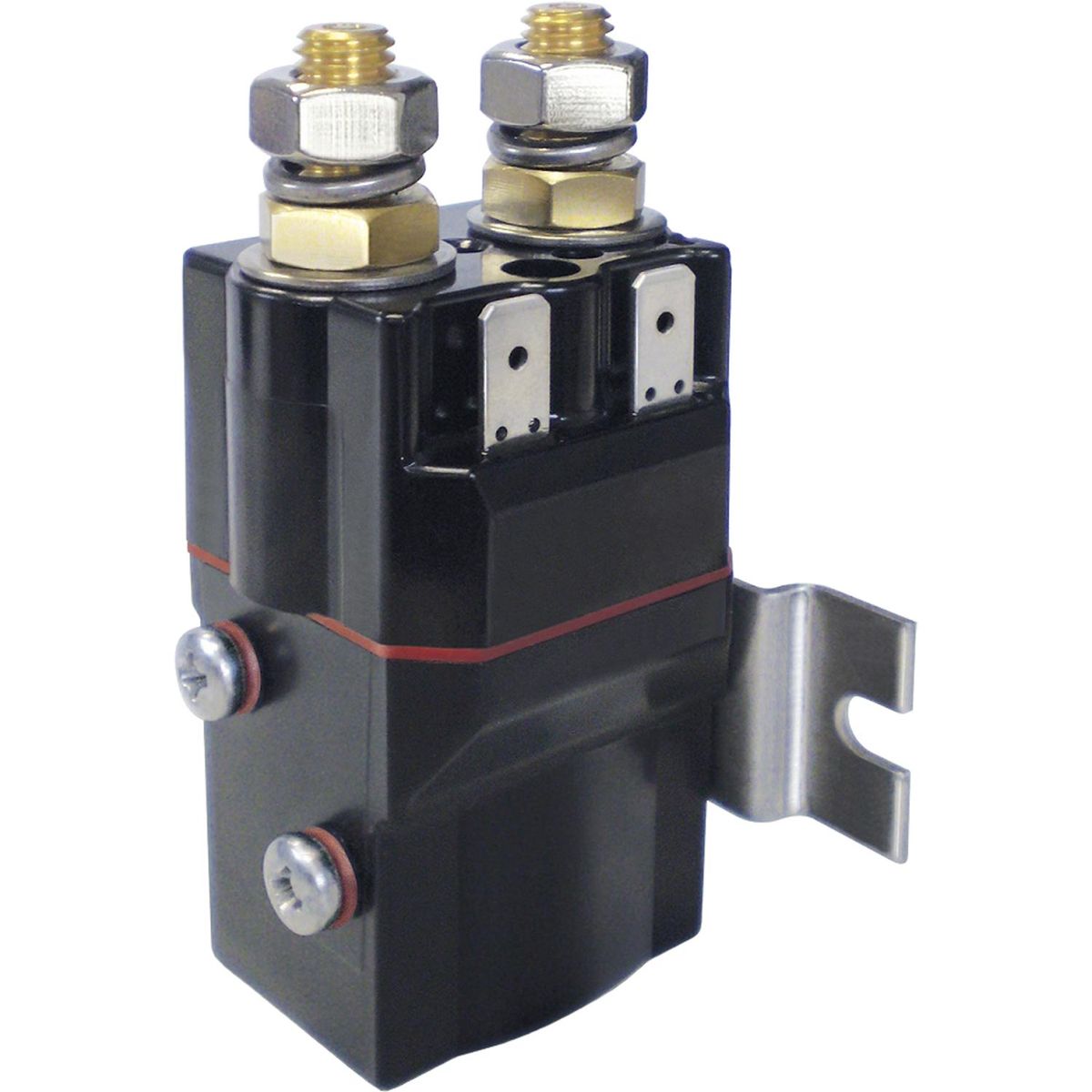

Quick T6215-24 Contactor Unit (24V / 150A / IP66)
The Quick contactor unit T6215-24 is suitable to operate 24V windlass electric motors and capstans up to 150 amps. The contactor is extremely easy to install due to it's external connections. Quick T6215 contactor features IP66 protection (excluding the terminals).
| IP Rating | IP66 |
| Brand | Quick |
| Voltage Description | Coil: 24V DC, Contact: 48V DC Maximum |
| Wattage | 2500W |
| Amps Description | Interruption Capacity: 500A at 48V DC, Working Intermittent Current (50% of work cycle): 150A |
| Height Description | 84.5mm (3-21/64"), Bracket: 22.2mm (7/8") |
| Width | 64mm (2-33/64"), Excluding Mounting Bracket 32.8mm (1-19/64") |
| Depth | 45mm (1-49/64"), Excluding Mounting Bracket: 35mm (1-3/8") |
| Weight | 240g (0.53 lb) |
| Dimensions | Distance Between Mounting Hole Centres: 48.7mm (1-59/64") |
Quick T6215-24 Contactor Unit (24V / 150A / IP66)
Our price£61.46
RRP£81.95
