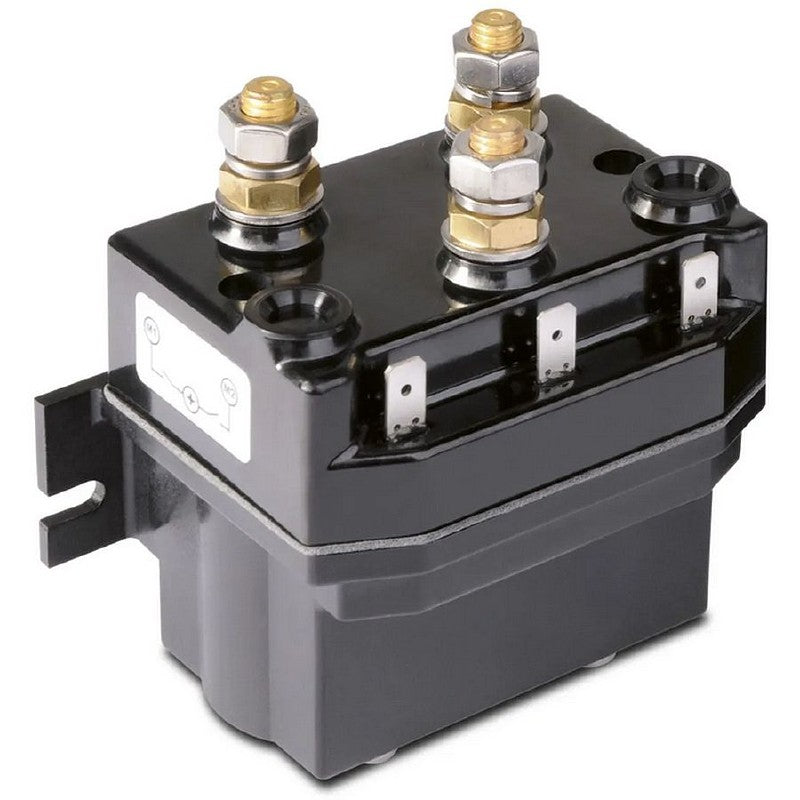

Quick Solenoid - 150A - 12V - IP66

Quick Solenoid 150A 12V IP66 replaces T501 T510

Contactor and reversing units for direct current DC connections.
Devices to operate windlass and winches using remote controls.

Max 2500 W

Brand Quick
Voltage Description 12V DC Max. 48V
Wattage 2500W
Amps Description Interruption Capacity: 800A at 48V DC, Working Intermittent Current 50percent of work cycle: 150A
Fuse Recommended: 2.5A Fast
Height Description Excluding Terminals: 83.5mm , Terminals: 23.1mm Bracket: 29mm
Width 100.3mm Excluding Mounting Bracket 82.5mm
Depth 66.5mm Excluding Mounting Bracket: 61.3mm
Weight 850g
Dimensions Distance Between Mounting Hole Centres: 86mm
