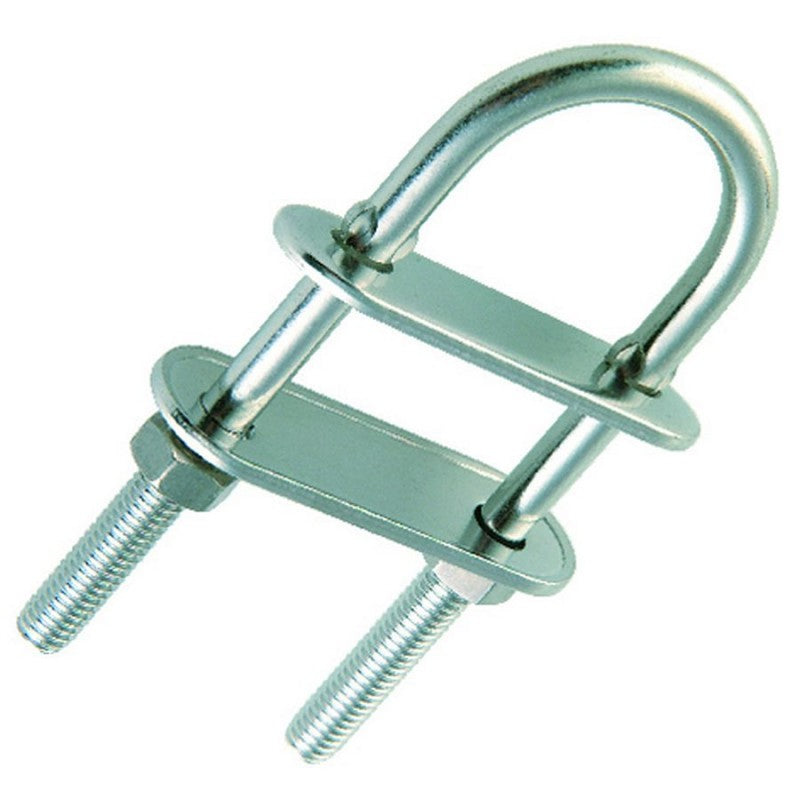

Proboat Stainless Steel U Bolt 6mm

Marine grade stainless steel. C/w nuts, washers and backing plate. Dimensions given is material diameter. Available in 5 sizes: 4mm ~ G=M4 L1=66mm L2=35mm L3=25mm L4=30mm B=26mm D=4.0mm Break Load 750kg
5mm ~ G=M5 L1=67mm L2=35mm L3=25mm L4=30mm B=25mm D=4.4mm Break Load 900kg
6mm ~ G=M6 L1=67mm L2=35mm L3=26mm L4=30mm B=27mm D=5.3mm Break Load 1250kg
8mm ~ G=M8 L1=71mm L2=35mm L3=26mm L4=30mm B=25mm D=7.1mm Break Load 1750kg
10mm ~ G=M10 L1=95mm L2=45mm L3=40mm L4=40mm B=30mm D=10mm Break Load 3500kg
