Pilot Gas Monitoring System with Two LPG Detectors and Control Valve 12V

Pilot Gas Monitoring System

Every boat should have a Gas Alarm as leaking gas that sinks down into the bilges can be extremely dangerous. This is an effective alarm which will detect butane and propane gas well before escaping gases build up to dangerous levels. Using the solenoid valve, it will also automatically cut off the boat's gas supply when leaking gas is detected.

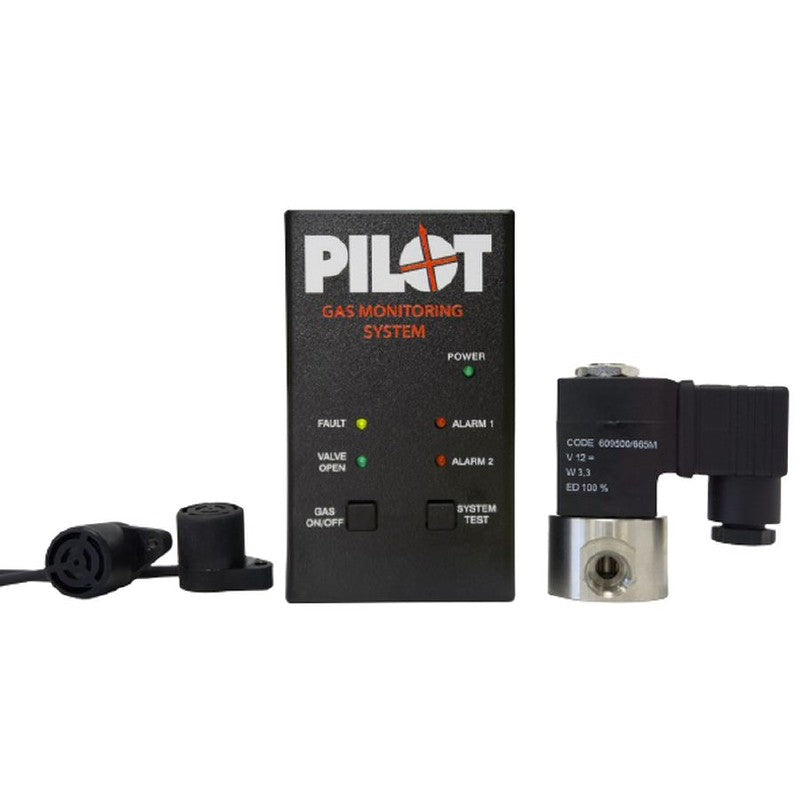

The system has a control box with indicator lights and test function, which emits an audible alarm, 2 sensors and a gas solenoid valve to be installed in the gas supply near the gas bottle.

Voltage: 12V
Current Draw: 90 mA in standby, 100 mA in event of alarm, 600mA with valve open
Sensitivity: Detects butane/propane at 25percent LEL lower explosive limit
Control Unit Size: W65 x H115 x D40mm

In the Box: Gas monitoring system/alarm, 2 x LPG sensors with 3.5m cable, Gas solenoid valve, User manual, Sensor information slip

Note: 12V Version
