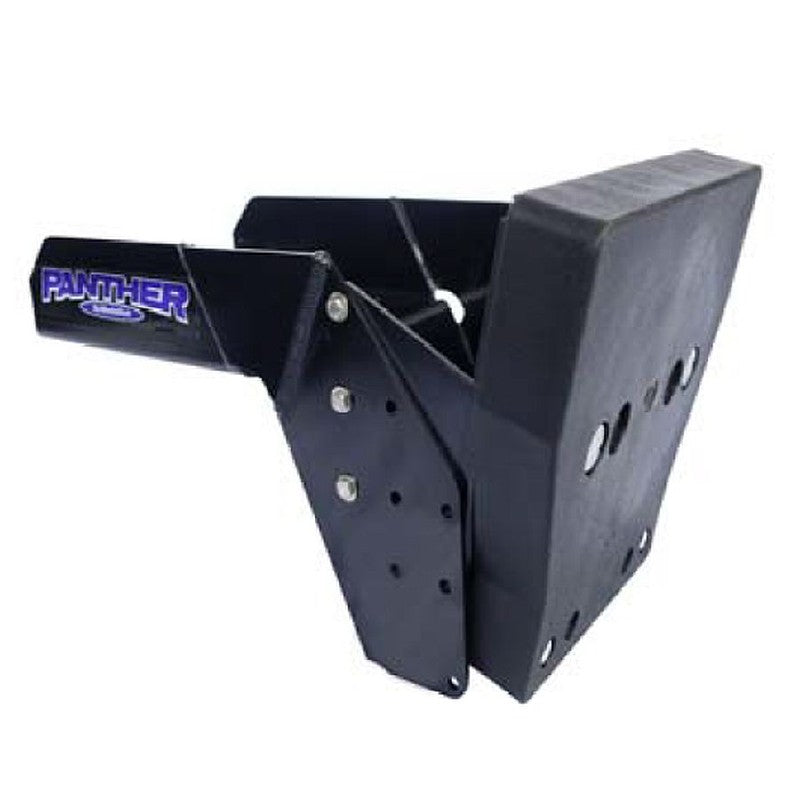

Panther Swim Platform Outboard Motor Bracket 20 HP

Adjustable outboard motor bracket designed to mount on most swim platforms.
Rated for 2 and 4 stroke motors up to 20HP.

Constructed of black powder coated aluminum and can be adjusted to fit most platform heights and motor shaft lengths for optimum prop depth and performance.

Comes complete with transom support bar for weight support and torque resistance.

Built extra tough and extra wide for auxiliary motors. Mounting board is 2 inches thick weatherproof and maintenance free polypropylene.
Adjustable for long or short shaft engines.
Position trim adjustment available by moving bolts on bracket.
Rated for outboards up to 20 HP.
Style: Adjustable 3 vertical running positions
4 inch Vertical Travel
Material: Powder coated aluminum body with polypropylene board.
Included Equipment: Motor safety cable
Requires: Mounting hardware ; stainless steel nuts and bolts
Setback: 9 3/4 inch in the top position and 12 inch in the lowest position.
Base footprint: approx. 12 inch x 12 inch
Mounting Holes: 8 pairs
Motor Mount Pad size: 11.5 inches wide x 10.750 inches high
Product weight: approx. 21 lbs.
