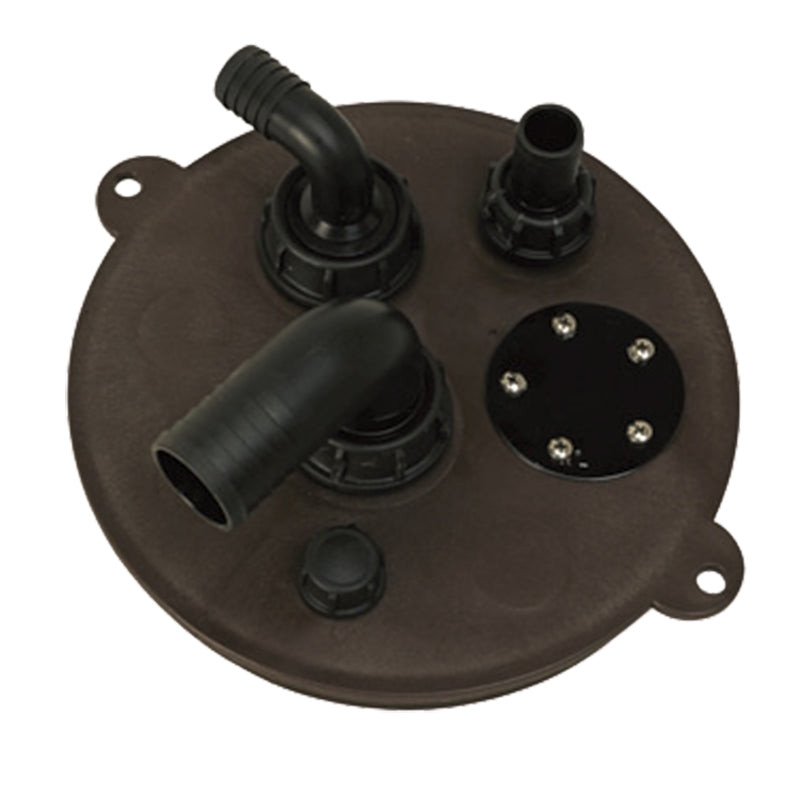

Nuova Rade Diablo Waste Tank Plate 230mm Deep Tanks
Tank top plate to pair with the 230mm deep Diablo fixed tanks for waste.
The plate manually screws onto the tank and is secured in position by a locking pin that prevents loosening. Tank cleaning is easy ~ just lift the locking pin and unscrew the hatch to leave easy access to the interior. The top plate is supplied with all the relevant hose connectors, caps and internal sealing gaskets and it is also suitable for the retro ~fitting of a sender for tank gauges not supplied. Fittings included:
2 x 90 degree x 38mm connectors, 1 1/2 inch thread
2 x 90 degree x 25mm connectors, 1 1/2 inch thread
1 x 90 degree x 25mm connector, 1 inch thread
1 x 90 degree x 20mm connector, 1 inch thread
1 x Gasket, 235mm x W17.5mm
1 x Internal outlet draw pipe length suitable for 230mm deep tanks This plate is for use with the Diablo waste tanks with a height of 230mm. Manufacturers Part No: 197489
The plate manually screws onto the tank and is secured in position by a locking pin that prevents loosening. Tank cleaning is easy ~ just lift the locking pin and unscrew the hatch to leave easy access to the interior. The top plate is supplied with all the relevant hose connectors, caps and internal sealing gaskets and it is also suitable for the retro ~fitting of a sender for tank gauges not supplied. Fittings included:
2 x 90 degree x 38mm connectors, 1 1/2 inch thread
2 x 90 degree x 25mm connectors, 1 1/2 inch thread
1 x 90 degree x 25mm connector, 1 inch thread
1 x 90 degree x 20mm connector, 1 inch thread
1 x Gasket, 235mm x W17.5mm
1 x Internal outlet draw pipe length suitable for 230mm deep tanks This plate is for use with the Diablo waste tanks with a height of 230mm. Manufacturers Part No: 197489
Nuova Rade Diablo Waste Tank Plate 230mm Deep Tanks
Our price£66.95
