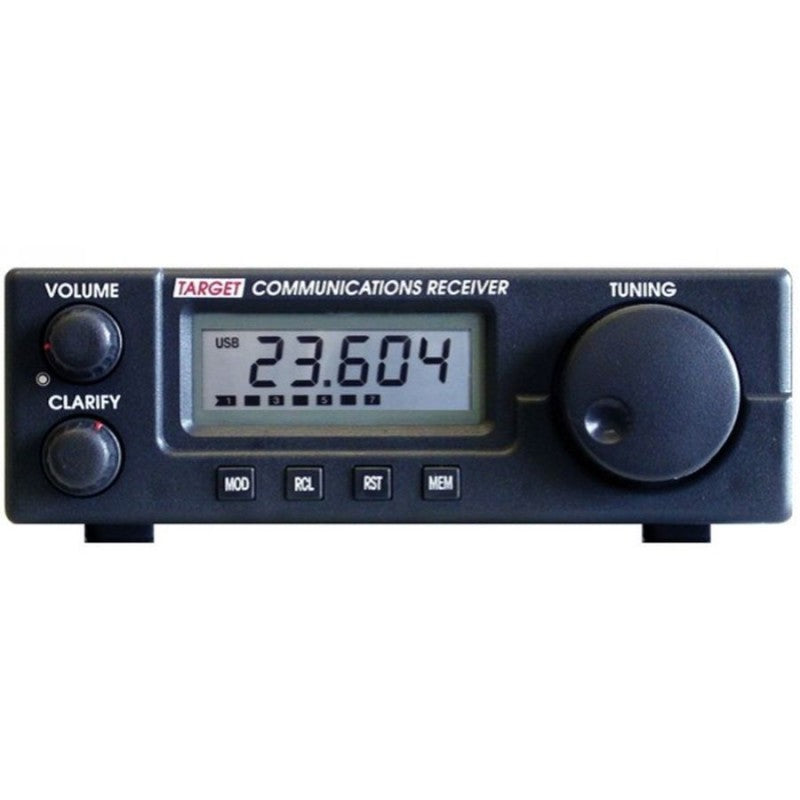

Nasa Marine Target HF3/P SSB Receiver

The Target HF3/P is a masterpiece of R. F. engineering covering the entire spectrum between 30Khz to 30Mhz. For those new to single side band reception the unit comes complete with everything needed to get on the air including a comprehensive instruction manual which includes a list of useful marine frequencies. Controls on the front of the receiver change reception mode, from a narrow filter for SSB reception to a wide filter which enables high quality audio signals to be heard from broadcast stations around the world. They also control ten memory channels to store your favourite frequencies. The large, clear liquid crystal display shows the precise frequency tuned to and there is no need for constant correcting with the tuning knob so often associated with SSB signals as the receiver is fully synthesized. TARGET HF3/P
It has a fixed level audio output to connect to third party weatherfax software. The receiver is supplied complete with a basic long wire antenna, 12 volt power cable and instruction book. Requires PC Windows XP to 7. Technical Specifications Signal level indicator
Fully synthesised
Frequency range ~ 30Khz ~ 30Mhz
Modes ~ USB/AM/LSB
Single side band ~ 3.8Khz wide
10 memory channels
AM ~ 6Khz wide
Audio output ~ 2 watts
Power supply ~ 12 volts DC
Power consumption ~ 300mA
Dimensions ~ Width 180mm, Height 58mm, Depth 170mm
