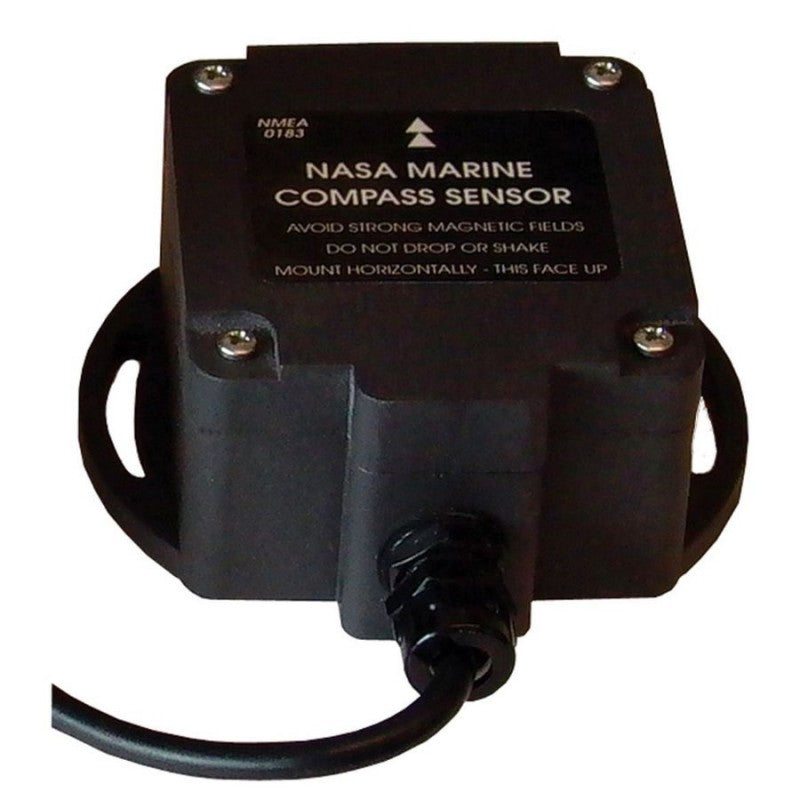

Nasa Marine NMEA Compass Sensor

Suits all the current Nasa Compass products, Clipper, Target, Cruiser etc. Note: WILL NOT suit older Nasa Compass products which do not use NMEA.
Features: 12v Operation
Provides 1Hz NMEA data output as HDG string This can be used as heading source for radar systems to allow North up or Course up display. Will also allow Radar overlay on combination Radar/ chartplotter systems. Can be used on certain chartplotters that will operate in Course Up mode. Please note, the output signal of this unit is approximately once per second, for Radar systems with MARPA target tracking, 10 times per second 10Hz is ideal. For 10Hz output, look at gyro stabilized systems. Complete with 10 metres of cable
Accuracy +/ ~ 2 degrees
Gimballed to +/ ~ 30 degrees
Output frequency 1Hz
Outputs NMEA 0183 sentence HDG
12V supply
Dimensions 72mm x 68mm x 40mm
Weight 475 grams including 10 metre cable
