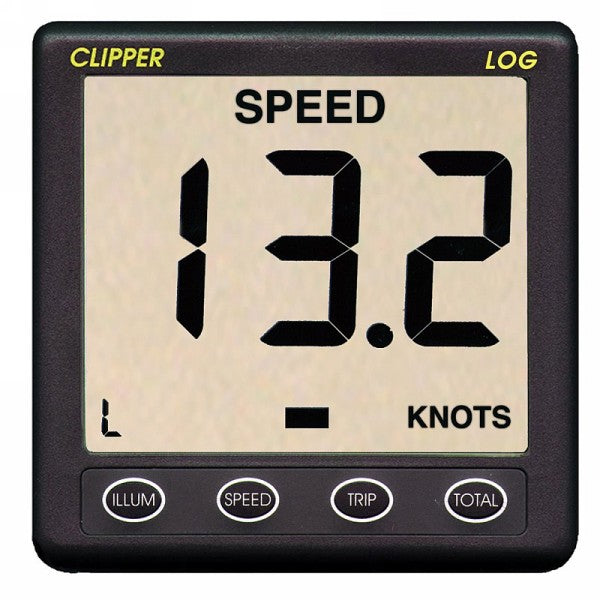

Nasa Marine Clipper Easy Log NMEA

The Log without a paddlewheel and no moving parts The Clipper EASYLOG shows speed, trip and total distance on a high visibility liquid crystal display. It utilises the RMC sentence from any GPS or plotter with an NMEA 0183 output. Alternatively the EASY LOG can repeat, using sentences VHW and VLW from an existing NMEA log. Technical Specifications 40mm high characters
Industry standard 110mm square case
Speed in Knots with 0.1 knot resolution
Trip in N.Miles with 0.1 N.Mile resolution
Total log up to 9999 N.Miles
20 levels of back lighting
Tactile keypad
Speed trend indicator
Current consumption 1.5mA at 12V 10mA with backlight
Opto isolated balanced NMEA input
Supplied complete with 10 metre cable and weather cover
