Multiflex SC-18 Steering Kit Includes Steering Wheel - 12ft

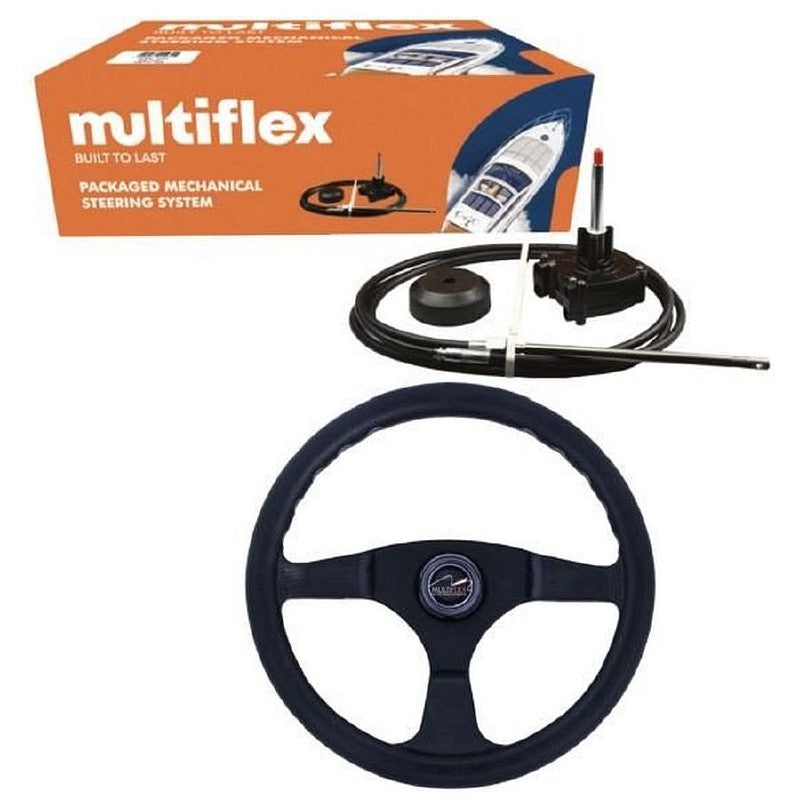

Multiflex Light 55 Steering System Kit
A mechanical rotary steering system designed for boats with small outboard engines up to 55hp.  The kit consists of the steering wheel, rotary helm, cable and dashboard bezel. The cables are available in various lengths from 8ft to 18ft in 1 ft increments. Supplied in a retail box.
LITE 55HP Steering System consists of :
Lite 55 Steering Helm: LM~H~201
Steering Cable : Part No: SC 18 ~XX ~ XX is the length of the cable
Bezel Kit : Included with the Helm
Steering Wheel : Alpha black steering wheel with built~in hub: LM~W~B1

Specifications

Helm Number of turns: 2.5
Max steering wheel diamater: 406mm
Helm Shaft length: 37.5mm
Maximum working load on tiller/engine end: 500 KG
Minimum cable bend radius: 250mm
