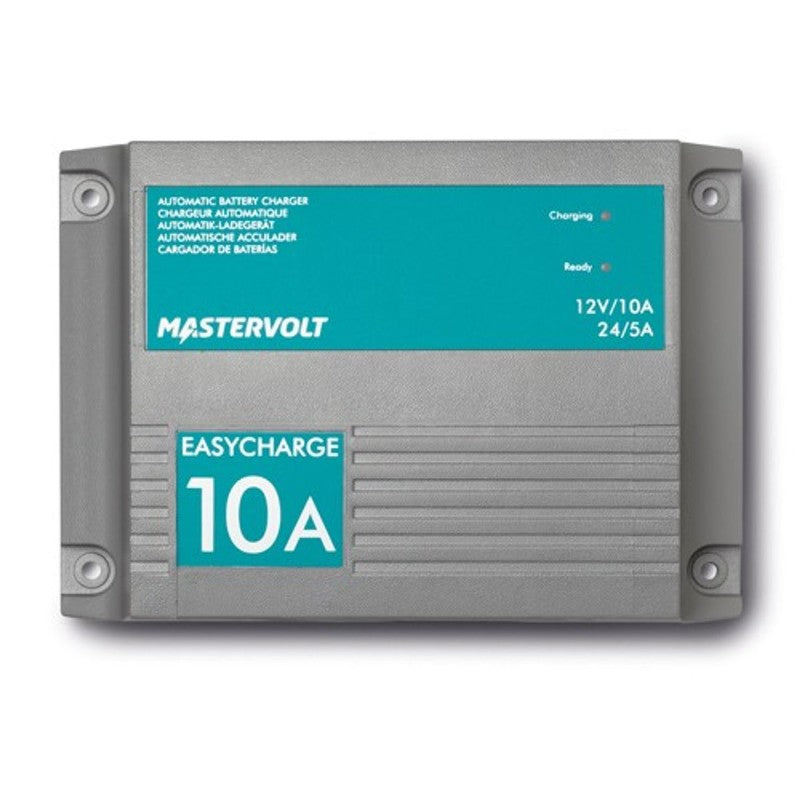

Mastervolt EasyCharge Battery Charger 10 Amp

The Mastervolt EasyCharge 43321002 is a fixed battery charger designed to be highly efficient
and simple to use, accepting a wide range of voltage inputs to be suitable for round the world use.

It is built to IP68 waterproofing standards, and is fully salt, shock and vibration tested. The charger is
fully sealed in an epoxy filled, non corrosive enclosure and the output is completely isolated.

The charger can be used in series or parallel connections to provide higher voltage or current, and
can charge wet, AGM and gel batteries.

General Specifications
Total charge current: 10 A at 12 V, 5 A at 24 V
Recommended battery capacity: charge based on 50 % discharged battery: to 120 Ah
Nominal input voltage: 120/230 V 90 ~265 V, 50/60 Hz
AC connection: 1.2 m 4 ft cable + UK plug
DC connection: ring terminals
Dimensions, hxwxd: 127 x 178 x 51mm 5 x 7 x 2 inch
Weight: 2.8 kg 6.2 lb
Approvals: CE, ABYC
Technical Specifications
Charge characteristic: IUoUo, automatic 3 ~step+ for Gel/AGM/flooded
Temperature range ambient temp.: ~20 °C to 40 °C ~4 °F to 104 °F
Protection degree: IP68
Protections: spark free, short circuit, reverse polarity, over voltage, current limited, over temperature
MasterBus compatible: no
