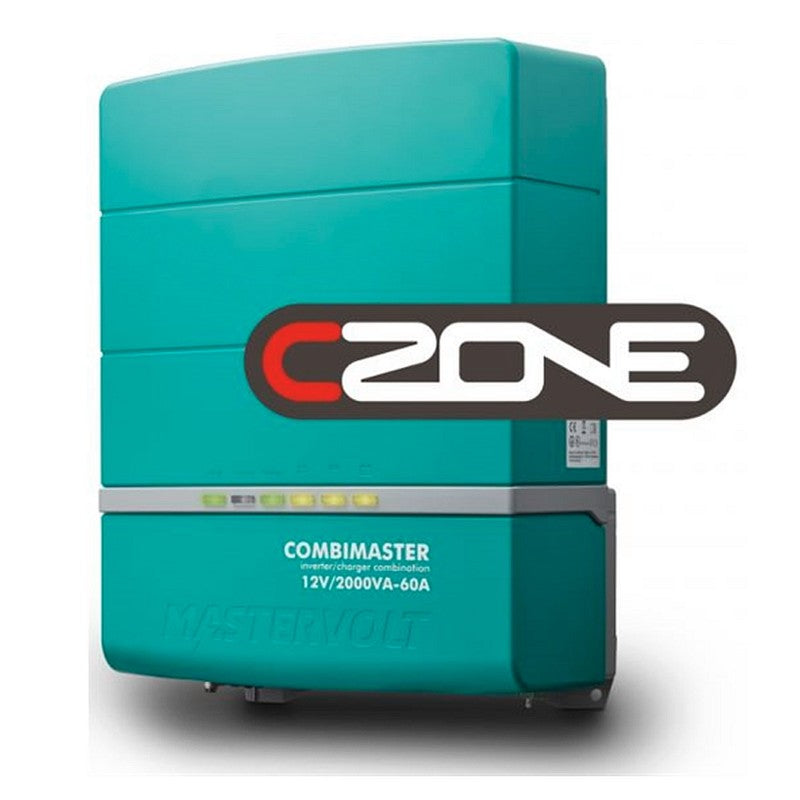

Mastervolt CombiMaster Inverter/Charger 12V / 2000VA / 60A
The Mastervolt CombiMaster range combines an intelligent 3 step battery charger providing fast and safe charging, along with a reliable true sine wave power inverter to provide AC output to operate household items. The unit can be connected up to shore power or generators for charging and the AC output will automatically switch between mains and inverter mode. The inverter/charger is built to be reliable and user friendly, with easy operation through MasterBus, CZone and NMEA 2000 communications, and with a wide range of control panels available.
The CombiMaster features the Power Assist function, which prevents main fuses or breakers being tripped in the event of a weak power supply. It also eliminates power failures and dips to maintain reliable performance. The unit is equally capable at handling heavy loads and more sensitive loads, and with a true sine wave output will not cause harm or damage to your appliances.
Specifications sine wave inverter
Nominal DC voltage: 12 V 10.2 ~16 V
Output voltage: 230 V
Output frequency: 50/60 Hz configurable
Output waveform: true sine
Continuous power at 40 °C / 104 °F, cos phi 1: 2000 VA / 1600 W
Peak power 30 sec: 3000 VA / 2400 W
Surge power 5 sec: 4000 VA / 3200 W
Max. efficiency: 93 %
Battery no~load power consumption: 30 W on mode / < 1 mA off mode
Energy saving mode consumption: 10 W
Synchronise with mains: yes
Specifications battery charger
Input voltage range: 170~280 V
Max. input current: 6 A (adjustable)
Max. charge current at 40 °C / 104 °F: 60 A at 14.25 V configurable
Battery temperature sensor: yes, included
Battery voltage sense: automatic compensation
Specifications transfer system
AC input: 25 A switched
AC output: 33 A
AC input fuse: yes
Transfer speed: 10 ms
Transfer voltage range: wide: 90~280 V / narrow: 170~280 V
Transfer frequency range: 40~65 Hz
General specifications
Galvanisedanic isolation: yes
Display/read~out: LED display
Dimensions, hxwxd: 371 x 284 x 155mm 14.6 x 11.2 x 6.1 inch
Weight: 6.9 kg 15.2 lb
Compliance: CE, E mark, AZ/NZS
Technical specifications
Charge characteristic: IUoUo, automatic / 3 ~step+ for flooded, Gel/AGM and MLI, configurable
Recommended battery capacity: 180 ~500 Ah based on gel batteries, may differ for other types
Ground relay: yes, configurable by means of mechanical jumper
Temperature range ambient temp.: ~25 °C to 60 °C, derating > 40 °C ~13 °F to 140 °F
Cooling: vario fan
Protection degree: IP23 vertical mounting
Safety class: IEC protection class I
Humidity protection: conformal coating, max. 95 % relative humidity, non condensing
Protections: over~temperature, overload, short circuit, high/low battery voltage
Power Assist: yes, supports AC input with power from the battery
Power Sharing: yes, allows you to select AC Input fuse setting
MasterBus compatible: yes
CZone / NMEA 2000 compatible: yes
The CombiMaster features the Power Assist function, which prevents main fuses or breakers being tripped in the event of a weak power supply. It also eliminates power failures and dips to maintain reliable performance. The unit is equally capable at handling heavy loads and more sensitive loads, and with a true sine wave output will not cause harm or damage to your appliances.
Specifications sine wave inverter
Nominal DC voltage: 12 V 10.2 ~16 V
Output voltage: 230 V
Output frequency: 50/60 Hz configurable
Output waveform: true sine
Continuous power at 40 °C / 104 °F, cos phi 1: 2000 VA / 1600 W
Peak power 30 sec: 3000 VA / 2400 W
Surge power 5 sec: 4000 VA / 3200 W
Max. efficiency: 93 %
Battery no~load power consumption: 30 W on mode / < 1 mA off mode
Energy saving mode consumption: 10 W
Synchronise with mains: yes
Specifications battery charger
Input voltage range: 170~280 V
Max. input current: 6 A (adjustable)
Max. charge current at 40 °C / 104 °F: 60 A at 14.25 V configurable
Battery temperature sensor: yes, included
Battery voltage sense: automatic compensation
Specifications transfer system
AC input: 25 A switched
AC output: 33 A
AC input fuse: yes
Transfer speed: 10 ms
Transfer voltage range: wide: 90~280 V / narrow: 170~280 V
Transfer frequency range: 40~65 Hz
General specifications
Galvanisedanic isolation: yes
Display/read~out: LED display
Dimensions, hxwxd: 371 x 284 x 155mm 14.6 x 11.2 x 6.1 inch
Weight: 6.9 kg 15.2 lb
Compliance: CE, E mark, AZ/NZS
Technical specifications
Charge characteristic: IUoUo, automatic / 3 ~step+ for flooded, Gel/AGM and MLI, configurable
Recommended battery capacity: 180 ~500 Ah based on gel batteries, may differ for other types
Ground relay: yes, configurable by means of mechanical jumper
Temperature range ambient temp.: ~25 °C to 60 °C, derating > 40 °C ~13 °F to 140 °F
Cooling: vario fan
Protection degree: IP23 vertical mounting
Safety class: IEC protection class I
Humidity protection: conformal coating, max. 95 % relative humidity, non condensing
Protections: over~temperature, overload, short circuit, high/low battery voltage
Power Assist: yes, supports AC input with power from the battery
Power Sharing: yes, allows you to select AC Input fuse setting
MasterBus compatible: yes
CZone / NMEA 2000 compatible: yes
Mastervolt CombiMaster Inverter/Charger 12V / 2000VA / 60A
Our price£1,161.82
RRP£1,366.85
