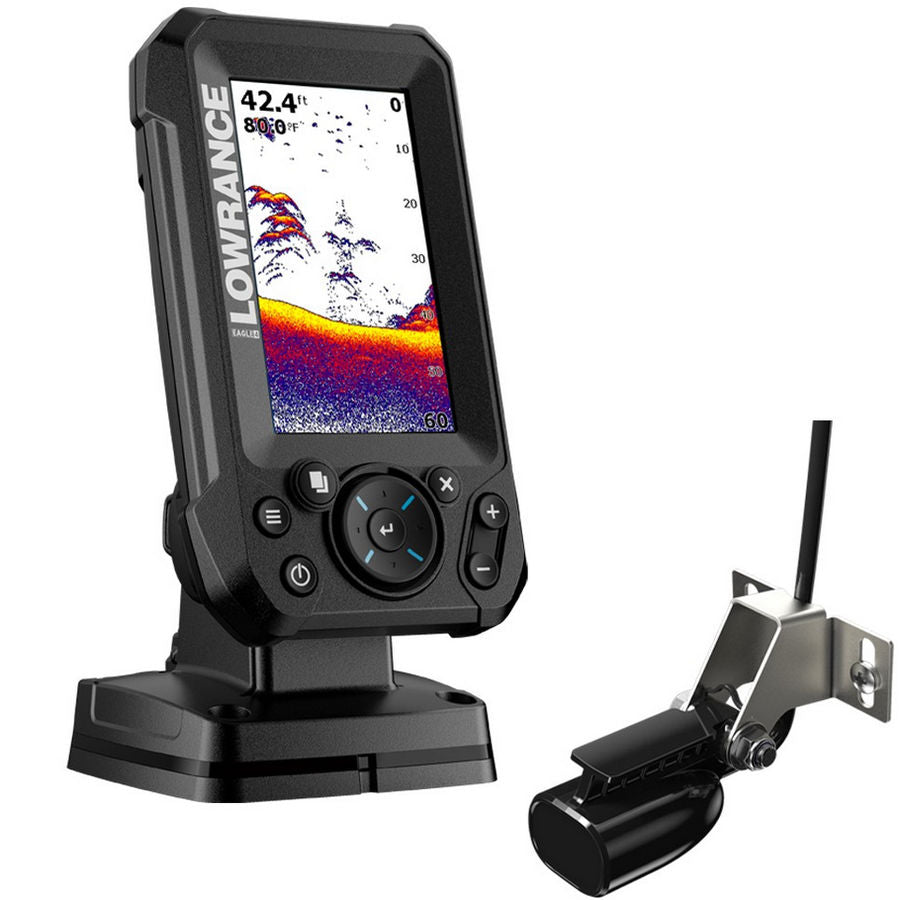

Lowrance Eagle 4x Fishfinder with Bullet Skimmer Transducer

The Eagle 4x provides a quick and easy solution for simple fishfinding. This portrait orientated display is ideal for kayaks and small fishing boats with limited space. With its wide-angle sonar, the Bullet Transducer provides more coverage of the water column with a continuous right to left scroll across the screen, making it easy to interpret and spot fish.

EASY TO USE SONAR

Bullet Skimmer – Cover more water in less time with wide-angle sonar, delivering double the coverage of most standalone fishfinders.
Autotuning Sonar - Simple autotuning sonar gives you the optimal settings from the start so you don’t have to spend time trying to find them yourself.

IPS screen, viewable from all angles, even in polarized glasses
New reliable twist-lock connector system for easy installation in any boat or kayak

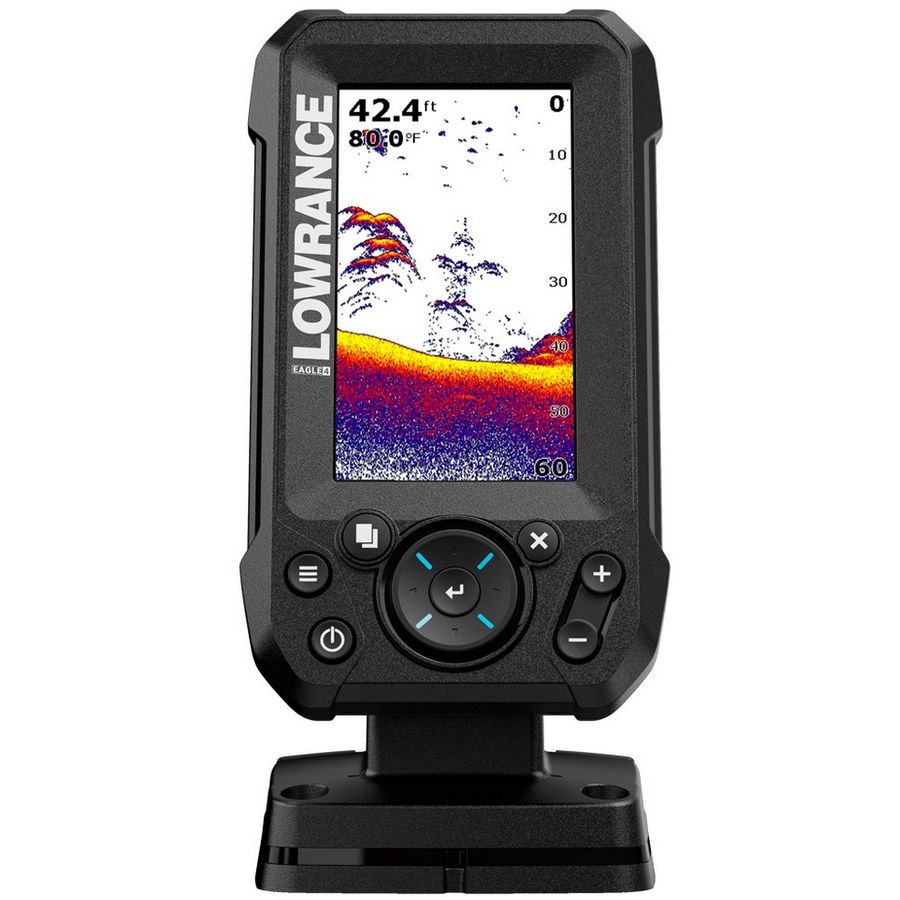

Portrait orientation
True scroll sonar

DESIGNED FOR FISHING

IPS SCREENS
See clearly wherever you go with a new IPS screen, offering improved resolution, clarity and visibility, even with polarized sunglasses in direct sunlight.

NEW CONNECTOR SYSTEM

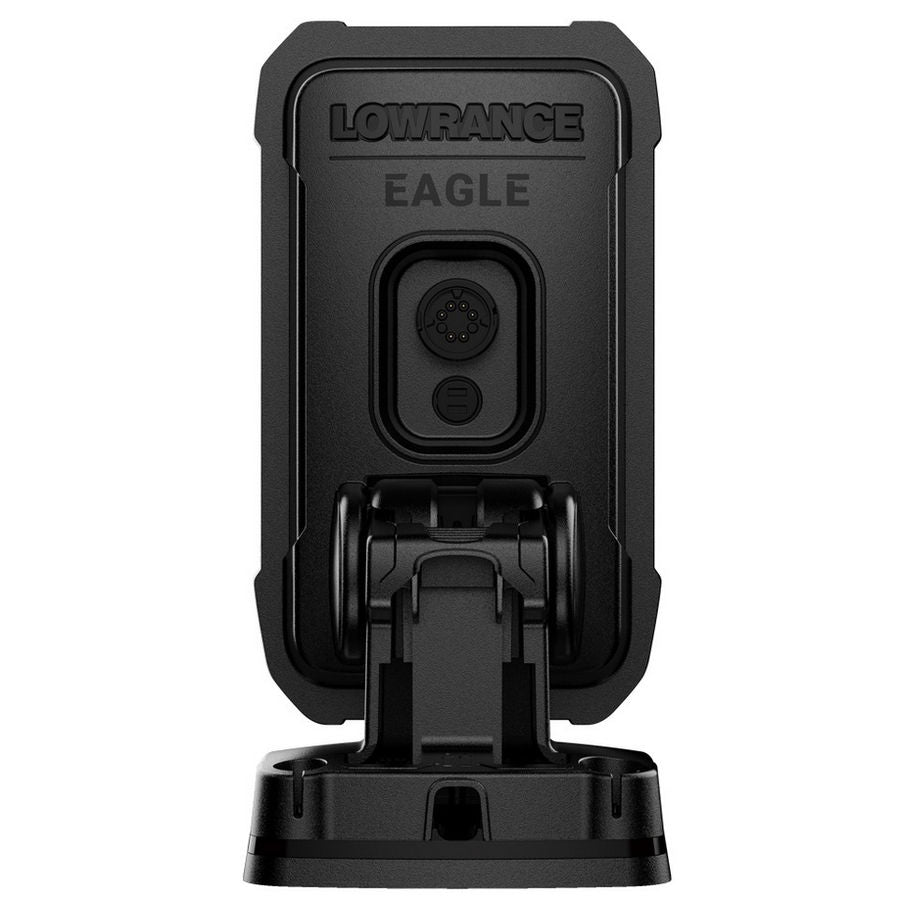

Set up in an instant with an improved twist-locking connector, promising an easy and reliable installation and removal every time.

Specifications

Dimensions (with Mounting bracket): 185.5H x 97.6W x 101.6D mm
Dimensions (withouth Mounting bracket): 167.9H x 97.6W x 70D
Waterproof rating: IPX7
Supply Voltage: 12VDC
Fuse Rating: 3A
Mounting: Panel or Bracket
Screen Resolution: 272 x 480 pixels
Viewing Angles in degrees: 80deg top/ bottom/ left / right
Max Depth:152m
Sonar Frequency: 200kHz
Transducer Cable length: 6m

In The Box

Eagle 4x
Bullet Transducer
Bullet/SplitShot™ Transom Bracket
Power Cable, with fuse and connectors
Eagle 4x Bracket
