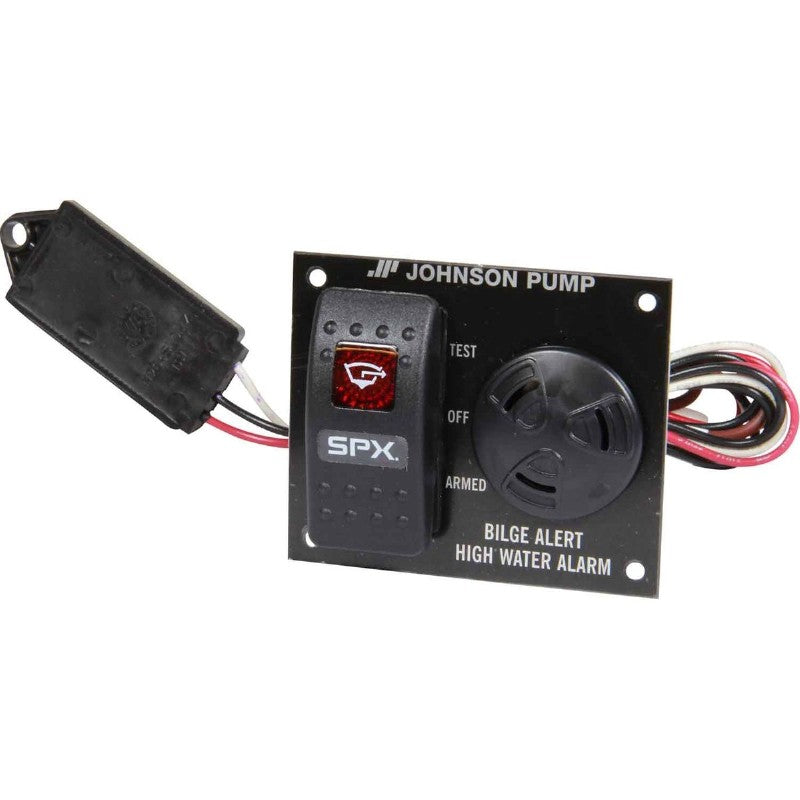

Johnson Bilge Alert - High Water Alarm and Switch

.Bilge Alert, A high water bilge alarm that detects water in the bilge and sends a signal to the loud alarm 100db, and to the LED warning light. Both are mounted on a panel which includes a rocker switch which allows the alarm to be tested or turned off and on. Using new digital technology, the detector is totally sealed and is not affected by oil or debris in the water.

12Volt
Full installation instructions
Dectector Alarm panel
Width 26 mm 63 mm
Height 5 mm 50 mm
Length 64 mm
Wire size 16 Ga. Tin coated
Housing ABS Thermoplastic
Wire length 762 mm
Passive amp 16 mA
Max amp 20A, 12 V/Max amp 10A, 24V
