Jabsco Neoprene Pin Drive Pump Impeller 6 Blades, 40mm OD x 19mm W

This impeller is for the following Jabsco pumps: 11260 ~200, 11260 ~205, 11260 ~2101, 11260 ~211, 11260 ~2151, 11260 ~2211, 11430 ~01, 11620 ~200, 11620 ~211, 11650 ~200, 17120 ~0001, 21130 ~200, 21130 ~200, 21130 ~2101, 21130 ~2101, 22230 ~200, 22230 ~200, 22350 ~200, 22350 ~200, 22820 ~2051, 22820 ~2101, 22830 ~2001, 22830 ~2051, 22830 ~2101, 22830 ~2151, 22830 ~2201, 22830 ~2301, 22940 ~2001,22940 ~2051, 22960 ~1001,22960 ~2001, 2760 ~0001, 29350 ~1001, 29350 ~1101, 4530 ~0001, 4780, 6640 ~200, 6640 ~205, 9360, 9430, 9430 ~01, 9430 ~21, 9430 ~211, 9430 ~51, 9560, AL 1/4" ~200 and AL 1/4" ~204.

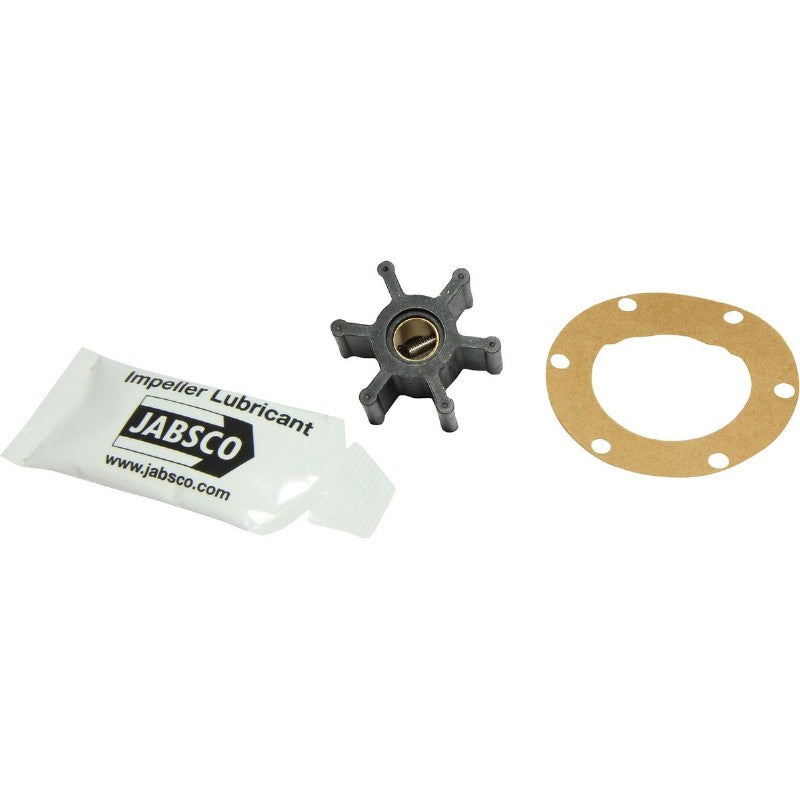

The Jabsco 4528 ~0001 ~P flexible neoprene impeller has 6 impeller blades, a slotted shaft pin drive and is supplied as an impeller kit, with gasket and lubricant.

The Jabsco neoprene flexible impellers are used for pumping fresh or salt water, neoprene impellers are the most commonly used material and is suitable for use where only small amounts of oil or diesel fuel are present.

The Jabsco 4528 ~0001 ~P Flexible Neoprene Impeller replaces the following Impellers:
Jabsco impellers: 4528 ~0001B and 4528 ~0003B
Johnson impeller: 09 ~806B
Volvo Penta impellers: 803729, 875807 ~0 and 876554 ~7
Perkins impeller: 24990272
Onan impeller: 132 ~0859
Sherwood impeller: 9979
Yanmar impeller: 104211 ~42070
Orbitrade Marine impeller: 8 ~24001

This impeller is also for use with the following marine engines:
Volvo Penta: MB10A, MD1, MD1A, MD1B, MD1KDH, MD1KDHY, MD1KDHY2, MD2BHY, MD6A, MD6B, MD7A, MD7B, MD2010 and MD2020.
Yanmar: 2GM20, 2GM20B, 2GM20C, 2GM20VE, 2QM (bilge pump), 2QM15, 2QM20 bilge pump, 3GM, 3GMD, 3GM30, 3GM30B, 3GM30C, 3GM30VE, 3QM bilge pump, 3QM30 bilge pump, SB8, SB8 ~CY, SB8 ~EX, SB8G ~CY, SB8G ~EX, SBF8, SBF8G, YSB8, YSB8 ~CY, YSB8 ~ECX, YSB8 ~R, YSB8G ~CY, YSB8G ~ECX, YSB8G ~R, YSBF8, YSBF8G, YSE8, YSE8L, YSM8, YSM8 ~J, YSM8 ~R, YSM8 ~Y, SB12, SB12 ~CY, SB12 ~EX, SB12G ~CY, SB12G ~EX, SBF12, SBF12G, YSB12, YSB12 ~CY, YSB12 ~ECX, YSB12 ~R, YSB12G ~CY, YSB12G ~ECX, YSB12G ~R, YSBF12, YSBF12G, YSE12 and YSE12L.

Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.
You should replace your flexible pump impellers at least once every year or sooner depending on use. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative rather than corrective maintenance.

This Impeller has a D profile.
