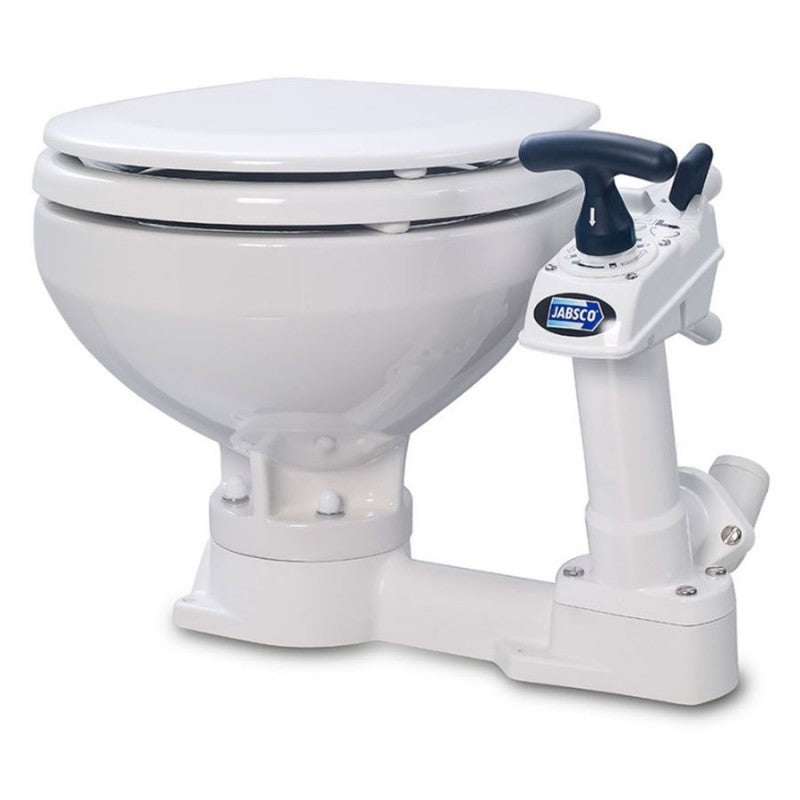

Jabsco Manual Toilet Twist N Lock Compact 29090-5000

The Jabsco Twist n Lock design uses a remodelled piston in the pump ~out assembly. At the end of normal pumping out, at the bottom of the pump stroke, the user simply turns the handle through 90 degrees which locks the piston down onto the base outlet valve keeping it securely shut. Turning the handle to the normal operating position opens the lock again. It is a simple and intuitive solution, yet means skippers can sleep easy in the knowledge that even in a big seaway, with a less than perfectly installed unit, no water, or worse, waste, will find its way into the cabin. White vitreous china bowl, enameled wooden seat and cover Reversible pump mounting for left or right ~handed installation Crevice ~free contours and smooth mouldings for added hygiene Multi ~angled discharge elbow for ease of installation Corrosion ~resistant materials for fresh or salt water service All fastenings face front or top for ease of maintenance Connections: ~ for 19mm bore inlet hose, 38mm bore discharge hose Dimensions: ~ 450mm wide, 410mm deep, 340mm high Weight: 10.80 Kgs 29090 ~5000
