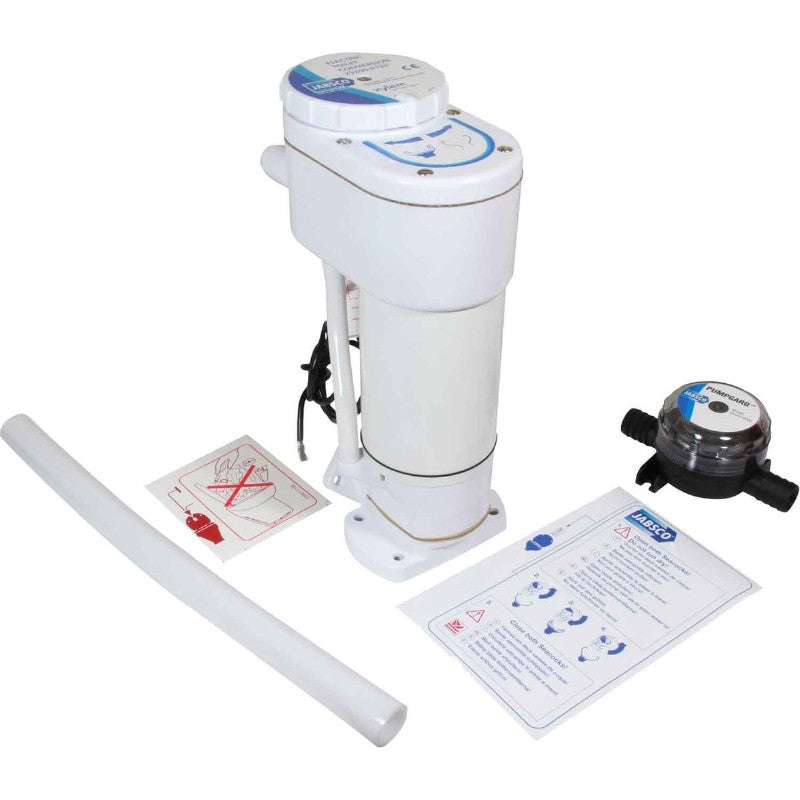

Jabsco Electric Toilet Conversion Kit for Manual Toilets 12v 29200-0120

Directly replaces manual pump assembly
Easy to Install
Simple to operate
Dual action control allows water level to be varied
Fits all Jabsco and Par 29090 and 29120 standard and large bowl toilets.
Suitable for use in above or below waterline installations
Built in macerator
Meets EN50081 ~2 for Electro Magnetic CompatabilityEMC
Meets ISO 8846 MARINE and USCG 183.410 for Ignition protection
Self priming up to 0.6m2ft
Waste pump discharges over an anti syphon loop up to 1.8m6ft and out of a through hull fitting down to 0.9m3ft below the surface
Typical power consumption is less than 1.0 amp haour12 Volt
Connections: ~ for 19mm 3/4in bore inlet hose. Uses existing discharge elbow and outlet hose on manual pump

Dimensions: ~ 270mm high, 87mm wide, 150mm deep
Fuse Size: ~ 25 amp
Fits standard and regular bowl, left and right ~handed installations
Simple rotary control for flush and discharge or discharge only
Self ~priming pumps permit installation above or below waterline
Manual pump easy to refit if power supply fails
Noise ~ This unit runs with a characteristic buzz
Packaged Dimensions: L:32.00 x H:17.00 x W:25.00cm Actual Weight: 3.66 Kg
