Isotherm Classic GE80 Fridge Kit
Convert a coolbox into a compressor cooled, thermostat regulated, fridge or freezer with the ability to freeze down to -18°C.
Designed for easy DIY installation thanks to the “click-on” mounting bracket system, the air-cooled compressor features a quiet running fan to blow air through the condenser to remove heat. The cooling pipes that connect the compressor to the cooling plate feature 'quick connect' fittings, so that you can connect the two items together without any loss of refrigerant. The unit comes pre-filled, and does not require filling after installation. It is advisable that the compartment that the compressor is installed in is well ventilated allowing cold air to enter from below and hot air to escape to the top. The evaporator plate, which is fitted in the coolbox, connects to the compressor with self-sealing quick couplings.
- Max Box Volume (for fridge use): 80Ltr
- Max Box Volume (for freezer use): 26Ltr

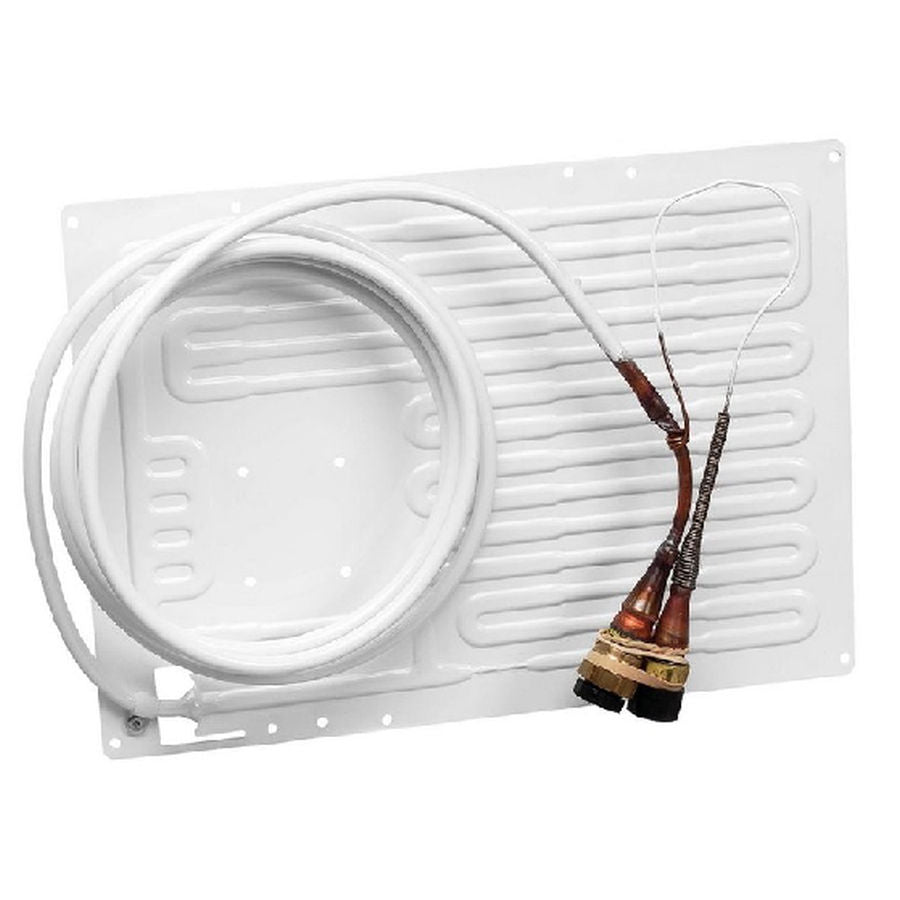

- Evaporator Plate: Flat
- Evaporator Plate Size: H350 x W250mm

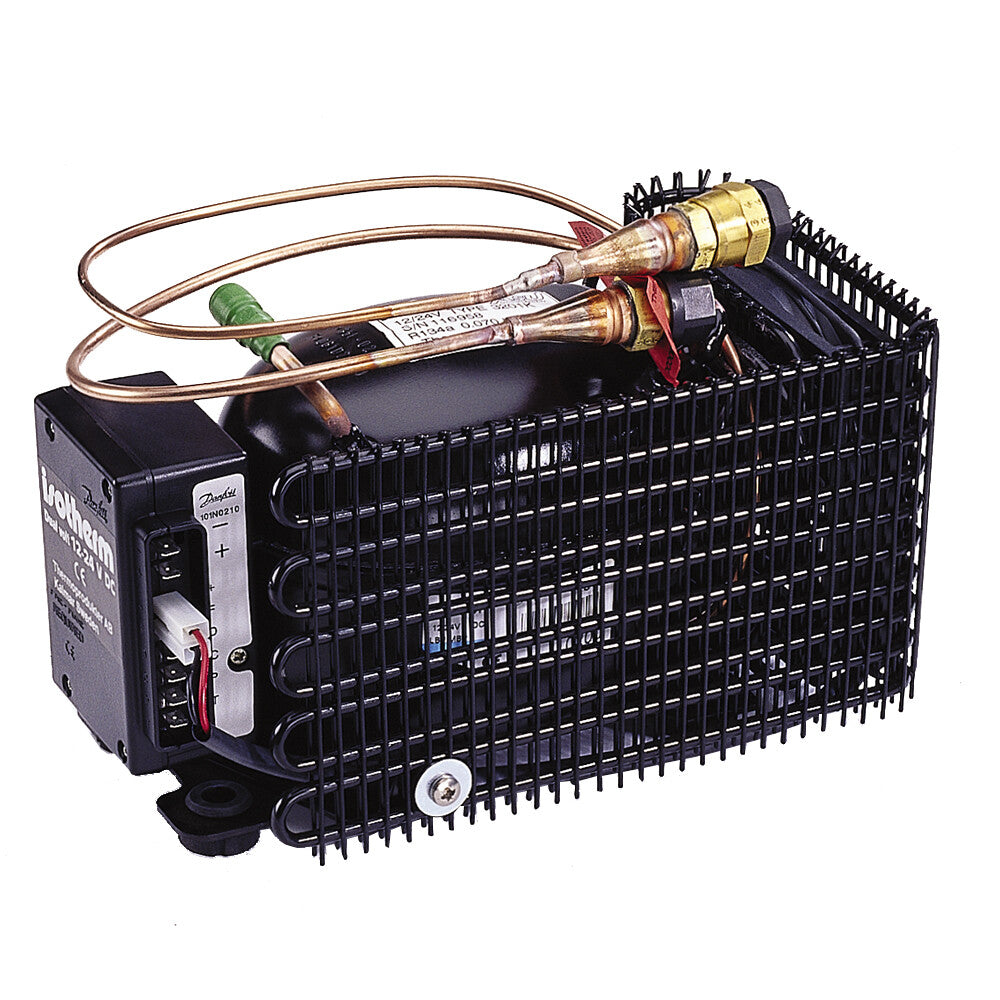

- Compressor Type: Danfoss/Secop BD35F
- Compressor Size: W 280mm x H 160mm x D 175mm
- Voltage: 12/24V
- Average power consumption: 0.6A - 3A (depending on box size and external temperature)
- Temperature Range: +2°C to -18°C
- Weight: 9kg

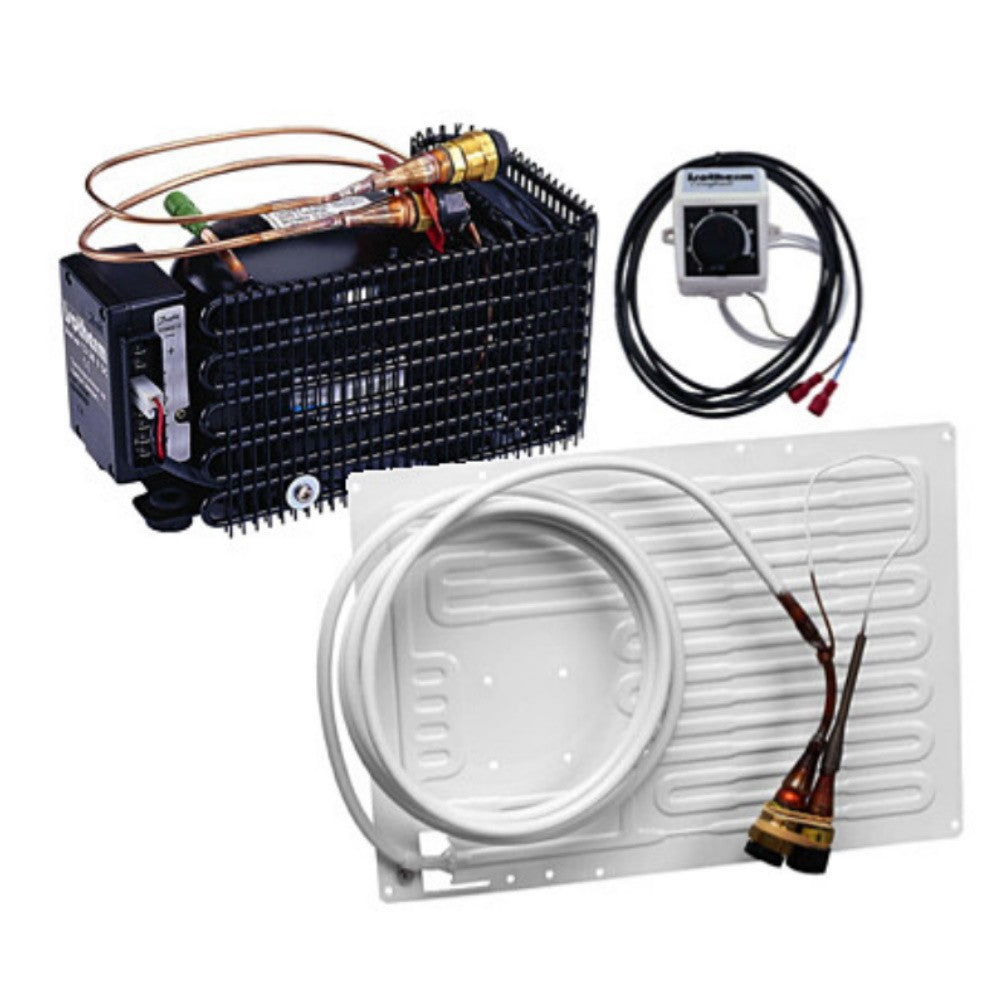

What's in the box?
- Flat evaporator plate
- Compressor unit
- Thermostat control unit
- Piping to connect the compressor to the cooling plate
Download the user manual here
