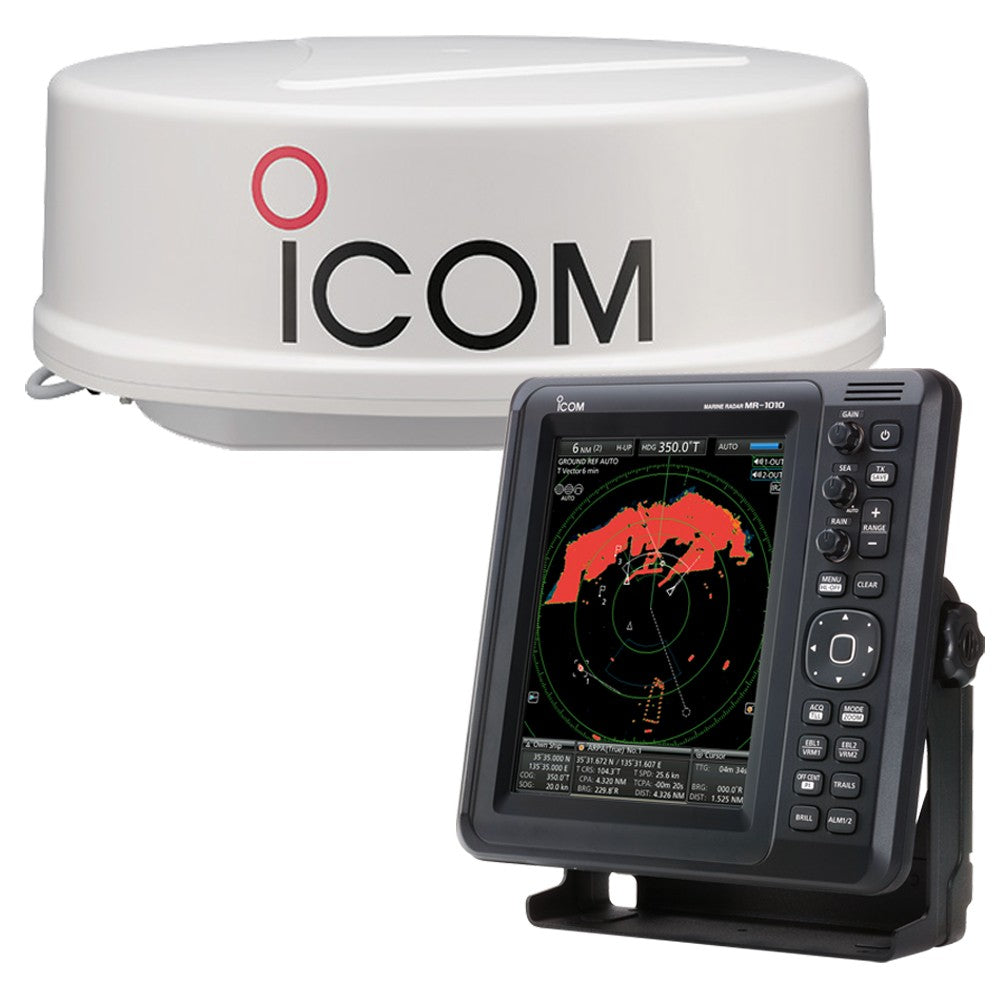

Icom MR-1010R2 Radar System

Icom Marine Radar MR-1010RII

• Simplified ARPA Function*
• DSC Information Function*
• AIS Overlay Function*
• Waypoint Indication*
• Two User programmable alarm zones
• 2 - 42V wide DC input
• 10.4 inch Colour TFT Display
• Intuitive User Interface
• Optional Video Output Unit
• 36 NM Range
• 4 kW Output Radome Scanner
• 15m Cable
• Multiple Languages

* External bearing, speed, position, waypoint, variation, AIS and DSC data is (are) required, when you use these functions.

Simplified ARPA (Automatic Radar Plotting Aids) Function*

The simplified ARPA function helps to prevent a collision risk with other vessels or objects. Up to five targets can be automatically tracked on the radar echo, when a target enters within the set watch area, (or up to ten targets can be tracked when manually set). By selecting one of the targets, the target information such as position, course, speed, CPA, TCPA, bearing, and distance is shown on the lower side of the display. When the target enters within the CPA and TCPA limits, an alarm message is displayed with a beep alarm.

* External bearing, speed and position data required

DSC (Digital Selective Calling) Information Function*

When connected to a DSC radio and a DSC call is received, the received message is transferred to the MR-1010RII. Up to 20 DSC messages can be plotted on the radar echo. If a MOB position information is transmitted from a DSC handheld transceiver (including Icom IC-M94D), the MR-1010RII can show the MOB waypoint on the radar echo to assist in search and rescue operation.

• External bearing, position and DSC data required

• TLL (Target Latitude Longitude) Function*

  The MR-1010RII can mark points with icons and transfer the position data with NMEA TLL sentences to other NMEA 0183 devices such as an external plotter.

  * External bearing and position data required.

  True Trail Function*

  The true trail function cancels own ship movement and shows true moving objects with trails, while static objects are not trailed.

  * External bearing and position data required.

  Specifications

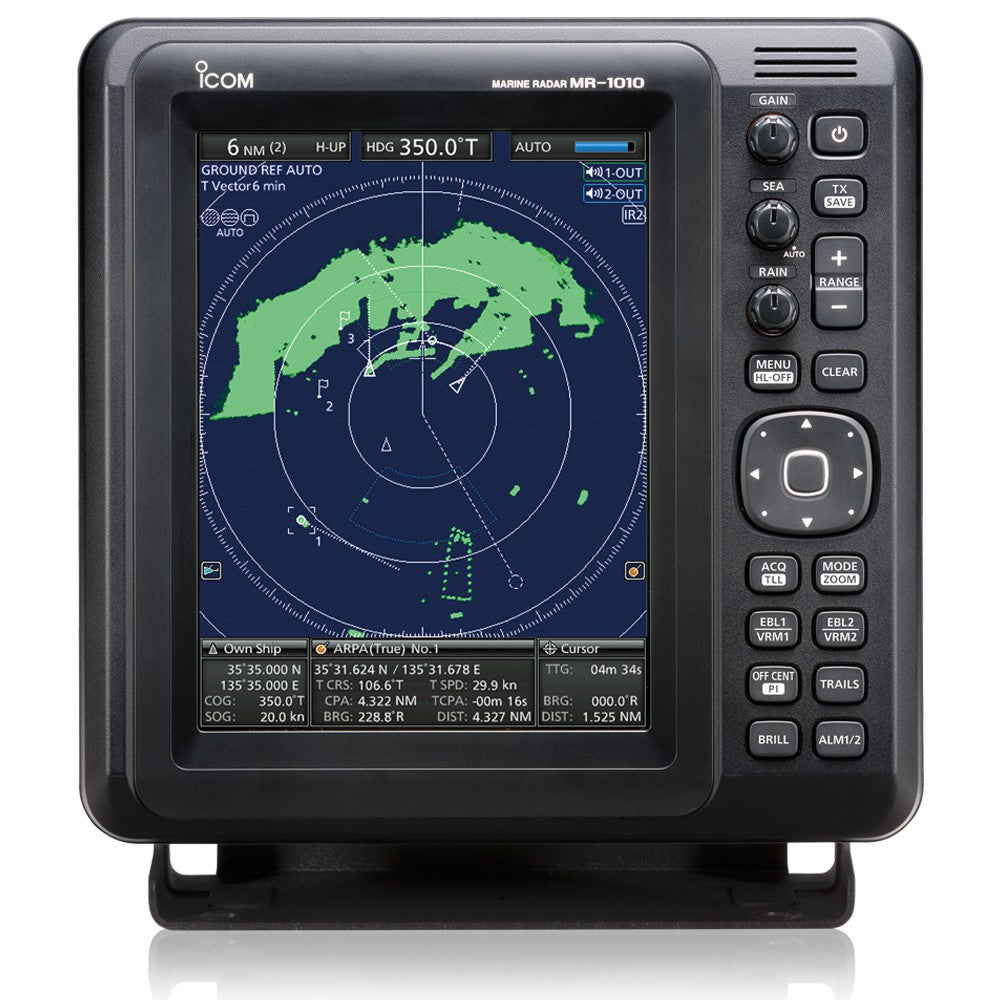

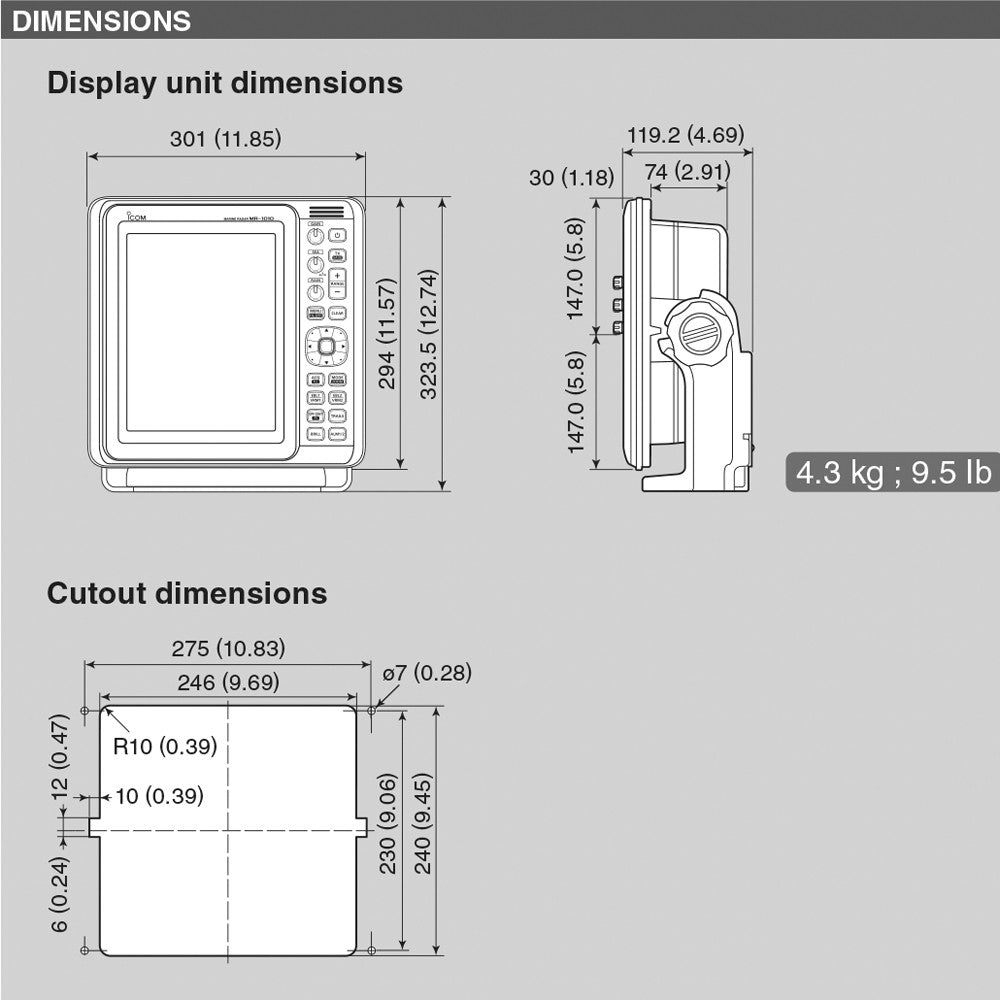

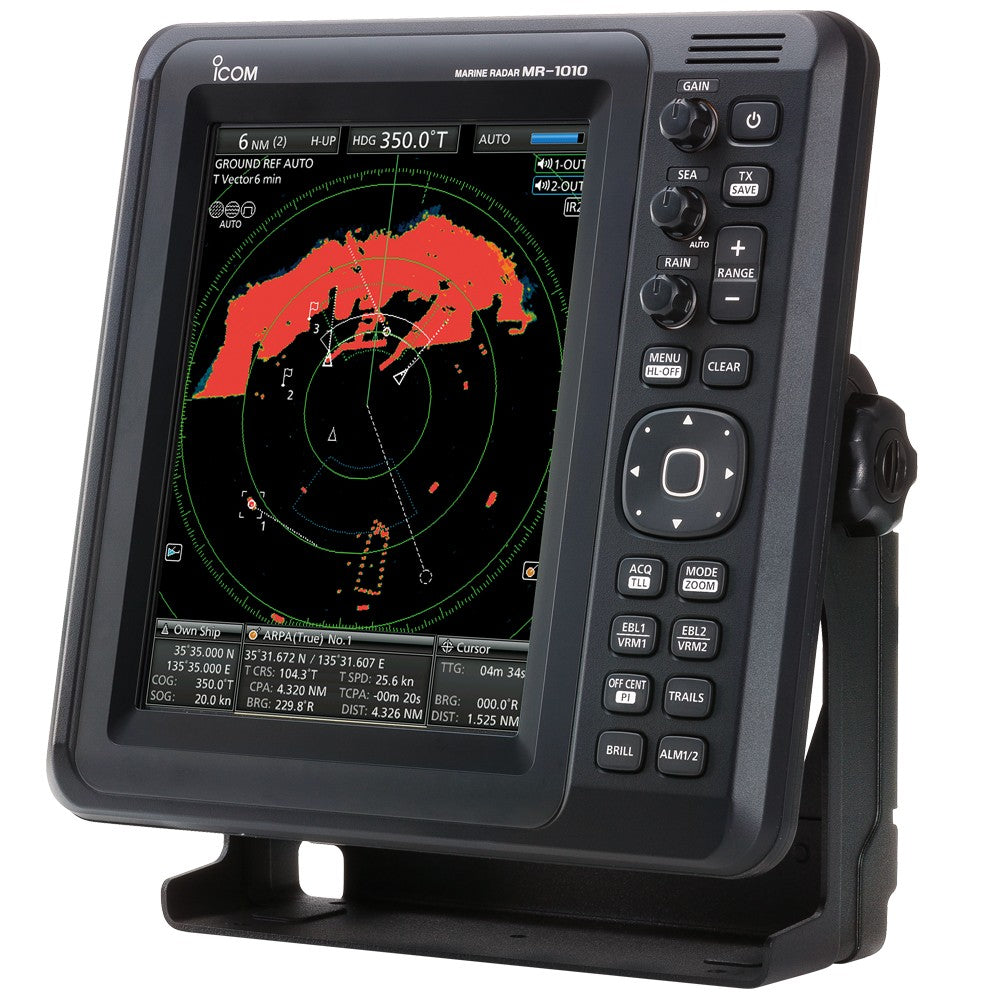

  Display Unit

  • Display type: 10.4-inch Color TFT LCD
  • Resolution: 480 × 640 pixels
  • Minimum range: 25 m; 82 ft (at 1⁄8 NM range)
  • Maximum range: 36 NM
  • Range scales: NM 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36
  • Preheat time: 90 seconds
  • Power supply 10.2–42 V DC
  • Power consumption: 55 W (approximately)
  • Usable temperature range: –15°C to +55°C; +5°F to +131°F
  • Input data format: NMEA 0183, N+1, AUX, IEC61162-2
  • Output data format: NMEA 0183
  • IP rating: IPX4 Water resistant

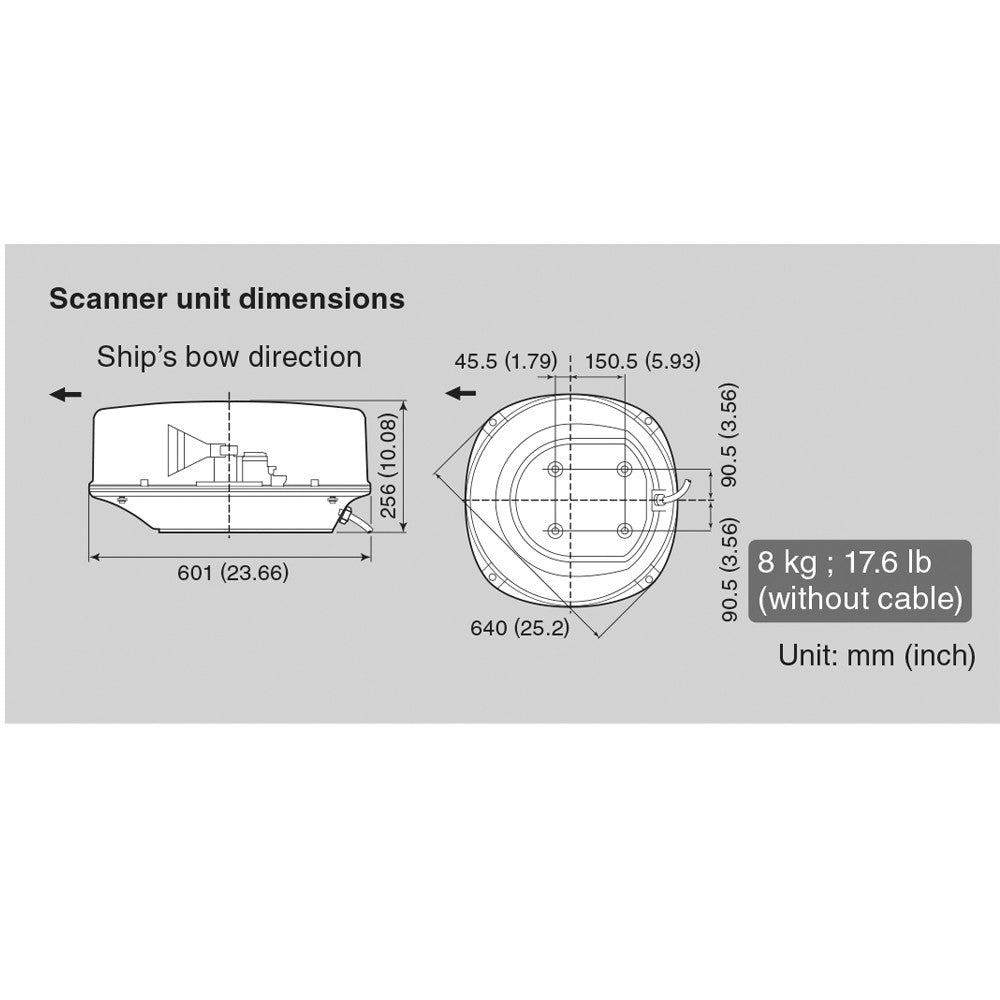

  Radome

  • Type: 60 cm; 2 ft radome scanner
  • Rotation speed: 24, 36, 48 rpm typ.
  • Horizontal beamwidth: 4° typ.
  • Vertical beamwidth: 22° typ.
  • Sidelobe:–22 dB typ.
  • Usable temperature range: –25°C to +70°C; –13°F to +158°F
  • Usable humidity range: Less than 95% (at 40°C; +104°F)
  • Frequency: 9410 MHz ±30 MHz
  • Modulation: P0N
  • Peak output power: 4 kW
  • Pulse-width/repetition rate: 80 ns/2160 Hz, 80 ns/1440 Hz, 250 ns/1440 Hz,
  • 350 ns/1440 Hz, 350 ns/720 Hz, 900 ns/720 Hz
  • Modulator: FET switching
  • Intermediate frequency: 60 MHz
  • IF bandwidth: 10 MHz, 3 MHz
  • Tuning: Auto/manual selectable
  • Supplied system cable: 15 m; 49.2 ft; OPC-2341
  • IP rating: IPX6 (Powerful jet water protection)

  In The Box

  • Display unit
  • Radome
  • 15m system cable
  • Fixing hardware
  • User documentation
