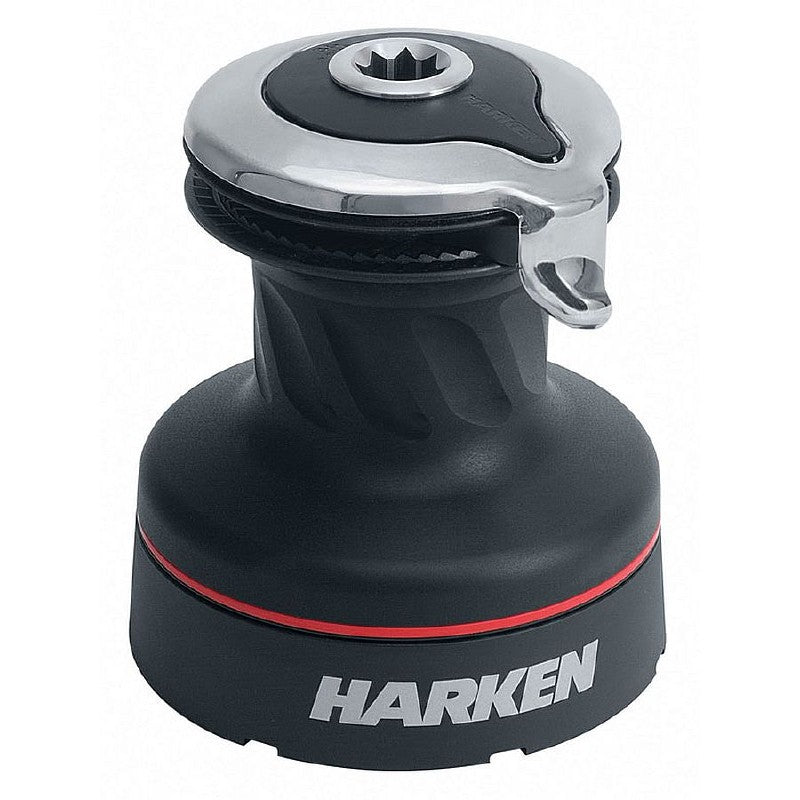

Harken Radial 35.2STA 2-Speed Self-Tailing Winch

Harken Radial Winches are designed for sailors who want lightweight, extremely strong winches with plenty of power. The drum's gripping surface is shaped for each winch size and drum material and features diagonal ribs rather than textured abrasive materials to maximize gripping power and greatly reduce wear. When easing, the angle of the ribs stops the line from rising, preventing overides and providing a smooth controlled release as the line exits the winch.

Aluminium drums and high strength composite self-tailing jaws and skirt save weight. Composite roller bearings reduce friction under load and don't require lubrication. Load-carrying gears and pins are 17-4PH stainless steel for strength and durability.

Easy To Service and Maintain
Winches can be disassambled and serviced on deck. The socket, washer and screw-top snap-fit together to simplify maintenance and for mistake-free assembly.

Weight Saving
Radial winches offer a 20-50 percent weight saving compared to the Classic Harken Line of winches.

- Weight kg 3.6 kg
- Maximum line ø mm 12 mm
- Fasteners mm 6 SH mm
- Fastener circle mm 123 mm
- Material Aluminum
- Configuration Self ~tailing
- Speed 2
- Drum ø mm 80 mm
- Base ø mm 149 mm
- Height mm 170 mm
- Line entry height mm 79 mm
- Min line ø mm 8 mm

- Number of fasteners 5
- Gear ratio ~ 1 2.13
- Gear ratio ~ 2 5.65
- Power ratio ~ 1 13.50
- Power ratio ~ 2 35.90
- Available power Manual
