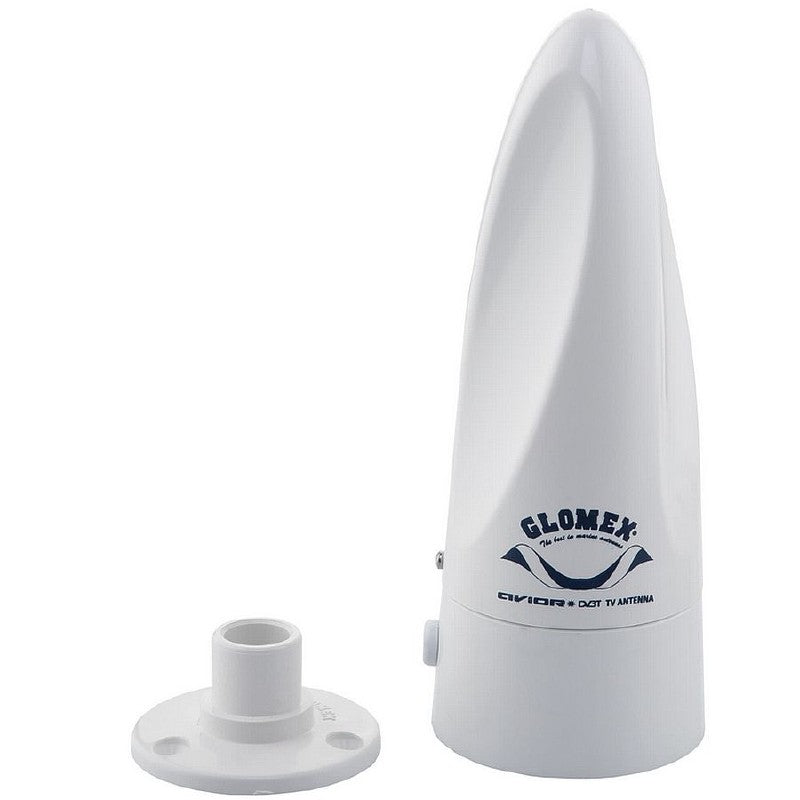

Glomex Avior Digital TV Antenna DVBT

The AVIOR has significantly improved in design and performance without losing its essential characteristics. It is suitable for sailing and motor boats. It has excellent reception, even while driving. This compact and lightweight TV antenna has a diameter of 100 mm and a height of 210 mm. It receives vertically and horizontally polarized TV signals.

The included combi box provides power and is also an antenna switch for a TV connection. To connect two televisions simultaneously, the optional antenna switch is needed. Supplied with coax cable 10 m, TV cable 1.5 m and base.

gain average: 25 dB
power supply: 12 V
diameter: 100 mm
height: 210 mm

Notes for installation: The antenna is powered by 12V on board power supply via the COAX antenna cable.
Please follow these instructions: BEFORE any work on the coax cable and connections between the antenna and the power amplifier input adapter V9114PI ~FM are made e.g. when working on the mast, make sure that the power supply is switched off!

Firstly, establish the connection between the antenna and the input adapter V9114PI ~FM. In the case that you don't use the original coax cable, make sure that the cable you use is clean and that there is no danger of short circuitBR>
Once the connection of the coax ~cable to the input adaptor V9114PI ~FM is completed, connect the 12 V power supply.
Do not screw a union nut on the DC IN voltage input of the adaptor V9114PI ~FM. Not following these instructions could make the warranty void!
Please note: Take into account that the antenna is powered via a Coax ~Antenna cable 12V. Act wisely and avoid short circuits. The operating voltage can be measured at the ANTENNA IN port input adaptor V9114PI ~FM. The current consumption of the working antenna is around 30mA.
