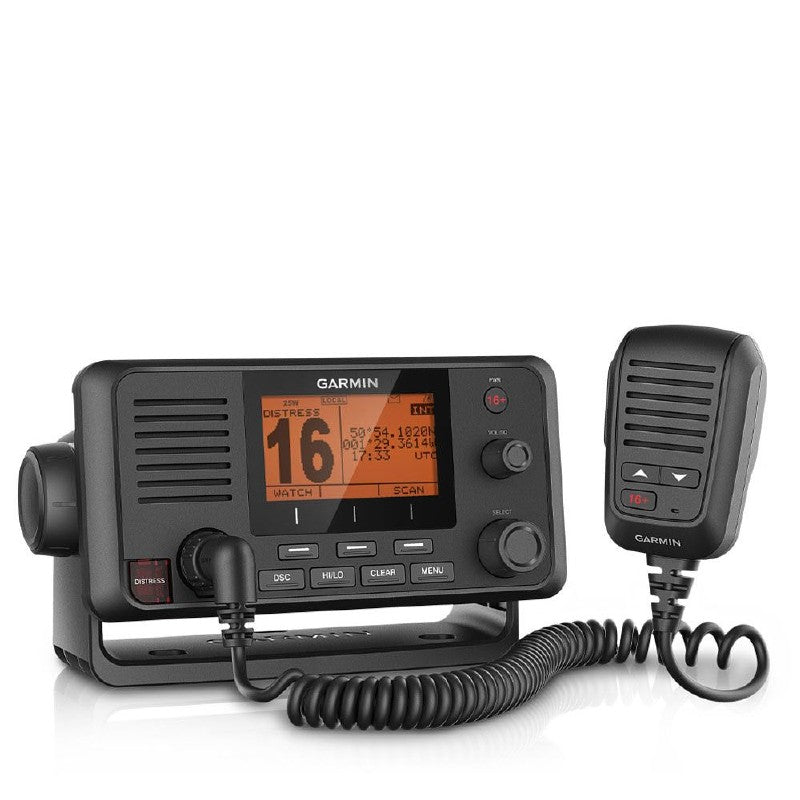

Garmin VHF 215i Marine Radio
VHF 215i is easy to install and use, and features a large, easy ~to ~read display. Just plug and play to compatible Garmin
chartplotters and MFDs via the NMEA 2000 network. It provides standard Class D DSC functionality distress calling and direct
calling with user ~programmed MMSI. The marine radio is preprogrammed with international marine channels. VHF 215i is also NMEA
0183 compatible, and its removable fist microphone can be relocated away from the radio. It's compatible with the GHS 11i second ~station handset.
Communicate with style
Because your helm is a source of pride, the VHF 215i marine radio is designed to complement the appearance of GPSMAP 7x2/9x2,
10x2/12x2, 7400/7600 series chartplotters and GPSMAP 8400/8600 series MFDs.
Unit dimensions: 9.8 x 19.7 x 14.9 cm
Weight: Radio without microphone 1.2 kg; Microphone 0.25 kg
Water rating: IPX7
Temperature range: Operating from ~15C to 70C; Storage from ~20C to 70C
Compass ~safe distance: 75 cm
NMEA 2000: Yes
NMEA 0183: Yes
Digital selective calling: Class D
Frequency Bands: All international marine channels
Operating voltage: 12.0 Vdc
Current draw: Standby 350 mA; Receive 600 mA; Transmit from 2.0 A to 6.0 A from 1 W to 25 W
Frequency range: 156.050 MHz to 163.275 MHz including WX channels
Hailer output power: 20 W at 4 ohms
Hailer horn impedance: 4 ohms
External speaker impedance: 4 ohms
Antenna connector: S0 ~239 50 ohms
Maximum antenna gain: 9 dBi
Stay in contact on the water
Standard Class D Digital Selective Calling DSC functionality distress calling and direct calling with user ~programmed MMSI
25 ~watt transmit power with built ~in GPS
Compatible with the GHS 11i second ~station handset
Preprogrammed with international marine channels
Removable fist microphone handset can be relocated away from the radio
Easy plug ~and ~play installation to compatible chartplotters and MFDs via the NMEA 2000 network
Communication is critical on the water. This easy ~to ~install fixed ~mount VHF 215i radio enhances communication to help stay in
contact with the shore and other boats in the area.
Increase peace of mind
During an emergency situation, the 25 ~watt transmit power of VHF 215i gives fishermen, sailors and cruisers confidence at their
fingertips.
Communicate confidently on the water
VHF 215i is easy to install and use, and features a large, easy ~to ~read display. Just plug and play to compatible Garmin chartplotters
and MFDs via the NMEA 2000 network. It provides standard Class D DSC functionality distress calling and direct calling with user ~programmed
MMSI. The marine radio is preprogrammed with international marine channels. VHF 215i is also NMEA 0183 compatible, and its removable fist
microphone can be relocated away from the radio. It's compatible with the GHS 11i second ~station handset.
Communicate with style
Because your helm is a source of pride, the VHF 215i marine radio is designed to complement the appearance of GPSMAP® 7x2/9x2, 10x2/12x2,
7400/7600 series chartplotters and GPSMAP 8400/8600 series MFDs.
In The Box
VHF 215i marine radio
Hailer NMEA 0183 cable
Power cable
Bail mount with knobs and mounting hardware
Flush mount gasket
Marine mounting screws
Mic hanger
Protective cover
Removable fist mic
Documentation
chartplotters and MFDs via the NMEA 2000 network. It provides standard Class D DSC functionality distress calling and direct
calling with user ~programmed MMSI. The marine radio is preprogrammed with international marine channels. VHF 215i is also NMEA
0183 compatible, and its removable fist microphone can be relocated away from the radio. It's compatible with the GHS 11i second ~station handset.
Communicate with style
Because your helm is a source of pride, the VHF 215i marine radio is designed to complement the appearance of GPSMAP 7x2/9x2,
10x2/12x2, 7400/7600 series chartplotters and GPSMAP 8400/8600 series MFDs.
Unit dimensions: 9.8 x 19.7 x 14.9 cm
Weight: Radio without microphone 1.2 kg; Microphone 0.25 kg
Water rating: IPX7
Temperature range: Operating from ~15C to 70C; Storage from ~20C to 70C
Compass ~safe distance: 75 cm
NMEA 2000: Yes
NMEA 0183: Yes
Digital selective calling: Class D
Frequency Bands: All international marine channels
Operating voltage: 12.0 Vdc
Current draw: Standby 350 mA; Receive 600 mA; Transmit from 2.0 A to 6.0 A from 1 W to 25 W
Frequency range: 156.050 MHz to 163.275 MHz including WX channels
Hailer output power: 20 W at 4 ohms
Hailer horn impedance: 4 ohms
External speaker impedance: 4 ohms
Antenna connector: S0 ~239 50 ohms
Maximum antenna gain: 9 dBi
Stay in contact on the water
Standard Class D Digital Selective Calling DSC functionality distress calling and direct calling with user ~programmed MMSI
25 ~watt transmit power with built ~in GPS
Compatible with the GHS 11i second ~station handset
Preprogrammed with international marine channels
Removable fist microphone handset can be relocated away from the radio
Easy plug ~and ~play installation to compatible chartplotters and MFDs via the NMEA 2000 network
Communication is critical on the water. This easy ~to ~install fixed ~mount VHF 215i radio enhances communication to help stay in
contact with the shore and other boats in the area.
Increase peace of mind
During an emergency situation, the 25 ~watt transmit power of VHF 215i gives fishermen, sailors and cruisers confidence at their
fingertips.
Communicate confidently on the water
VHF 215i is easy to install and use, and features a large, easy ~to ~read display. Just plug and play to compatible Garmin chartplotters
and MFDs via the NMEA 2000 network. It provides standard Class D DSC functionality distress calling and direct calling with user ~programmed
MMSI. The marine radio is preprogrammed with international marine channels. VHF 215i is also NMEA 0183 compatible, and its removable fist
microphone can be relocated away from the radio. It's compatible with the GHS 11i second ~station handset.
Communicate with style
Because your helm is a source of pride, the VHF 215i marine radio is designed to complement the appearance of GPSMAP® 7x2/9x2, 10x2/12x2,
7400/7600 series chartplotters and GPSMAP 8400/8600 series MFDs.
In The Box
VHF 215i marine radio
Hailer NMEA 0183 cable
Power cable
Bail mount with knobs and mounting hardware
Flush mount gasket
Marine mounting screws
Mic hanger
Protective cover
Removable fist mic
Documentation
