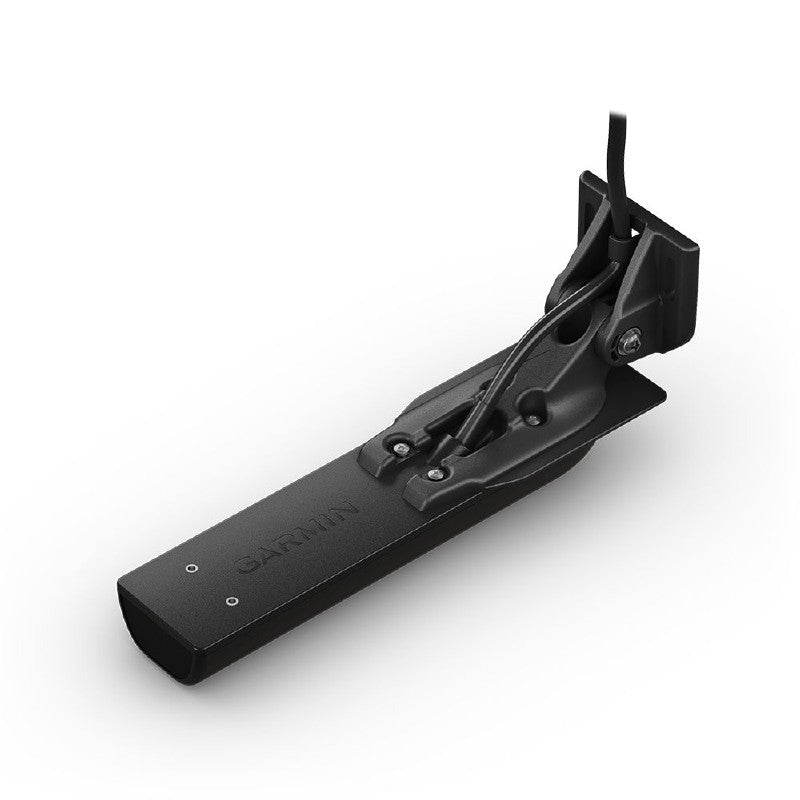

Garmin GT56UHD-TM 12 Pin Transom Mount Transducer
This all in one transducer offers ultimate versatility, featuring Ultra High~Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar and more, so you can spend more time catching fish.
Frequency: Traditional High~wide CHIRP 150 to 240 kHz; ClearVü/SideVü 455 kHz 425 to 485 kHz, 800 kHz 790 to 850 kHz, 1000 kHz 940 to 1100
Power: Traditional 350 W; ClearVü/SideVü 500 W
BeamwidthTraditional CHIRP: 24 ~16
Beamwidth ClearVü: 0.52 x 52 at 1000 kHz, 0.64 x 35 at 800 kHz, 1.1 x 52 at 455 kHz
Beamwidth SideVü: 0.52 x 52 at 1000 kHz, 0.64 x 35 at 800 kHz,1.1 x 52 at 455 kHz
Maximum depth: Traditional: 244 m freshwater; ClearVü: 122 m; SideVü: 152 m
Depth/Speed/Temperature: Depth and temperature
Number of pins: 12
Cable length: 7.62 m
Supported deadrise/transom angles: 0° to 70° degree transom
Less time finding. More time fishing
See everything below and around your boat with Ultra High~Definition scanning sonar.
High wide CHIRP traditional sonar delivers target separation like no other.
Multiple sonar frequencies have you covered no matter what depth you’re fishing.
See targets and structure in bright, vivid colour.
Mount this transducer your way transom or trolling motor.
Ultra High~Definition Clearvü Scanning Sonar
Get brilliant image clarity of structure and fish below your boat at greater depths than other high~frequency scanning sonars. It puts more power on targets via a downward~facing element.
Ultra High~Definition Sidevü Scanning Sonar
See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has 20 percent greater range at 1,000 kHz, so you can see even farther than before.
High Wide Chirp Traditional Sonar
Experience remarkably clear target separation and definition up to 244 m 800 feet below your boat.
Multiple Scanning Sonar Frequencies
Use the perfect frequency for the waters you’re fishing. This transducer delivers 455 kHz, 800 kHz and 1,000 kHz for top performances at all depths.
Vivid Colour Palettes
High~contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.
Mounting Options
Everyone’s setup is different. That’s why we’ve included transom and trolling motor mounting hardware.
Frequency: Traditional High~wide CHIRP 150 to 240 kHz; ClearVü/SideVü 455 kHz 425 to 485 kHz, 800 kHz 790 to 850 kHz, 1000 kHz 940 to 1100
Power: Traditional 350 W; ClearVü/SideVü 500 W
BeamwidthTraditional CHIRP: 24 ~16
Beamwidth ClearVü: 0.52 x 52 at 1000 kHz, 0.64 x 35 at 800 kHz, 1.1 x 52 at 455 kHz
Beamwidth SideVü: 0.52 x 52 at 1000 kHz, 0.64 x 35 at 800 kHz,1.1 x 52 at 455 kHz
Maximum depth: Traditional: 244 m freshwater; ClearVü: 122 m; SideVü: 152 m
Depth/Speed/Temperature: Depth and temperature
Number of pins: 12
Cable length: 7.62 m
Supported deadrise/transom angles: 0° to 70° degree transom
Less time finding. More time fishing
See everything below and around your boat with Ultra High~Definition scanning sonar.
High wide CHIRP traditional sonar delivers target separation like no other.
Multiple sonar frequencies have you covered no matter what depth you’re fishing.
See targets and structure in bright, vivid colour.
Mount this transducer your way transom or trolling motor.
Ultra High~Definition Clearvü Scanning Sonar
Get brilliant image clarity of structure and fish below your boat at greater depths than other high~frequency scanning sonars. It puts more power on targets via a downward~facing element.
Ultra High~Definition Sidevü Scanning Sonar
See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has 20 percent greater range at 1,000 kHz, so you can see even farther than before.
High Wide Chirp Traditional Sonar
Experience remarkably clear target separation and definition up to 244 m 800 feet below your boat.
Multiple Scanning Sonar Frequencies
Use the perfect frequency for the waters you’re fishing. This transducer delivers 455 kHz, 800 kHz and 1,000 kHz for top performances at all depths.
Vivid Colour Palettes
High~contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.
Mounting Options
Everyone’s setup is different. That’s why we’ve included transom and trolling motor mounting hardware.
