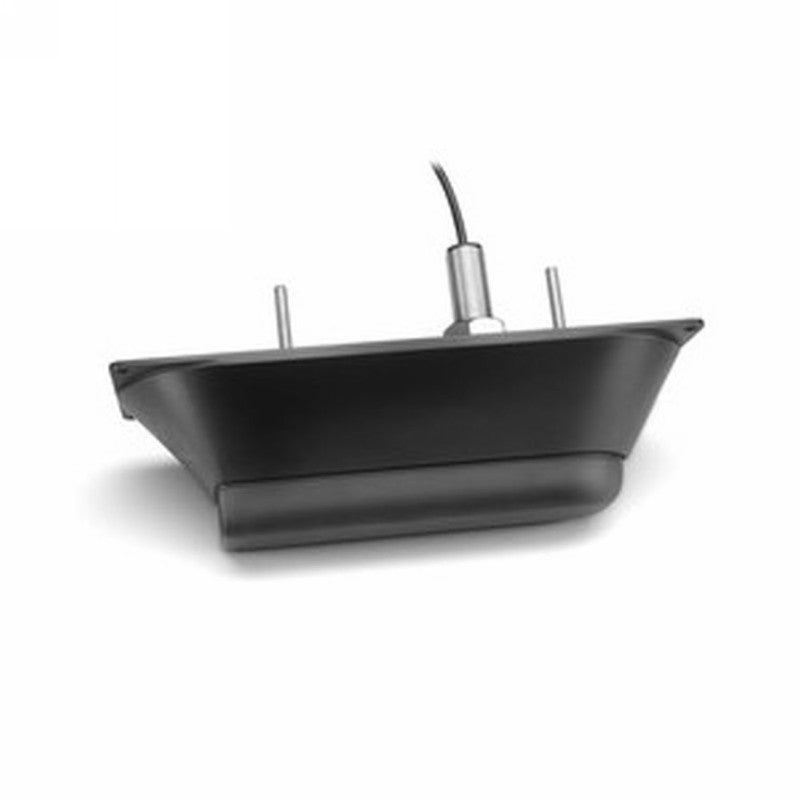

Garmin GT23M-TH - Stainless Steel Thru-Hull Mount Transducer - 8 Pin

Garmin GT23M ~TH ~ Stainless Steel, Thru ~Hull Mount Transducer, Mid ~Band CHIRP 80 ~160 kHz, 600 W CHIRP DownVu 260 455 kHz, 500 W 8 ~pin

GT23M ~TH transducer is perfect for coastal and offshore fishermen who want CHIRP traditional sonar and CHIRP DownVu scanning sonar. This thru ~hull mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.

The 8 ~pin transducer features mid ~band CHIRP traditional sonar 80 ~160 kHz and has a power rating of 600 W. The CHIRP DownVü 260 455 kHz element has a power rating of 500 W.

For installation, follow the included instructions carefully to avoid damaging your boat.

In the box:
GT23M ~TH transducer
Stainless steel stem
Fairing block
Isolation plate and bushings
Extension cable
Mounting hardware
Documentation

Weight: 4.82 lb 2.19 kg
Cable length: 30 ft
Number of pins on connector: 8
Dimensions: Transducer: 9.0 x 2.4 x 1.6 in 228 x 62 x 41 mm , Transducer Stem: diameter 1.0 x 5.3 in 24 x 135 mm
Fairing block: 12.7 x 4.6 x 2.5 in 323 x 116 x 64 mm
Frequency: Traditional: CHIRP 80 ~160 kHz, DownVu: CHIRP 245 ~275 kHz and CHIRP 445 ~465 kHz
Transmit power: Traditional: 600 W, DownVu: 500 W
Max Depth: Traditional: 1,800 ft, DownVü: 1,000 ft, Beam Width degrees LF HF ~3dB :
Traditional: 24 13
DownVu: 2.0x51at260, 1.4x29at455
Read water temperature: Yes

Note: This is 8 Pin ~ you may need an apator cable for your unit.

No.of Pins: 8
