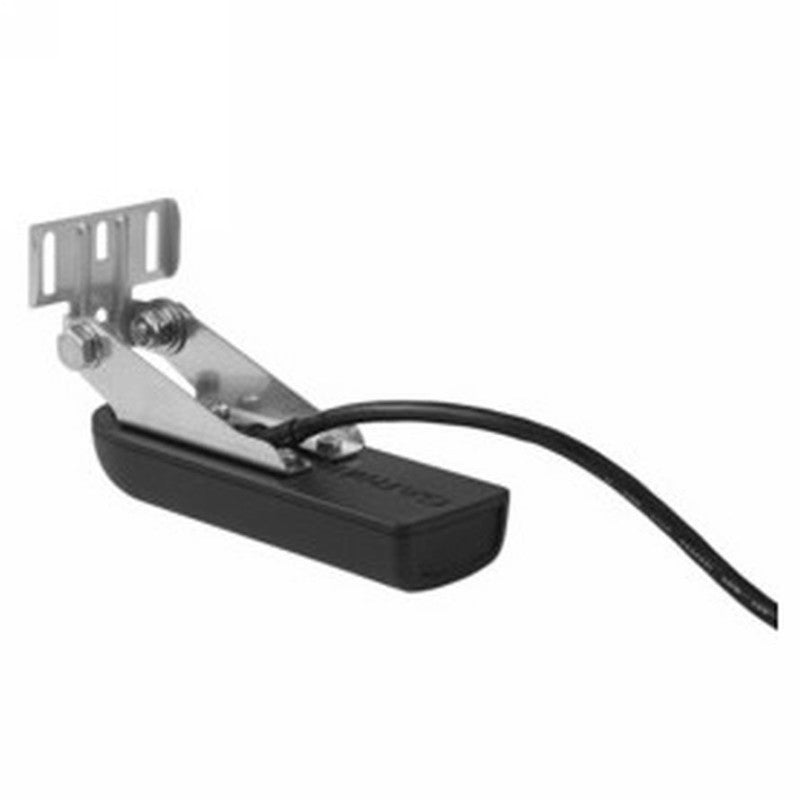

Garmin GT22HW-TM Plastic Transom or Trolling Motor Mount Transducer - 8 Pin
Garmin GT22HW ~TM Plastic, Transom or Trolling Motor Mount Transducer, High Wide CHIRP 150 ~240 kHz, 250 W /CHIRP DownVu 455/800 kHz, 350 W 8 ~pin
Part Number: 010 ~12403 ~00
GT22HW ~TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP DownVu scanning sonar. This transom or trolling motor mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.
The 8 ~pin transducer features high wide band CHIRP traditional sonar 150 ~240 kHz and has a power rating of 250 W. The CHIRP DownVu 455/800 kHz element has a power rating of 350 W.
GT22HW ~TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.
Frequency CHIRP High Wide 150 ~240 kHz; ClearVu CHIRP 455 kHz 425 ~485 kHz and 800 kHz 790 ~850 kHz
Power CHIRP Traditional 250 W; ClearVu 350 W
Beamwidth Traditional 24 ~16; ClearVu 2.0x50 at 455 kHz and 1.0x30 at 800 kHz
Maximum depth Traditional: 800 ft.; ClearVi: 500 ft.
Depth/Speed/Temperature Depth and Temperature
Number of pins 8 ~pin
Cable length 20 ft.
Supported deadrise/Transom angles 0 ~70 degree transom
No.of Pins: 8
Part Number: 010 ~12403 ~00
GT22HW ~TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP DownVu scanning sonar. This transom or trolling motor mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.
The 8 ~pin transducer features high wide band CHIRP traditional sonar 150 ~240 kHz and has a power rating of 250 W. The CHIRP DownVu 455/800 kHz element has a power rating of 350 W.
GT22HW ~TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.
Frequency CHIRP High Wide 150 ~240 kHz; ClearVu CHIRP 455 kHz 425 ~485 kHz and 800 kHz 790 ~850 kHz
Power CHIRP Traditional 250 W; ClearVu 350 W
Beamwidth Traditional 24 ~16; ClearVu 2.0x50 at 455 kHz and 1.0x30 at 800 kHz
Maximum depth Traditional: 800 ft.; ClearVi: 500 ft.
Depth/Speed/Temperature Depth and Temperature
Number of pins 8 ~pin
Cable length 20 ft.
Supported deadrise/Transom angles 0 ~70 degree transom
No.of Pins: 8
