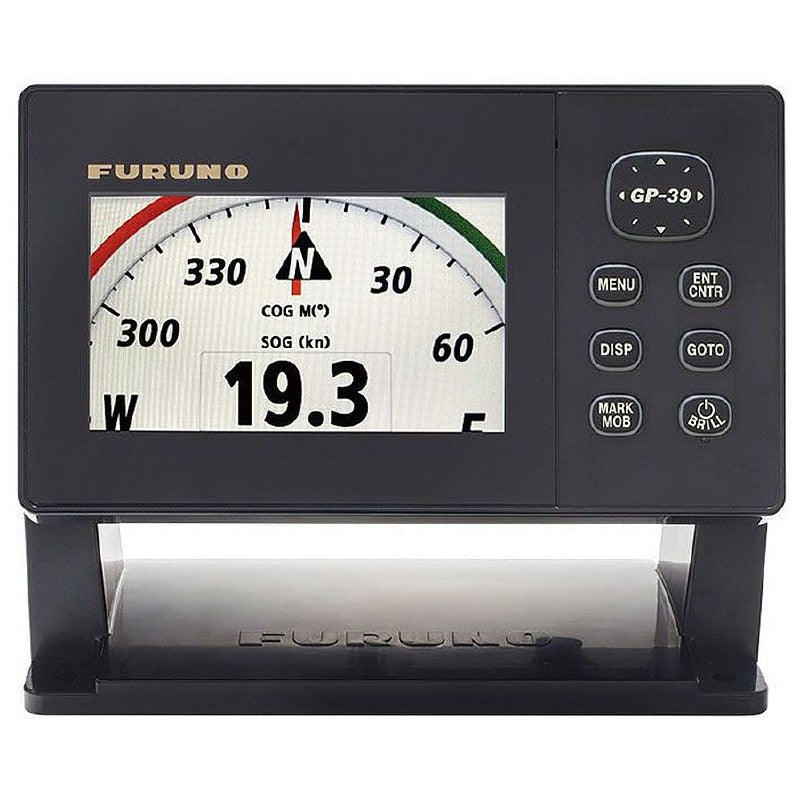

Furuno GP-39 GPS Navigator

Highly accurate position fixing GPS navigator with clear colour LCD.

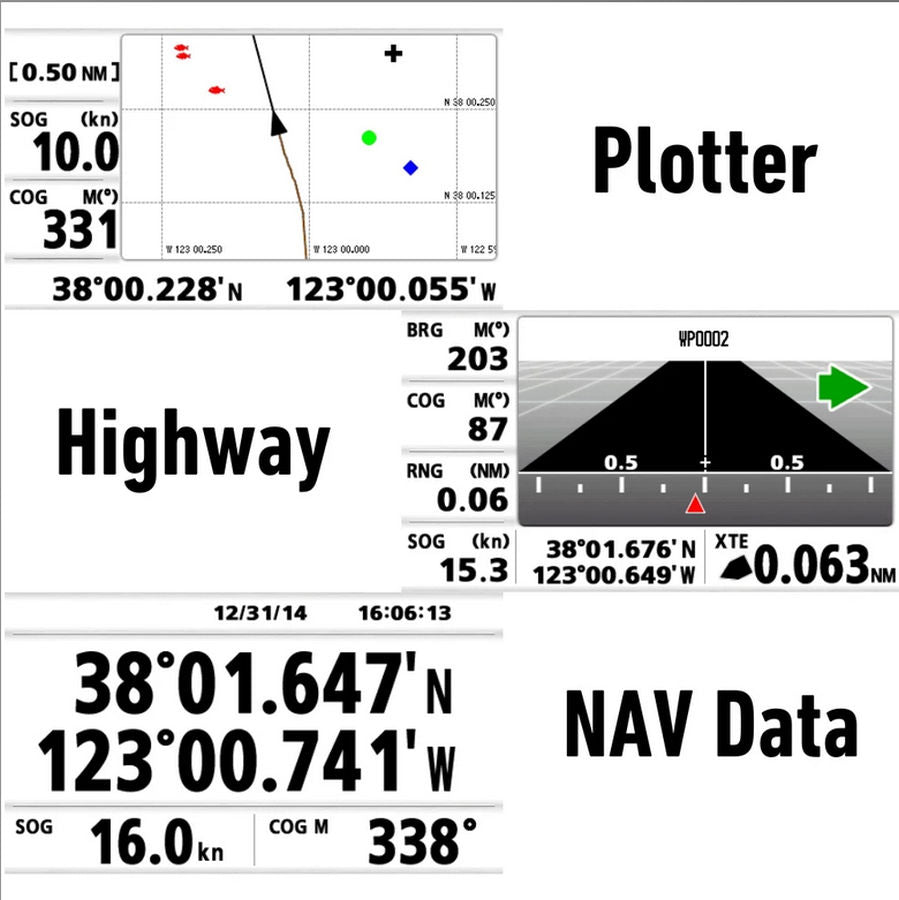

The FURUNO GPS Navigator GP~39 provides accurate and reliable position fixing, thanks to a 12 channel GPS receiver combined with integrated SBAS WAAS/EGNOS/MSAS technology. The GP39 has various display modes Plotter, Highway, Steering, NAV data, Satellite monitor and 2 user customizable modes on the 4.2inch colour LCD. Up to 3,000 points of ship track, 10,000 waypoints and 100 routes each with up to 30 waypoints can be stored.

The waypoint and route data can be exported/imported via a USB flash drive or signal converter. The GP 39 can be networked with a fish finder, sonar, radar or other navigation equipment for feeding highly accurate navigation data.

Features
GPS core delivers enhanced position fixing accuracy.
4.2inch high resolution colour LCD.
Storage for 3,000 track points, 10,000 waypoints and 100 routes.
SBAS capable for better positioning calculations.
Share and display position information on networked equipment such as a fish finder, sonar, radar, etc.
Waypoint and route data can be exported/imported via a USB flash drive or signal converter.
Multi language ready : English, French, Spanish, Chinese, Vietnamese, Malay, Indonesian and Thai.
Easy to mount on/off the bracket.
The improved hanger allows the display unit to be mounted or un mounted easily. The display unit can be carried in the bag standard supply.
The GP 39 delivers the position information to an interfaced fish finder or sonar. Also, the GP 39 receives the TLL Target Latitude/Longitude
fsentence from networked fish finders or sonars and can display the received information. This allows you to mark fish school locations easily.
Waypoint, route data and setting information can be exported/imported via a USB flash drive between GP 39 units. The waypoint and route data in GP 32 can be
transferred to GP 39 by means of signal converter. You can backup information, or share useful information between vessels.
The improved hanger allows the display unit to be mounted or un mounted easily. The display unit can be carried in the bag standard supply.

Specifications
Display Unit
Screen Type: 4.2inch Color LCD
Screen Resolution: 480 V x 272 H pixels
GPS Antenna: External
Display Modes: Plotter, Highway, Steering, NAV Data, Satellite monitor, User Display Digital, Speedometer, COG
Language: English, French, Spanish, Chinese, Vietnamese, Malay, Indonesian, Thai
GPS / SBAS WAAS/EGNOS/MSAS
Receiving Type: GPS: 12 channels parallel, 12 satellites tracking, C/A code, all in view, SBAS: 2 channels
Receiving Frequency: L1 1575.42 MHz ± 1.023 MHz
Accuracy: GPS: 10 m 95percent of the time, HDOP≤4, WAAS: 3 m 95percent of the time, HDOP≤4, MSAS: 7 m 95percent of the time, HDOP≤4
PLOTTER
Memory Capacity: 3,000 ship's track points, 10,000 waypoints with comments, 100 routes with 30 waypoints/route
OTHERS
Waterproofing: Display unit: IP55, Antenna unit: IP56
Power Supply: 12 ~24 VDC : 0.7 to 0.3 A
Weight: 0.86 kg Bracket mount
