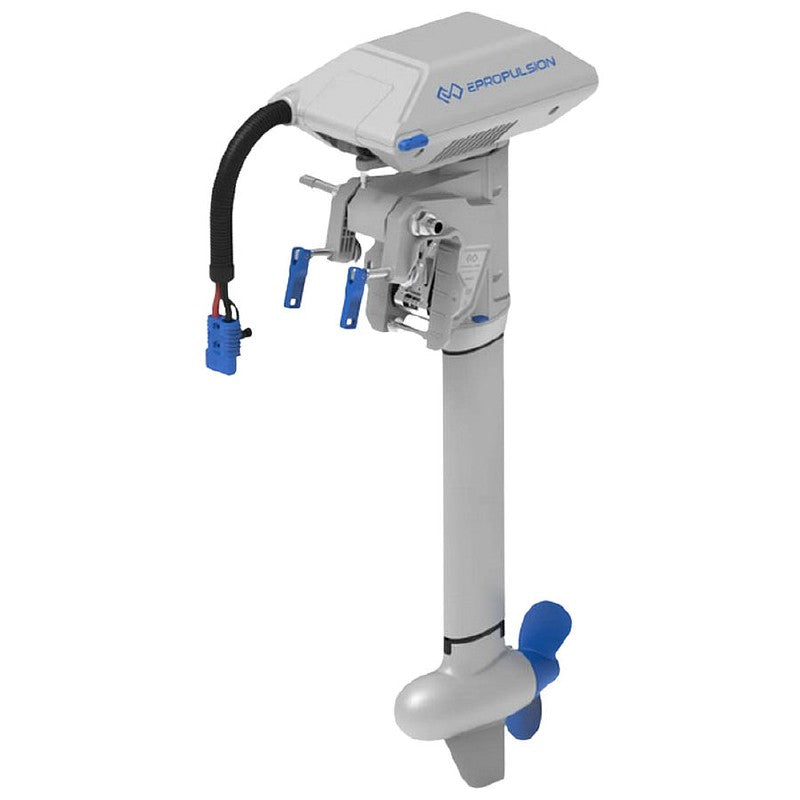

ePropulsion Navy 3.0 Evo Short Shaft Electric Outboard Motor

Navy Series is the backbone of ePropulsion electric outboard motors. It provides efficient and clean power for aluminum fishing boats, dinghies, daysailers and cruising sailboats, suitable for saltwater and freshwater. Thanks to the direct ~drive technology, the Navy electric outboard boat motor is quiet, Low Maintenance, and reliable.

Build Your Navy System
It’s easy and flexible to build a Navy electric outboard system that satisfies different needs.

Choose Your Motor
Choose Your Control
Choose Your Battery

Note: The standard charger of the E Series battery is purchased separately. It’s a unified charger that works with E40, E80 and E175. For fast charging, you could use two or more chargers in parallel connection.

Incredible Range Navy Series electric outboard motors are impressively efficient to go further and faster.

Specs Navy 3.0 Evo

Power3 kW
Input voltage 39V to 60V
Recommended Battery ePropulsion E Series Battery
Motor Weight *24.3 kg / 53.6 lbs
Propeller 10.2inch × 6.7inch 2 blade composite propeller
Trim / Tilt Angle 0°, 5°, 10°, 15° / 60°
Shaft Length Short or Long
Control Evo Tiller / Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control
Hydrogeneration Yes
Brushless DC motor
Direct Drive Yes
* The weight is measured with the short shaft version.

Warranty: Standard warranty is 2 years, plus free 1 year extended warranty if customer registers online via the ePropulsion website
